SECTION 3: MW8EBF, MW12EBF (CONNECTING THE CHILLER)

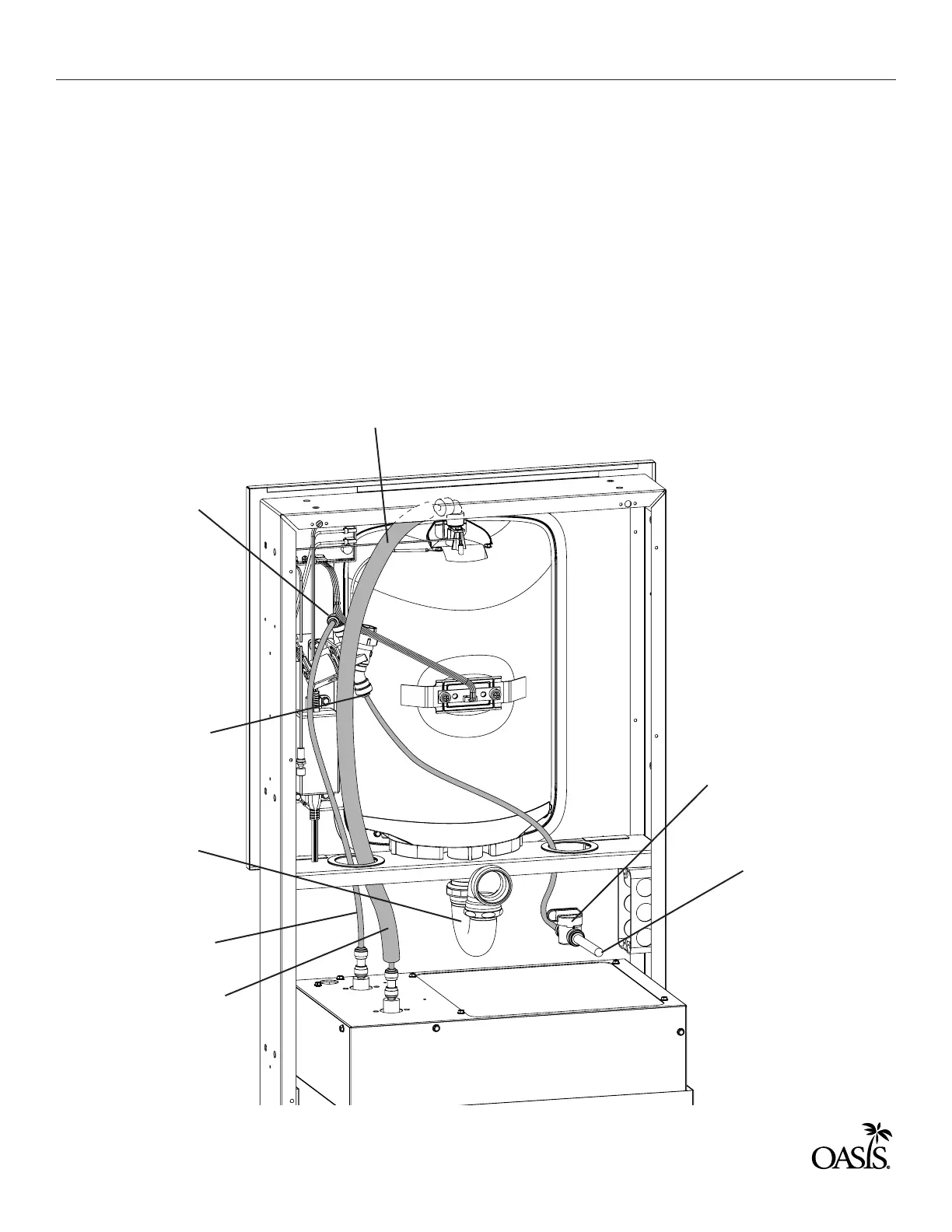

Solenoid Valve
Out
Solenoid Valve
In
Not Included
Chiller Water in
Chiller Water Out
Provided Ball Valve
and 3/8” O.D. copper
to building water
supply
Insulated Tube
Connections to Filler
Fitting
Strainer Inside
A.
B.
C.
D.
Attach cradle to frame per rough-in drawing. (Screws Provided - 4)
Place chiller in frame.
Install 1/4” union fittings on chiller inlet and outlet.
Connect water line from bottle filler solenoid valve out to chiller water in. Connect chiller
water out to bottle filler delivery fitting. Note: squeeze ends of tubes back to round shape
as needed after cutting.
