SECTION 5: TRIM BEZEL INSTALLATION (FOR SURFACE MOUNT MODELS)
A.
B.
C.
D.
A.
B.
Install frame assembly to a flat surface. Use appropriate fastening hardware (not
included). Refer to rough-in for correct installation height.
Remove Bottom Plate from Trim Bezel (4 screws)
Install Trim Bezel around the Frame Assembly and replace Bottom Plate with screws.
Place drip tray in frame but do NOT fasten in place. Do NOT place grille on tray at this
time. Install Snap Bushing and any other accessories included.
Uncoil EBF push button wire lead and route through same opening opening in frame as
the tubing.
Install Upper and Lower Front Panel. Install drip tray grille using 3 flathead screws,
provided.

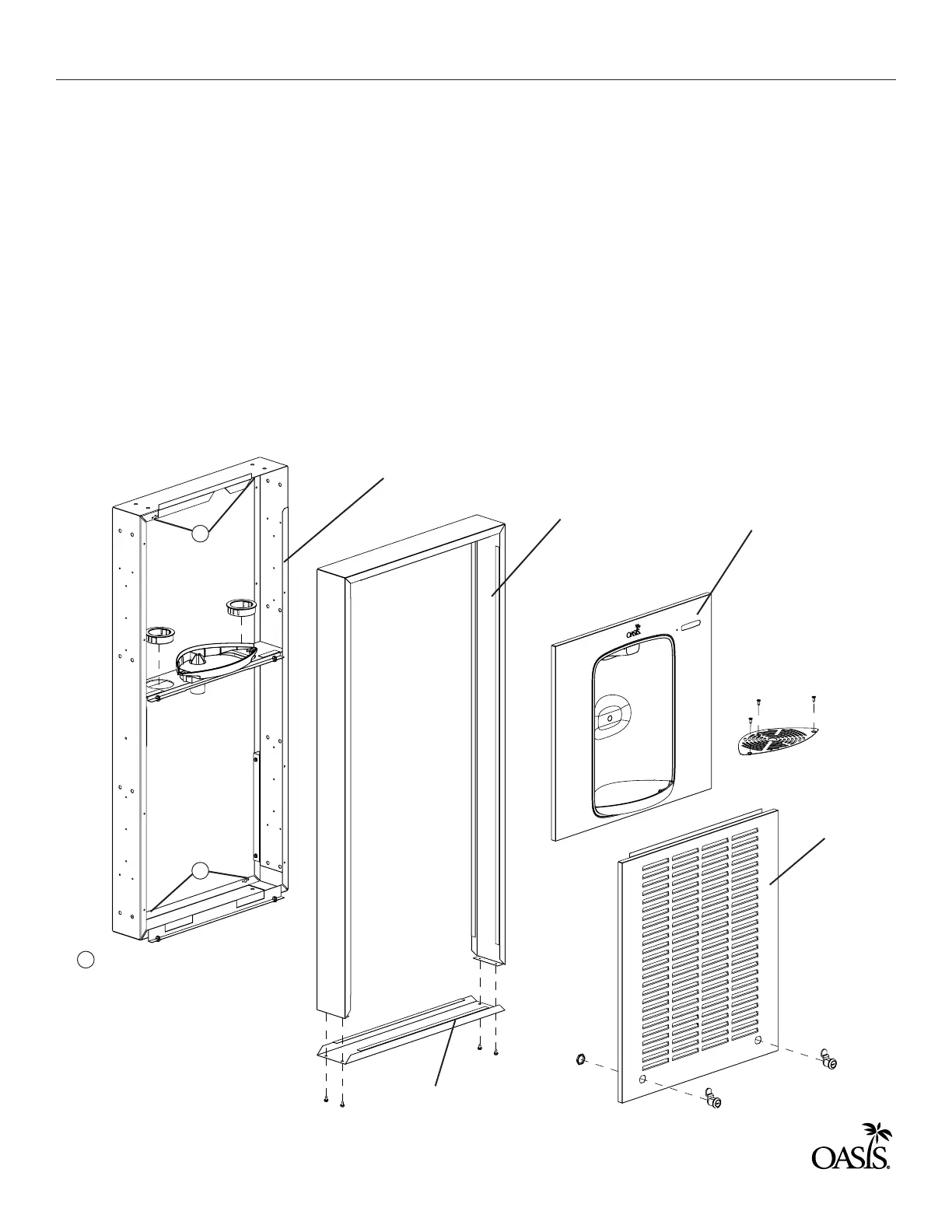

Frame
Assembly
Trim Bezel
Upper Front
Panel
Lower Front
Panel
Trim Bezel
Bottom Plate
with Screws
Fastening points on frame
(four, 5/16” mounting holes
on top and bottom rear
flanges
*
*
*
*
*
*
