Oasis Modular Series User Manual

8

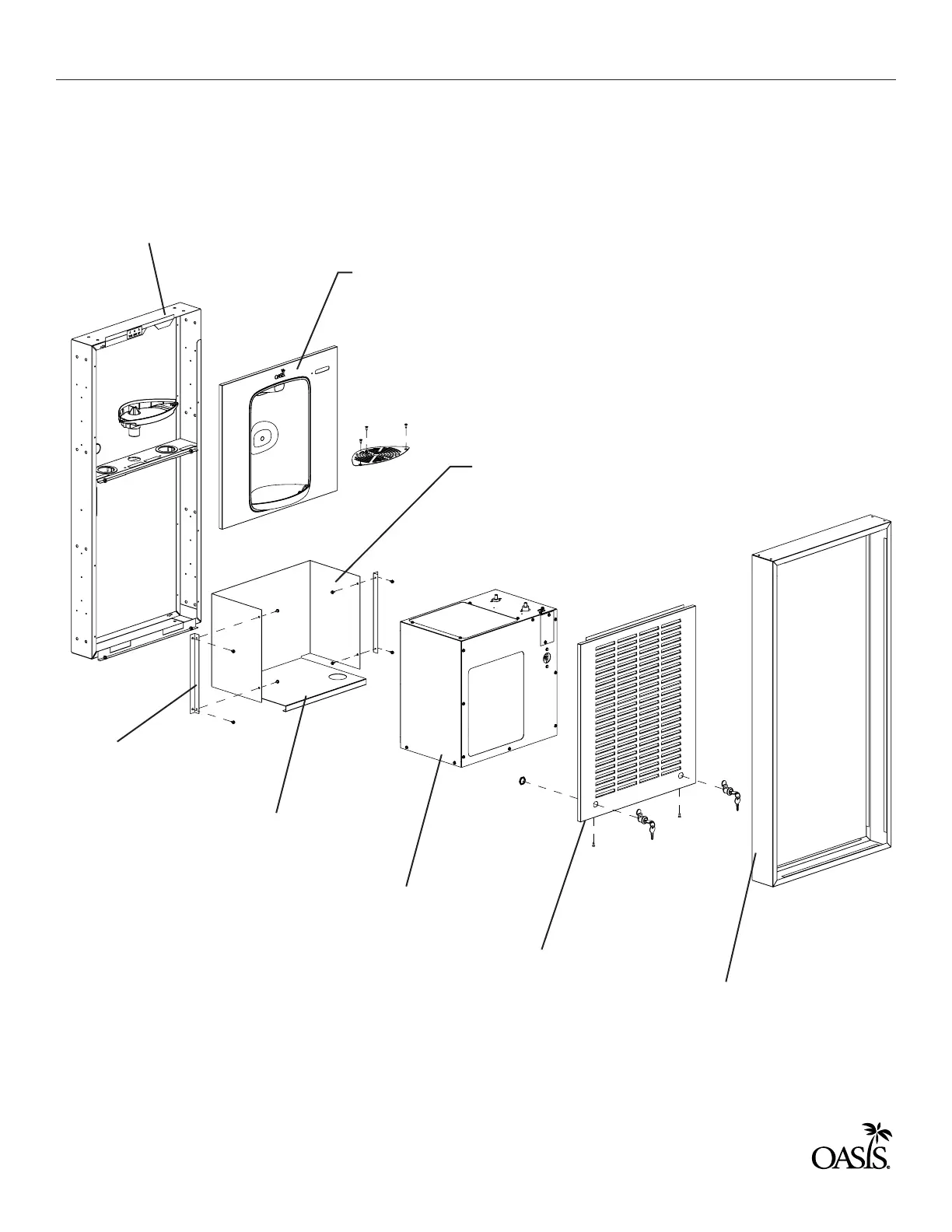

SECTION 1: BOTTLE FILLER ASSEMBLY WITH CHILLER OVERVIEW
Wall mounting frame secures
into wall with face flush to
the finished wall.
Upper front panel mounts to
frame with bottom screws.
Cooling Unit
mounting cradle
Cradle mounting
angles
(2 provided)
Cooling Unit mounts
inside cradle.
Lower Front Panel mounts
to frame with bottom
screws or optional locks
(2 provided)
Trim Bezel - accessory on
surface mount models only:
MWSMEBF, MWSM8EBF,
MWSM12EBF
(See page 11)
Secure cradle mounting angles
to frame flange using screws
provided. Do not tighten screws.
Slide cradle between angles and
attach to angles with screws
provided. Tighten all screws.
