2-5/8
[67]
TYP
TYP
1-1/4
[32]
10-1/8
[257]
20-5/16
[516]
24-3/8
[644]
23-3/8
[594]
7.00
[178]
FLOOR LINECHILLER (SEE NOTE 5)
DRAIN LOCATION
(IF APPLICABLE)
WATER INLET
LOCATION
5/16[8] DIA. MOUNTING HOLES,
2 TOP AND 2 BOTTOM
19-7/8
[505]
41-5/16
[1049]
7
[178]
3-9/16
[90]
BOTTLE FILLER
JUNCTION BOX
(SEE NOTE 4)
1/2
[13]
7-13/16
WALL OPENING DEPTH
FOR CHILLER
[198]
2
[51]
5-21/32
[143]
WALL LINE
24-27/32
[631]
WASTE DRAIN
HEIGHT
3-1/2
[89]
FRAME ASSY
WITH BEZEL
FURNISHED
1-1/4 TAILPIECE
1-1/2 OR 1-1/4
IPS WASTE
STUB OUT
1/4 OR 3/8 OD TUBE
WATER INLET
THROUGH WALL
13
[330]
VERSAFILTER III
(IF APPLICABLE)
VERSAFILTER III
NOTES:
RECOMMENDED ADULT HEIGHT INSTALLATION SHOWN. ADJUST VERTICAL
DIMENSIONS AS REQUIRED TO COMPLY WITH FEDERAL, STATE AND LOCAL
CODES.
STOP VALVE, TRAP, PIPE CONNECTOR TO WASTE LINE NOT PROVIDED. SHORT
RADIUS TRAP REQUIRED.
ALL DIMENSIONS ARE IN INCHES. DIMENSIONS IN [ ] ARE IN MILLIMETERS.
115V GROUNDED NORTH AMERICAN DUPLEX RECEPTACLE REQUIRED. THIS
DRINKING WATER COOLER IS INTENDED TO BE CONNECTED TO A 20A
MINIMUM GROUND FAULT CIRCUIT INTERRUPTING (GFCI) DEVICE TO MEET
UL REQUIREMENTS.
CHILLER, IF APPLICABLE, MUST BE ADEQUATELY SUPPORTED BY SOMETHING
OTHER THAN THE FRAME.
FILTER INSTALLATION LOCATIONS WILL VARY BY MODEL.
4 .
5.
6.
1
.
2 .
3 .
7

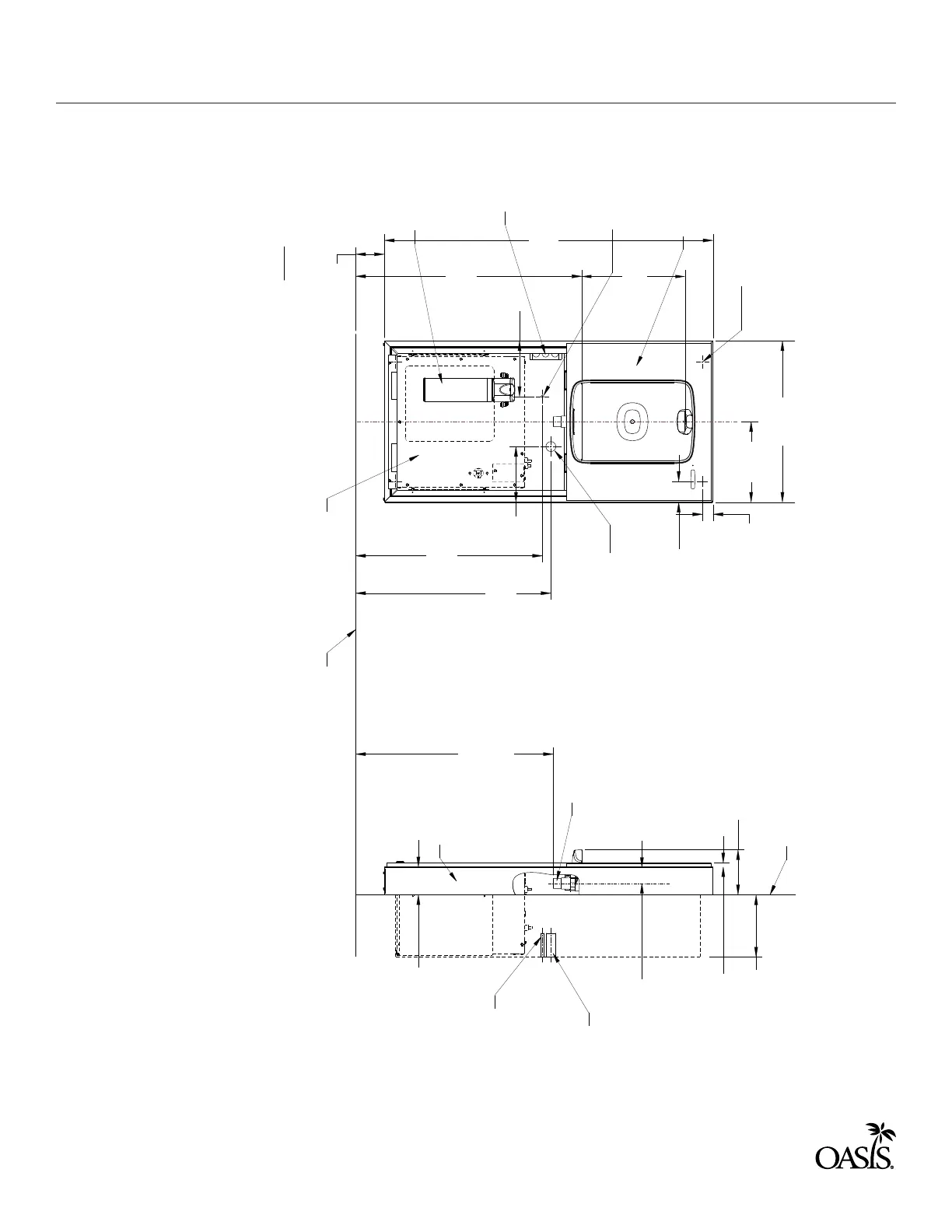

OASIS AQUA POINTE® SURFACE MOUNT ELECTRONIC BOTTLE FILLER MODELS MWSMEBF,
MWSM8EBF, MWSM12EBF
