SECTION 2: INSTALLATION
STEP 1: INSTALL MOUNTING FRAME
STEP 2: MWEBF (WITHOUT CHILLER ONLY)
Drip Tray
Solenoid
Valve Out
Solenoid
Valve In
Provided Ball
Valve and 3/8”
O.D. Copper to
building water
supply
Snap
Bushings
2x4
Junction
Box
Short Radius
P-Trap
(Not Included)
A.
B.
C.
A.
B.
C.
D.
E.
F.

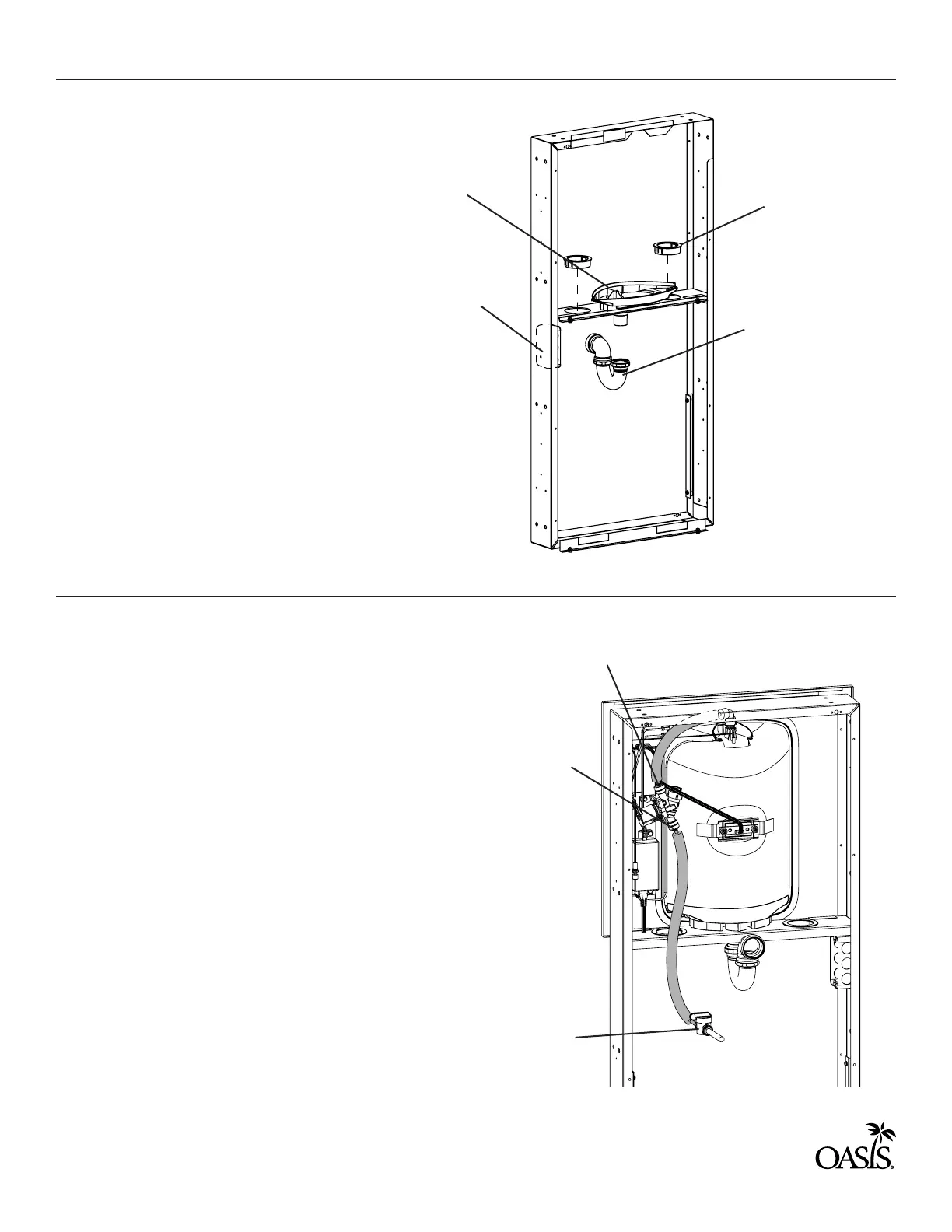

Install Frame per rough-in
drawing. Note: If applicable,
refer to trim bezel installation
instructions on page 11 before
continuing with step 1B.
Place drip tray in frame but do
NOT fasten in place. Do NOT
place grille on tray until last step
(Section 6).
Install snap bushings.
Install provided ball valve and
3/8” O.D. copper tube to building
water supply.
Install tubing as shown before
mounting the panel assembly.
Uncoil EBF push button wire lead
and route through same opening
in frame as the tubing.
Install upper panel assembly
(screws provided)
Install lower louver panel using
supplied locks or screws.
Install drip tray grille using 3
flathead screws, provided.
