Observator Instruments OMC-183-ML User Manual

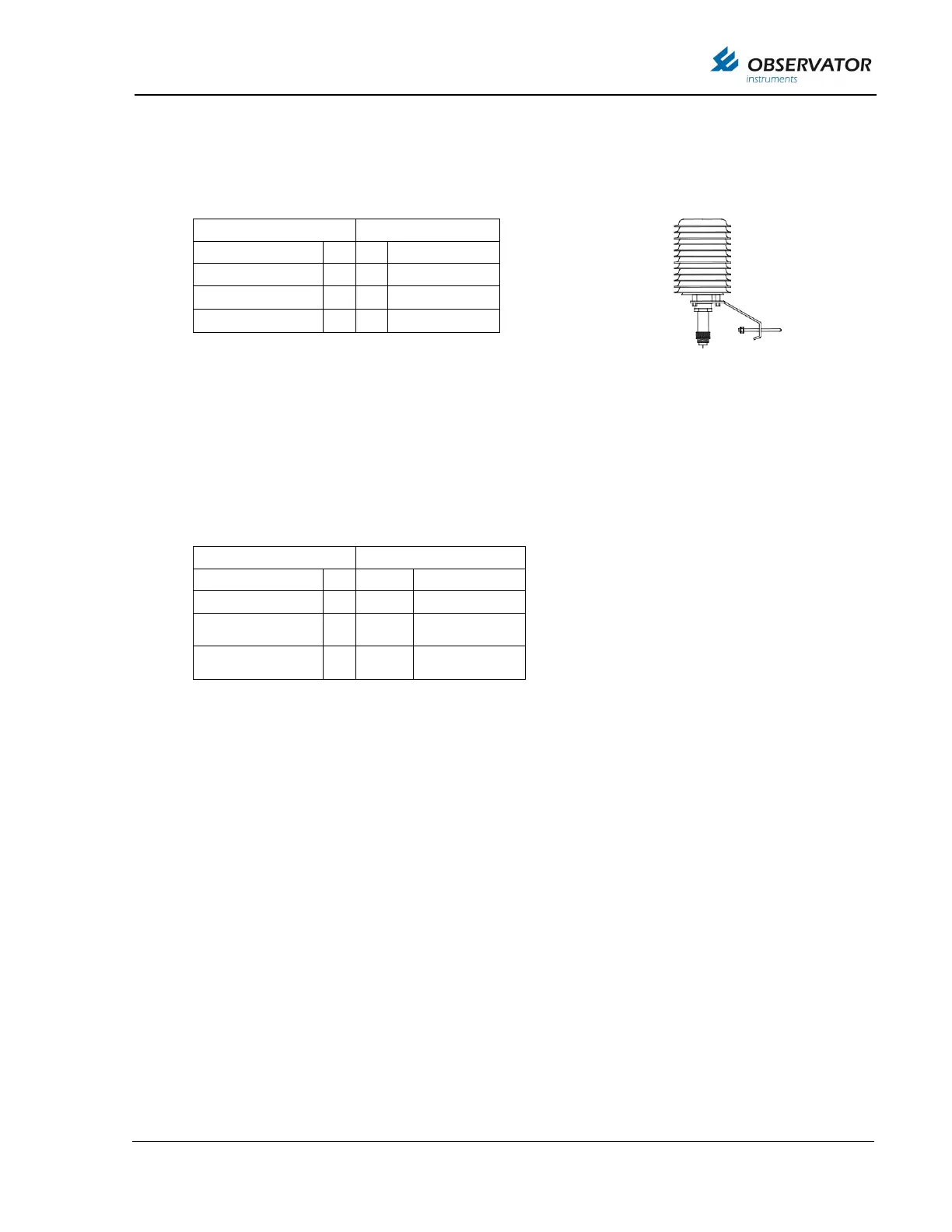

OMC-183-ML Manual Page 10
2.6. OIC-406 Temperature & Humidity sensor.
The OIC-406 has NMEA output. Connecting the basic node to OMC-183-ML is possible
by using NMEA1 IN or NMEA2 IN.
2.7. OMC-406 Temperature & Humidity sensor.
The old OMC-406 is a less accurate sensor, and got two 4-20mA analog outputs. These
signals can be connected to OMC-183-ML by using two of the analog current input ports
for example current inputs 2 & 3:
Recommended cable: shielded 2x2x0,75mm2 twisted pair
OMC-183-ML
OIC-406 (NMEA)
GND [SUP]
13
1
GND [SUP]
SUPPLY
14
2
SUPPLY
NMEA2_IN_A
15
3
NMEA_OUT_A
NMEA2_IN_B
16
4
NMEA_OUT_B
OMC-183-ML
OMC-406 (4-20mA)
GND
62
Yellow
Power GND
SUPPLY
61
Green
Power +24V
0-24 mA INPUT 2
60
Brown
4-20mA out
(temperature)
0-24 mA INPUT 3
63
White
4-20mA out
(humidity)
