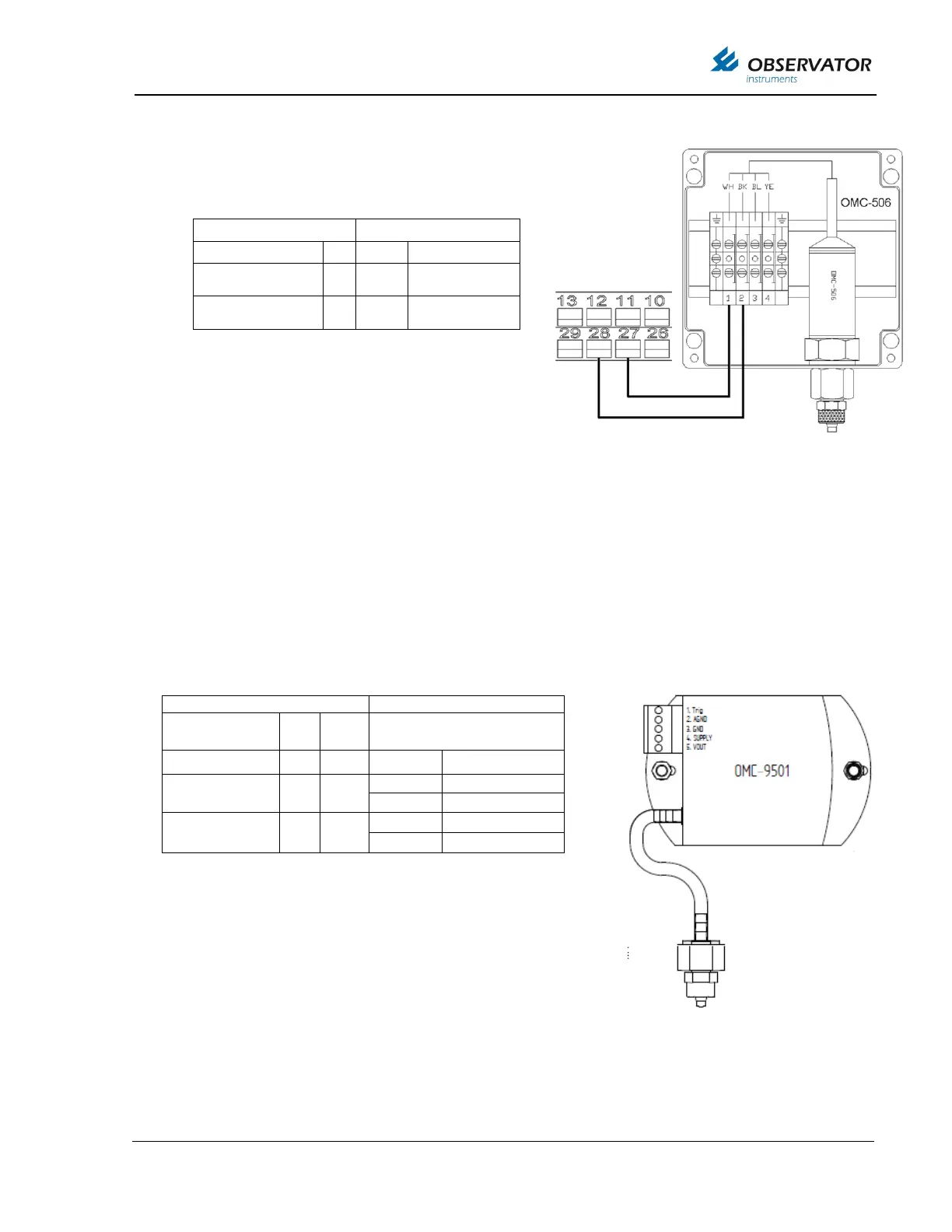

2.8. OMC-506 Single Barometric pressure sensor. (4-20mA)
Recommended cable: shielded 2x0,75mm2 twisted pair
The sensor can be build in the same housing
as the OMC-183-ML
Connections of sensor wires are identical.
2.9. OMC-9501 Barometric pressure sensor(s). (0 - 2.5V / 0 -5V)
OMC-183-ML
OMC-9501
Sensor
1
2
V_IN
66
69
VOUT
V out
GND
67
70
GND
Power GND
AGND
Analogue GND
SUPPLY
68
68
TRIG
Trigger
Supply
Supply
OMC-183-ML
OMC-506
GND [SUP]
26
SUPPLY
27
2
Black
Power 12-24V
0-24mA_IN_1
28
1
White
4-20 mA out
