Ocean Insight FLAME - Page 14

MNL-1012 Rev A
6
PAK50P
DD4
Name
PAK50P
DD4
Name
10
2
External
Trigger In
25
5
Lamp Enable
11
9
GPIO 3
26
14
GPIO 7
12
40
VUSB
27
10
GND
13
17
SPI MOSI
28
NC
Reserved (NC)
14
40
VUSB
29
15
GND
15
19
SPI MISO
30
NC
Reserved (NC)
For the DD4, connect shield to connector case, if shield is included.

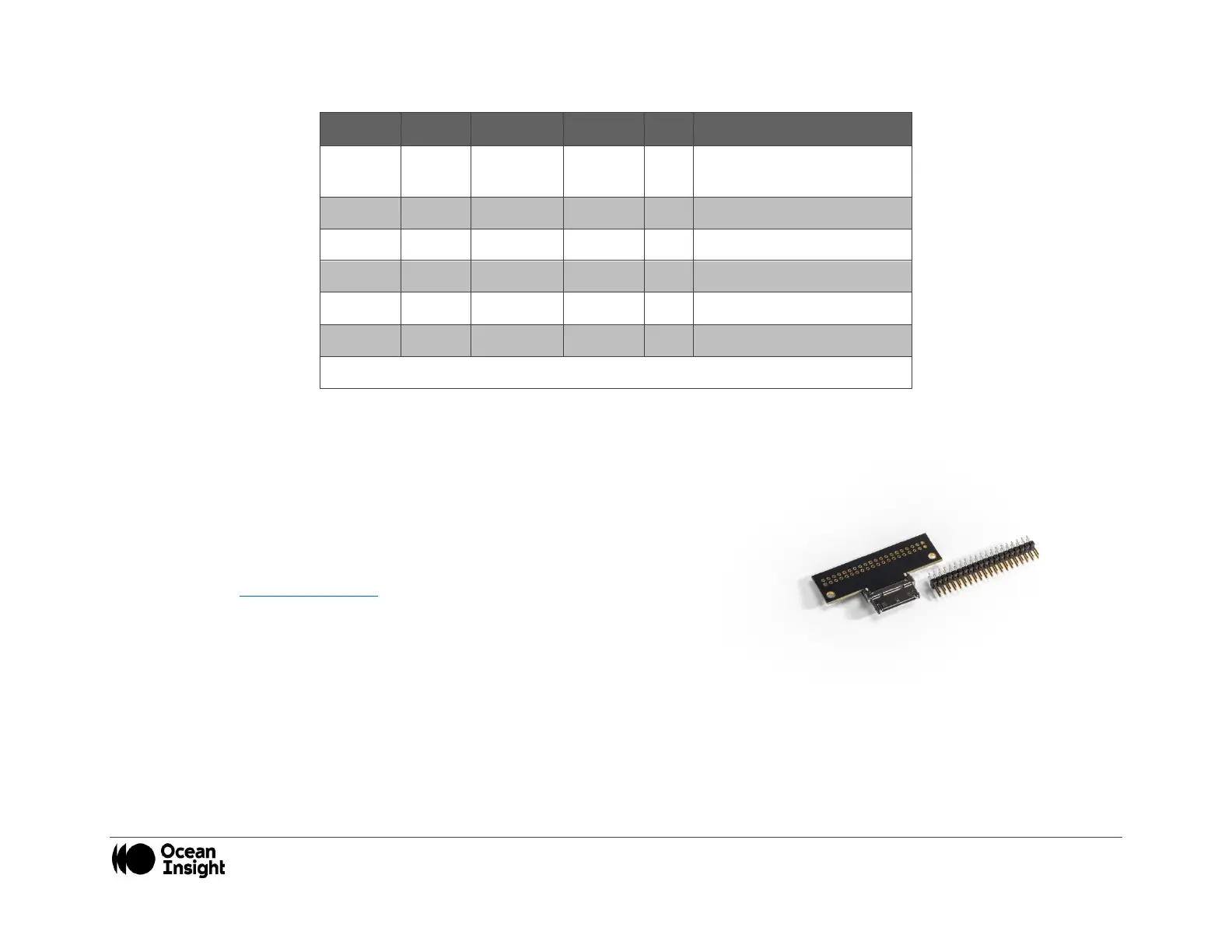

Breakout Box (HR4-BREAKOUT)
The Breakout Box is a passive module that separates the signals from the
Flame’s DD4 40-pin connector to an array of standard connectors and headers,
enabling functionality with a wide range of accessories. In addition to the
accessory connector, the breakout box features a circuit board based on a
neutral breadboard pattern that allows custom circuitry to be prototyped on the
board itself. See OceanInsight.com to access the manual for the Breakout
Box.
