Steam Generator Manual

7.2. Steam Generator Location

The steam generator should be installed in dry well ventilated place in close proximity to the steam

room. It can be placed on the oor or hung on wall.

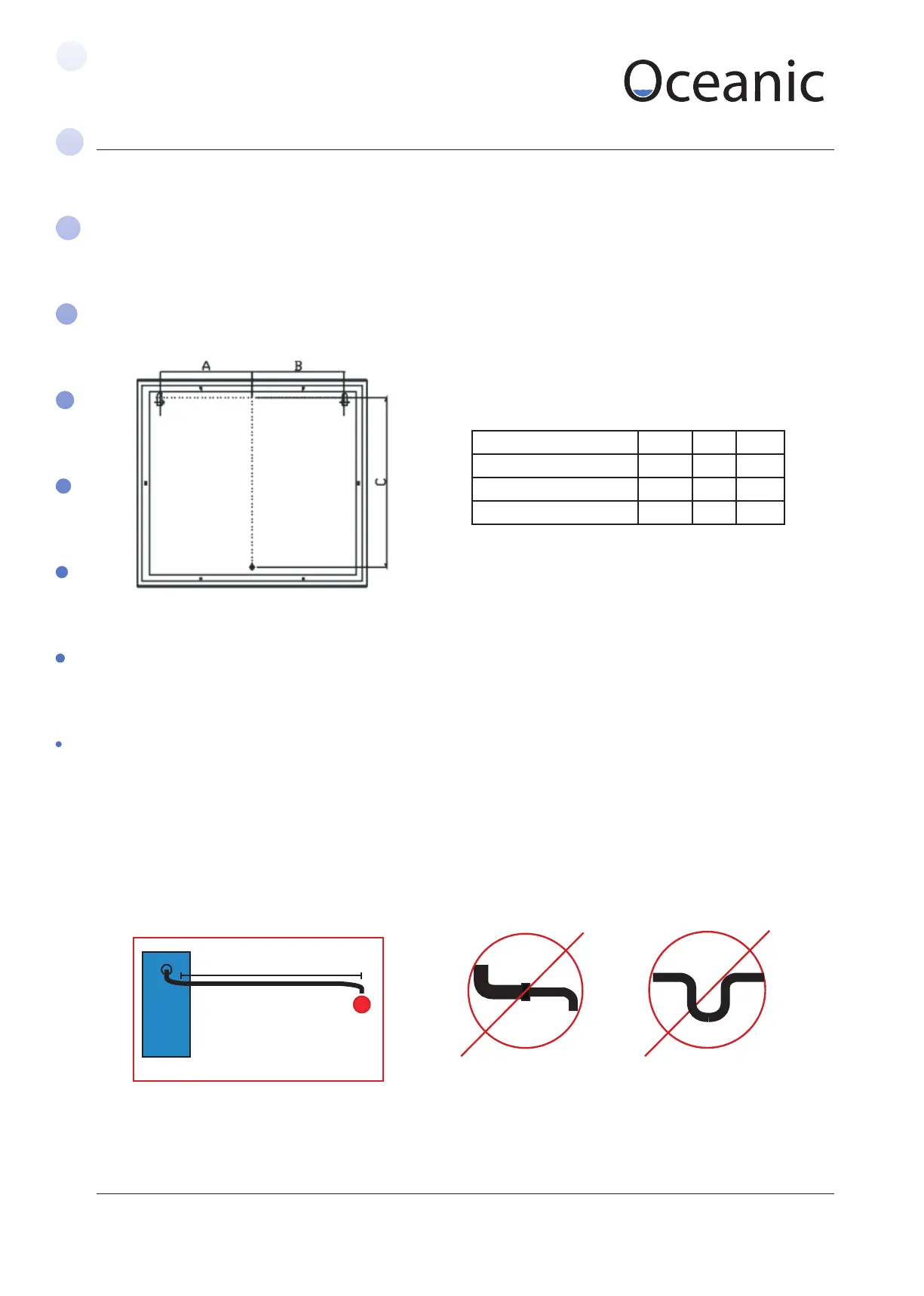

To hang the generator on a wall drill 3 holes 8mm in diameter in accordance with the table below. Fix

the top 2 screws in place rst then hang the generator by the 2 keyhole shaped holes in the back plate.

Then with the front cover removed x the 3rd screw to secure the unit in place.

<10m

The steam generator can be installed anywhere that is dry and has an airow.

Example locations:

• Boxed under bench within steam room

• Cupboard in an adjacent room

• In the loft

• Up to 1.5m beneath the unit in a basement

Important notes:

• The steam pipe should be insulated and not travel further than 10 metres

• Do not reduce size of steam pipe at any point

• the steam pipe must not go down and then up, as this will create a trap and damage the

steam generator.

Model A B C

OC-30 to OC-60 145 145 273

OC-70 to OC-90 175 175 291

OC-100 to OC - 120 145 145 353
