Steam Generator Manual
7.4. Installation for controller and temperature probe.
OC-A controller is waterproof and can be installed inside or outside the steam room according to
customer preference.
i. For a better connection and to eliminate any future connection problems spray connection
uid or aerosol oil spray on the pins of the PS/2 cable(5pin cable) before plugging into the
circuit board.
ii. Ideally the control panel should be installed at a height of approximately 1200mm for ease of
use.
iii. Installation method: Open the front cover of steam generator. Pin the control cable (6 cores)
and temperature sensor cable (2 cores) to the relevant ports.
iv. Control panel installation: pin one end to circuit board ports in steam generator connect the
other end to the controller’s cable.
v. Temperature probe installation: the temperature probe is installed inside the steam room at
approximately 1.2 to 1.5 meters high and away from the steam outlet. Use a 4mm screw x it
in place and then connect to the wire from the controller.

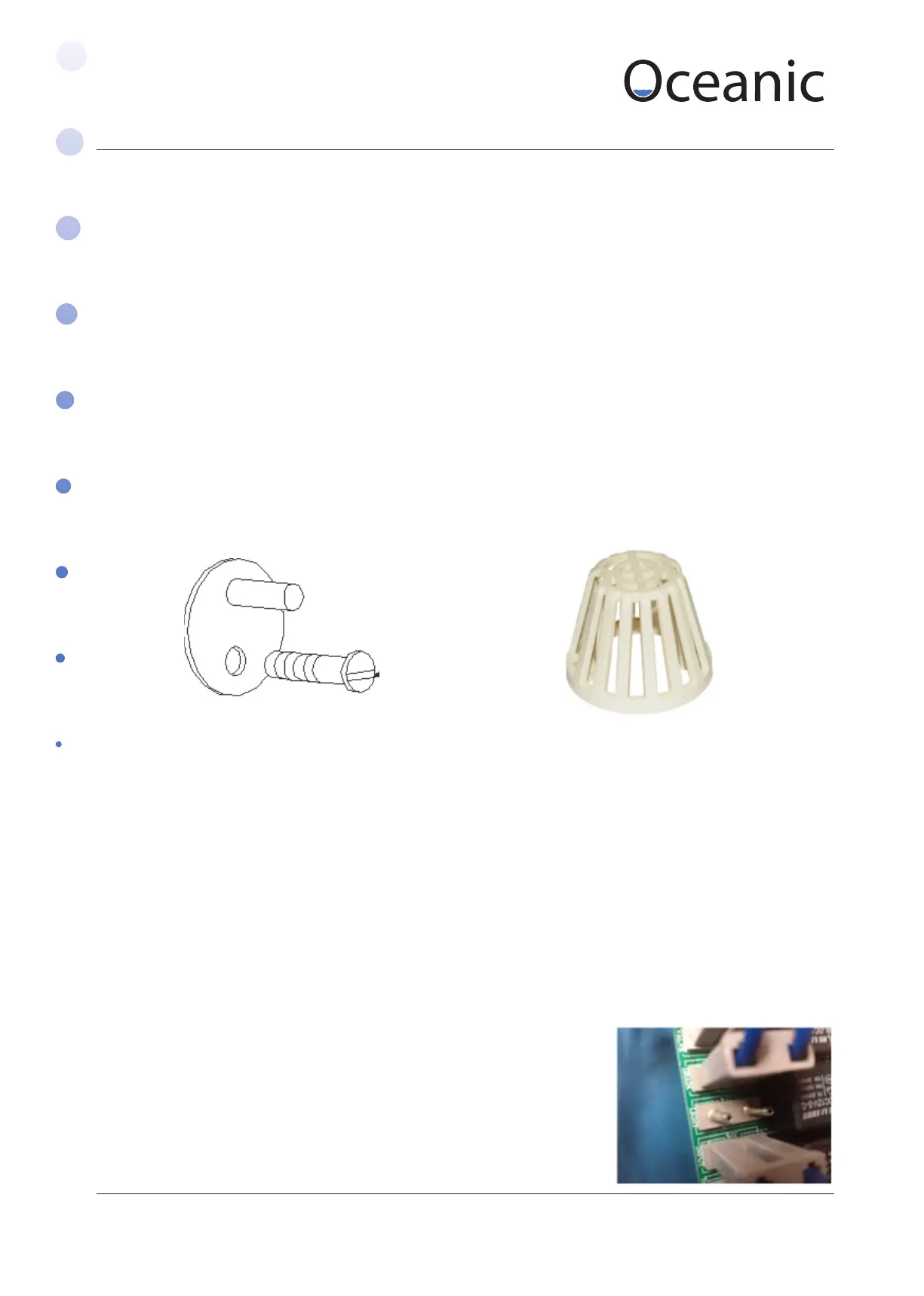

vi. Fix protective cover (supplied) over the temperature
Temperature Sensor
4mm Screw
Cover to protect the temperature sensor
7.5. Installations for power supply and control cable
Conrm the correct voltage of power supply and wires.
Remove the knock out for the power cable entry and use a rubber grommet to protect the cable,
connect to the conductors to the correct terminals – for single phase power supply use the copper
bridge connectors, for 3 phase supply remove them. (Extra bridges can be found it provided)
Remove the knock out for the control cable entry and use a rubber grommet to protect the cable,
connect the cable to the relevant port on circuit board.
Ensure the power supply wire and control cable remain separated to prevent magnetic eld of
power supply wire from disturbing control cable signal.
7.6. Installing a light
i. The steam generator keypad has a light button which switched
a 230v connection on the main circuit board upto 100watts in
power.
ii. - Use the supplied grey connector with two blue wires to connect
to the light empty output on the circuit board labelled “LIGHT”
