Steam Generator Manual
Model A B C D E F G H
OC-40 - 60 390 190 335 25 135 45 72 60
OC-80-90 450 195 353 35 135 45 72 60
OC-10-120 390 206 353 25 135 45 77 60

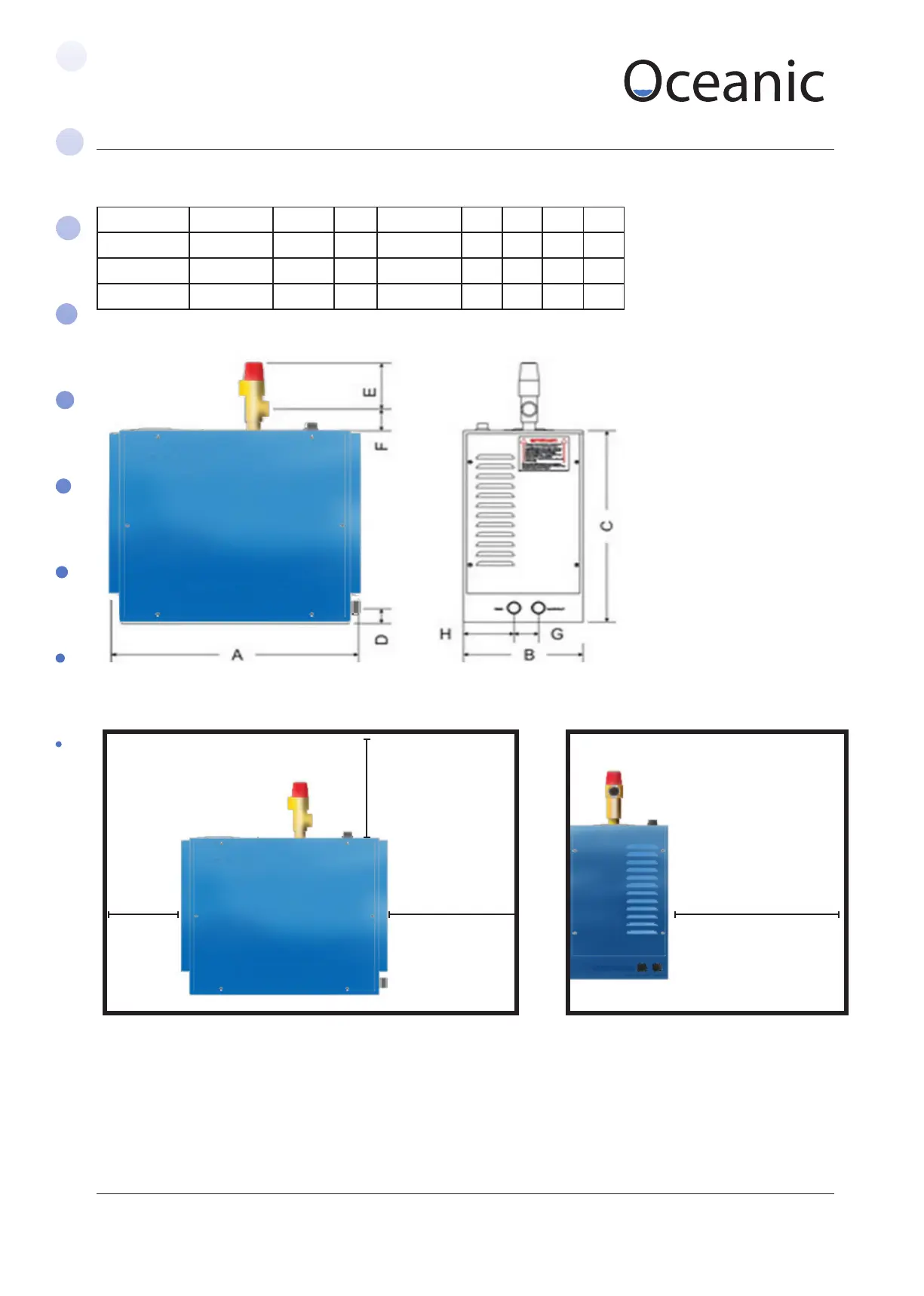

5.2. Steam Generator Frame Sizes
5.3. Clearance distances
5.4. Ventilation
Ensure air ow into area where steam generator is housed.
For commercial use ensure good ventilation from at least two ducts within the housing of the generator
>200mm
>300mm
>400mm
>500mm
