Steam Generator Manual

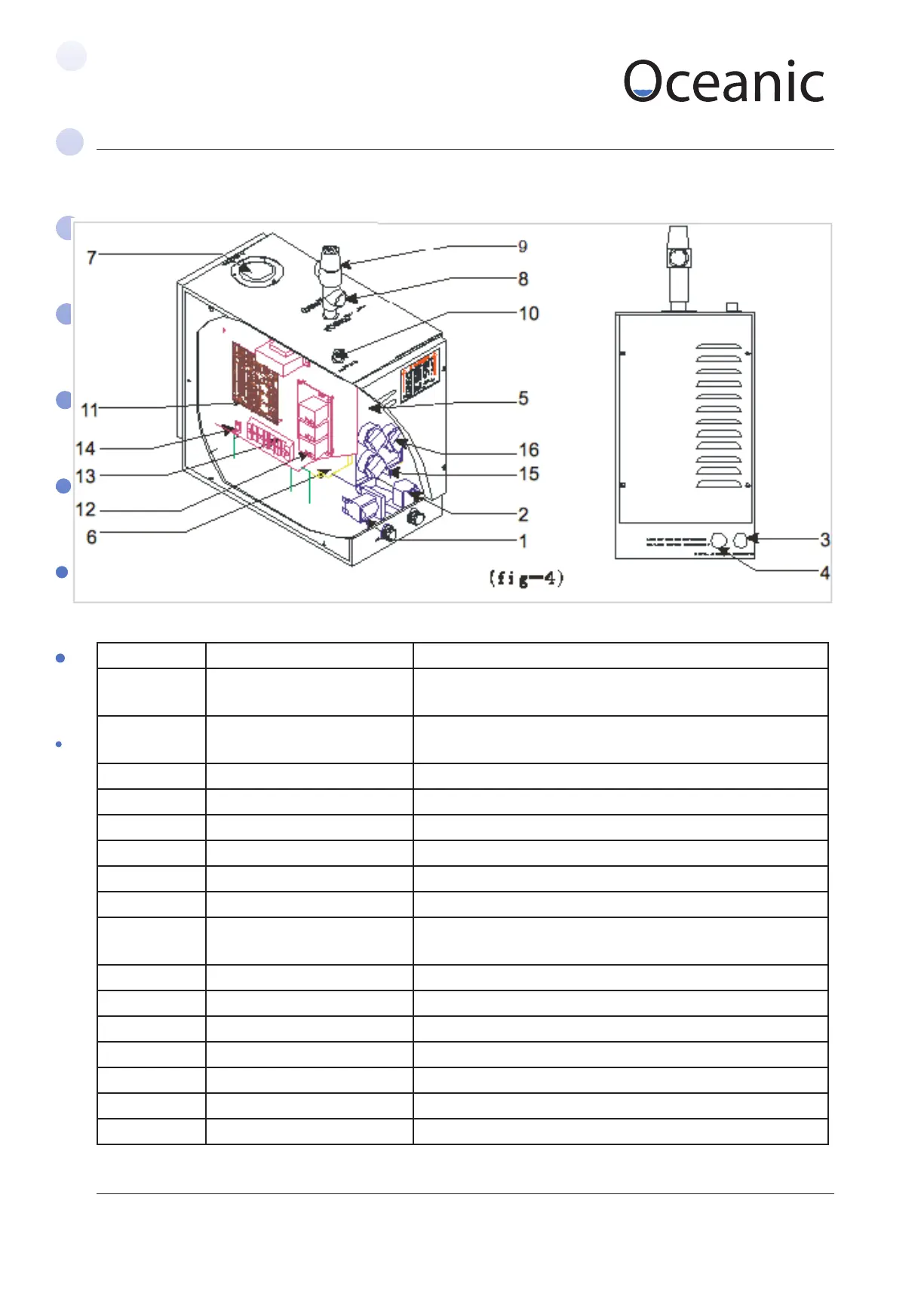

No. Part Description
1 Water inlet valve Automatically controls the water ow (maximum
pressure 1bar)
2 Drain valve Controller by controller. Turn on or turn o to drain
water
3 Power entry The route of power wire
4 Control cable entry The route of control cable
5 Stainless steel tank Boiler
6 Insulation material Reduce the loss of the boiler heat
7 Water lever probe Detect the water level
8 Steam outlet Steam outlet
9 Pressure relief valve Operates if the pressure in the boiler exceeds 1.2kg/
c m2
10 Overheat switch Boil dry protector operates at 105C
11 Main circuit board Control center
12 Accessory circuit board Connect and control the heat element
13 Terminal Connection for power supply
14 Earth wire plug Connection for earth wire
15 Water inlet Water inlet to the boiler
16 Elements Electrical heating elements
5.5. Steam Generator Parts Description
