Figure 40 VHF antenna connection
4.4 Connecting the equipment
With the transceiver, junction box and antenna installed it is now possible to connect the equipment in
preparation for commissioning.
4.4.1 Antenna connections
If antenna connections have not already been made the GPS and VHF antennas should now be connected to
the transceiver. Refer to
Figure 38 and Figure 40 for guidance.
4.4.2 Data connections
The Oceansat transceiver is supplied with a 1m (3.2ft) 50 way data cable for interconnection of the transceiver
and junction box.
Connect the junction box to the transceiver using the data cable as indicated in Figure 41.

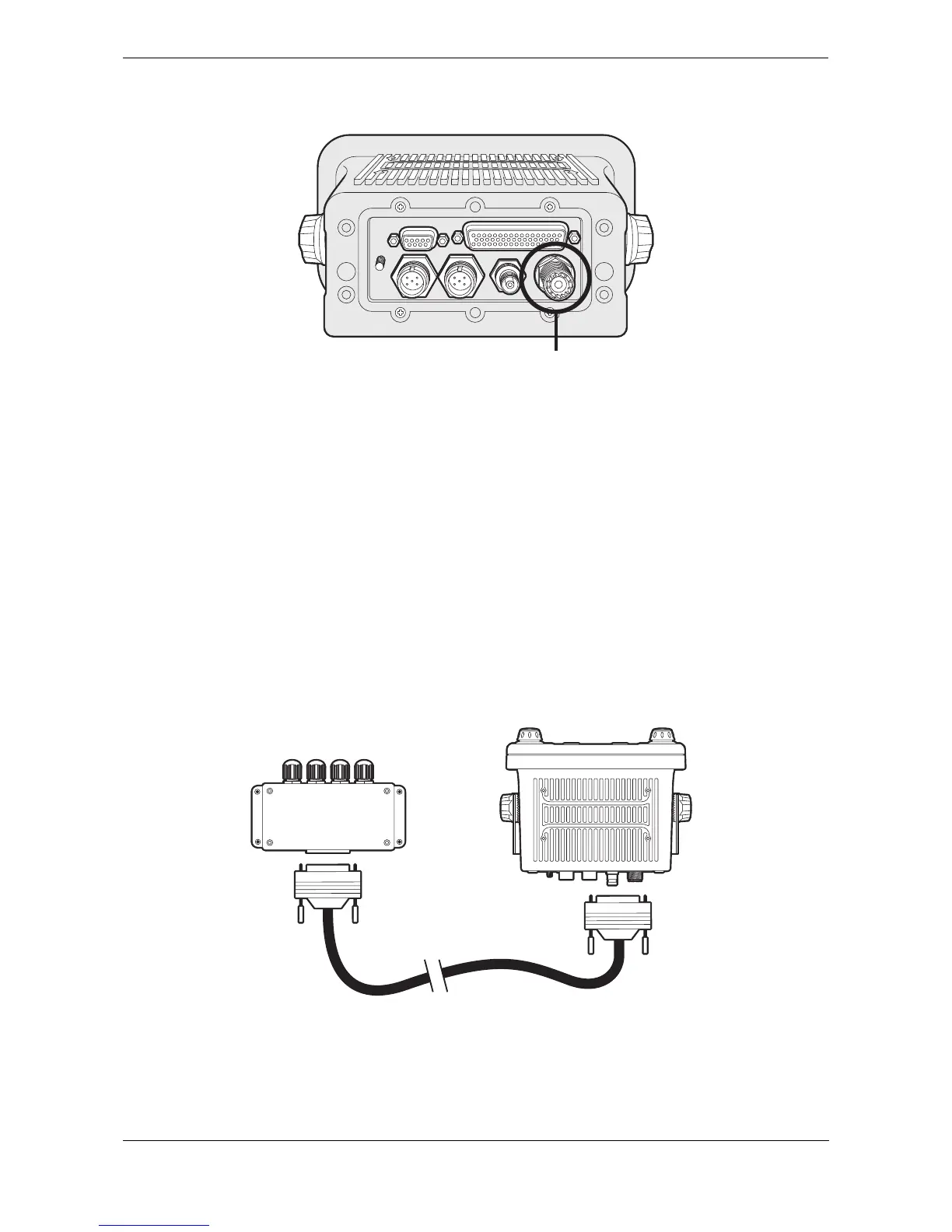

Figure 41 Connecting the junction box to the transceiver
