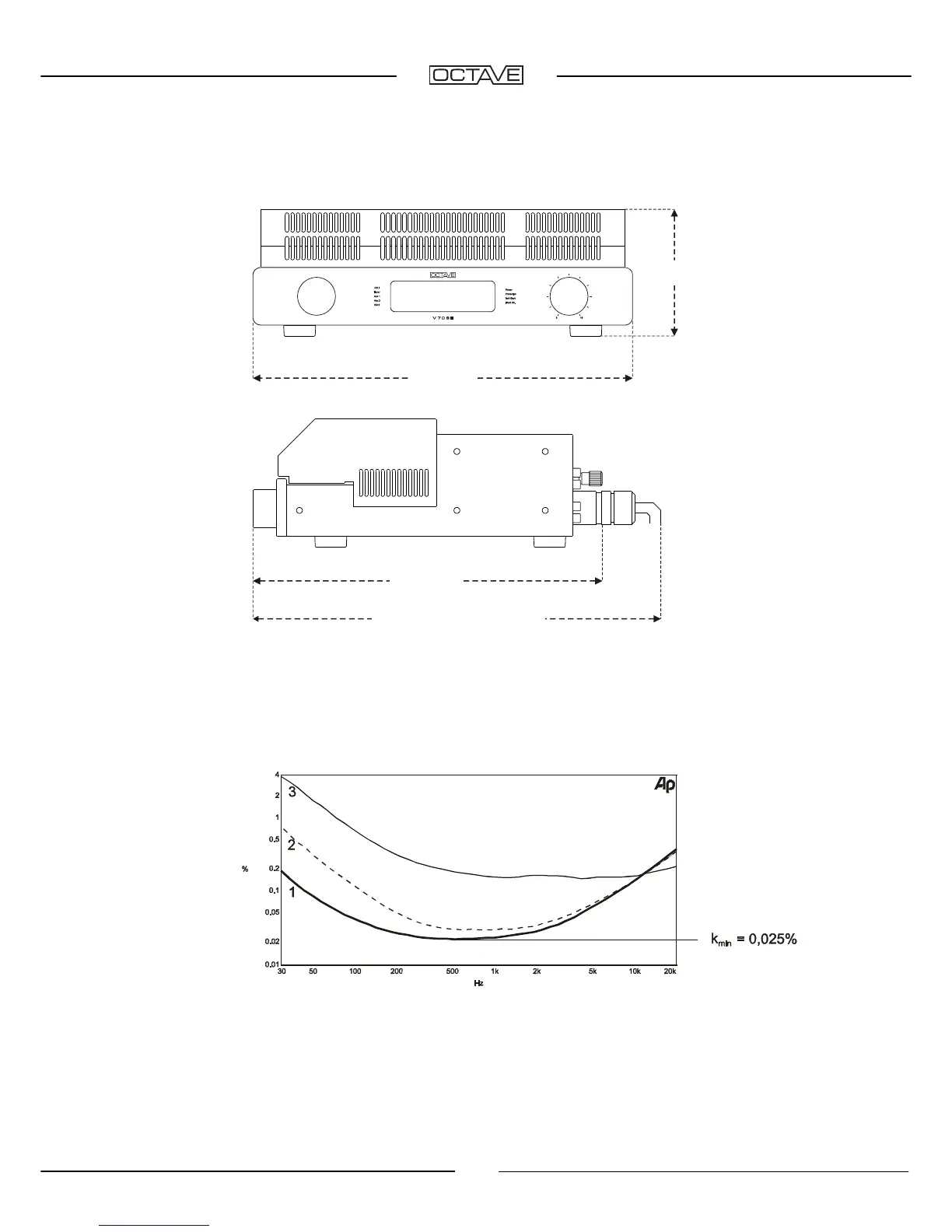

12. SPECIFICATIONS AND DIMENSIONS
451 mm
150 mm
415 mm
approx. 490 mm
with Black Box connection
Diagrams
THD at 4V into 4 ohms from 30 Hz to 20 kHz at a variety of BIAS settings
Diagramm 1
Curve 1: BIAS adjusted correctly
Curve 2: BIAS 10% out
Curve 3: BIAS 30% out
