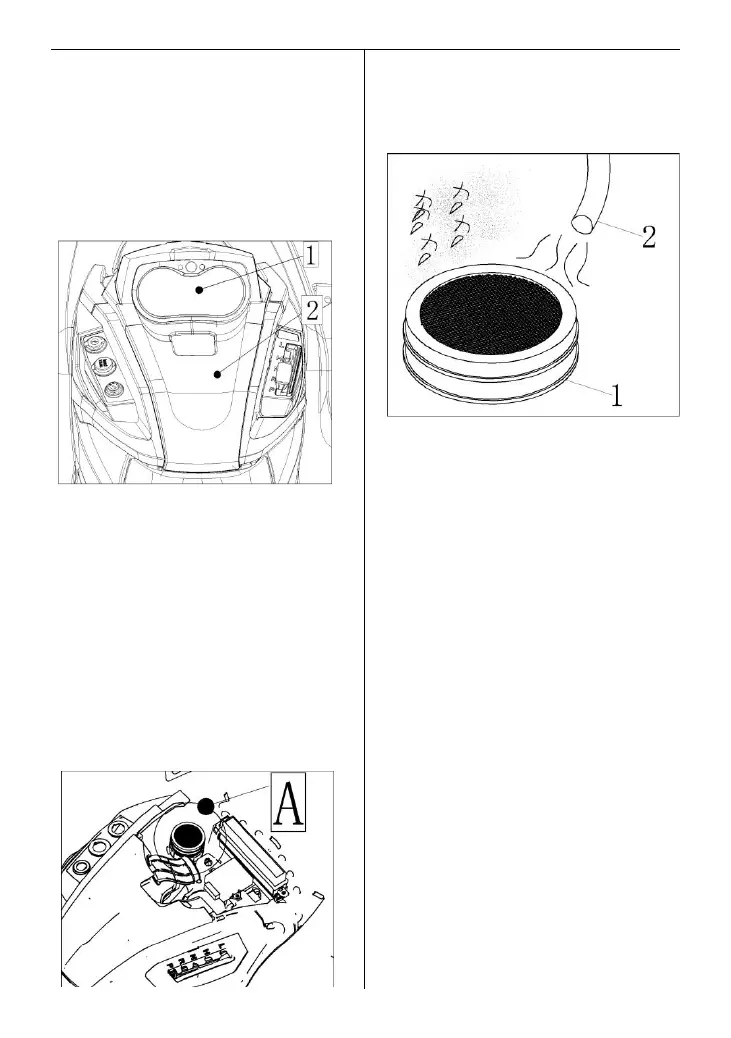

Maintenance of CVT intake pipe
take off the odometer cover
take off the odometer bottom seat
Take off the odometer bottom seat,
and release the bolts of cover, then
take off the cover.
TYPICAL
1、odometer cover
2、odometer bottom seat
Attention:
Operators must take necessary
protective measures, and wear
glasses and masks.
Operation work need to be in open
area.
TYPICAL
1、 CVT rubber assemble.
2、 blow pipe
3 、 Please don’t clean the air inlet
case against the wind, otherwise
stuffs will enter into eyes and mouth
easily.
4、Clean the air inlet case, and make
sure there is no other stuffs around.
To Next Page
