ODU AMC
HIGH-DENSITY
BREAK-AWAY PLUG
ASSEMBLY INSTRUCTION

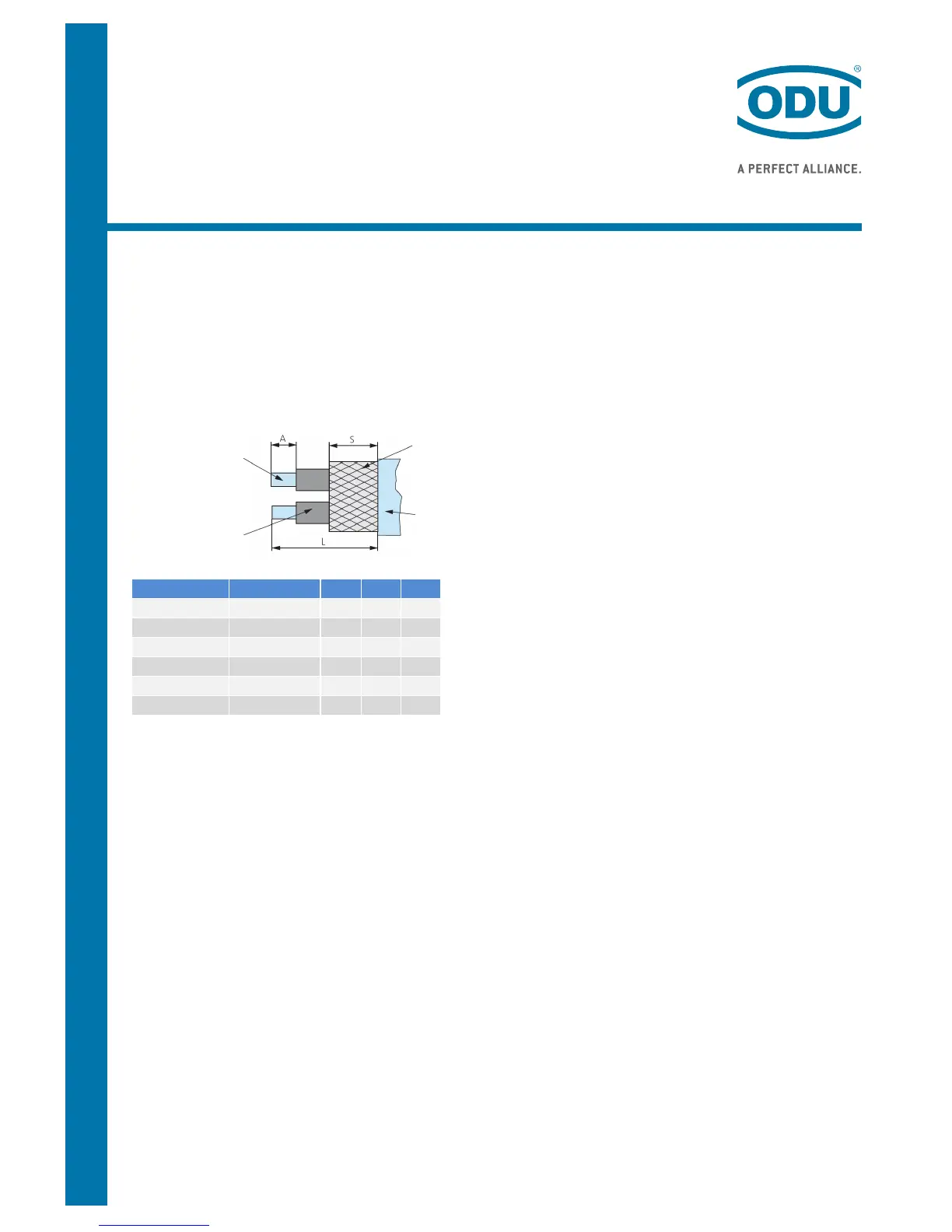

2 Cable Preparation
The following table provides recommended guidelines for cable preparation.
The according stripping measures have to be checked before assembly!
All dimensions in mm
Tolerance: +10 %
Exceptions are noted on special instructions.
Notes for data-rate-connectors
Before soldering, twist the strands back slightly in the original direction. If a shield is
available for the separately pairs of wires (e.g. STP-Cables), wrap it around the pairs as far
as possible.
Size
Contact ∅
L A S
00 0.3 10 1.5 10
0.5 8 1.5 8
0 0.3 10 1.5 10
0.7 10 1.5 10
1 0.3 12 1.5 12
1.5 (A) 0.3 14 1.5 14
Cable
Shield
Insulation
Single Conductor
A = Stripping length single conductor
L = Stripping length cable jacket
S = Stripping length braided shield
