ODU AMC
®
HIGH-DENSITY
BREAK-AWAY PLUG
ASSEMBLY INSTRUCTION
5 Cable interface
ODU provides three different solutions for the cable interface. According to the requirements
the customer can chose between overmolding, heat shrinkable molded parts and heat
shrinkable tubing.
5.1 ODU overmolding (recommended series solution)
ODU provides complete solutions with straight overmoldings on request.

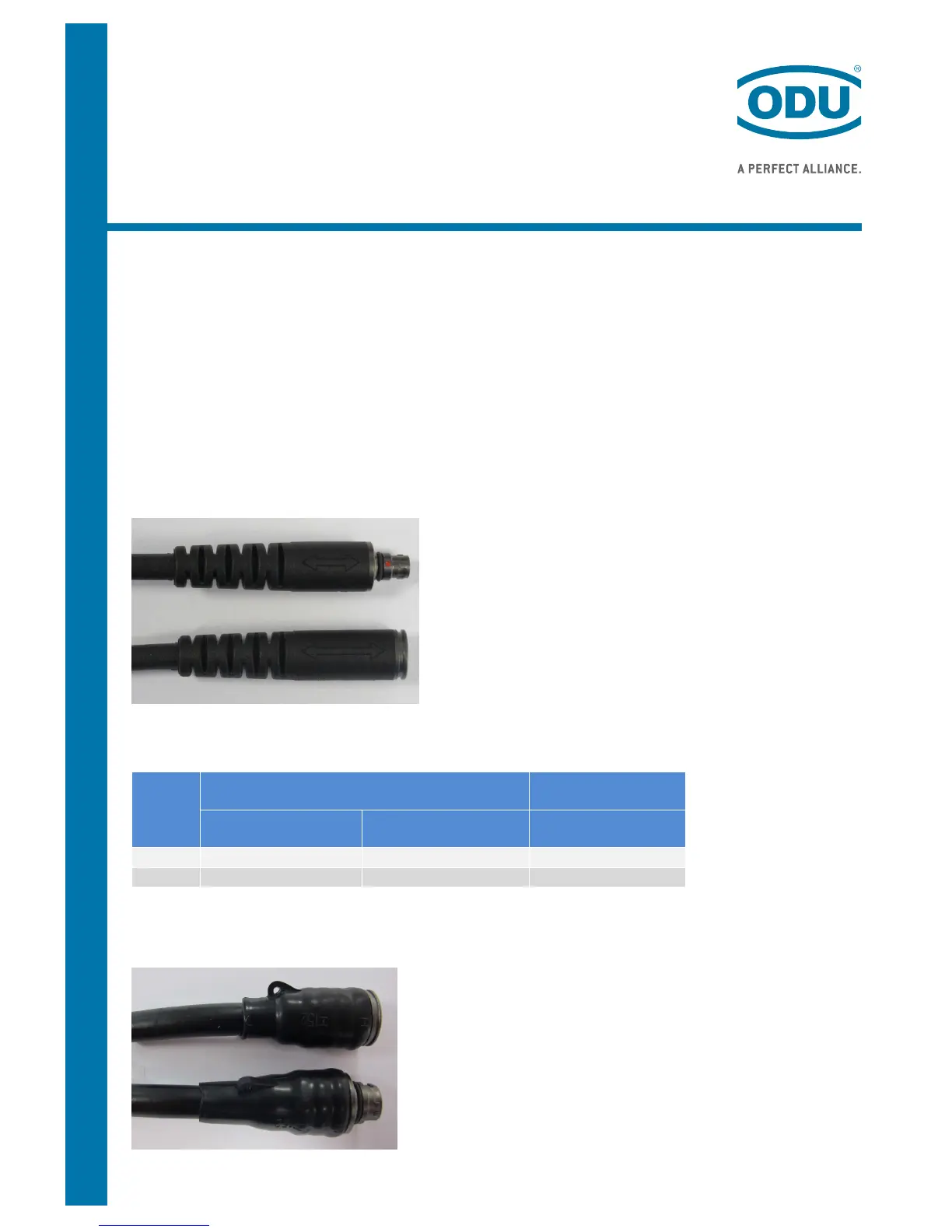

Example image: Break-Away Plug and In-Line Receptacle (size 00)
5.2 Heat shrinkable molded parts (samples, pre-series)
Size
Part number
ODU Supplier
Min. cable ∅ in mm
00 (C)
921.000.010.008.103
202K111-25 (Tyco)
3.0
0-1.5 (A)
921.000.010.008.084
401-52880 (Hellermann)
6.0
To a better adhesion of the heatshrink boots on housing and cable, ODU recommends to
work with an epoxyd-adhesion (e. g. Hellermann V9500, Raychem S1125).
Example image: Break-Away Plug and In-Line Receptacle (size 1)
