ODU AMC - Assembly Crimp Adapter; Spann Wrench; Assembly Tool; Adhesive Application

All Rights reserved, including possible patents or trademarks. Documents shall not be provided to a third party or duplicated in any form without prior written permission.
This document is not managed 010.650.001.000.001-a
3
ODU AMC
®
HIGH-DENSITY
BREAK-AWAY PLUG
ASSEMBLY INSTRUCTION

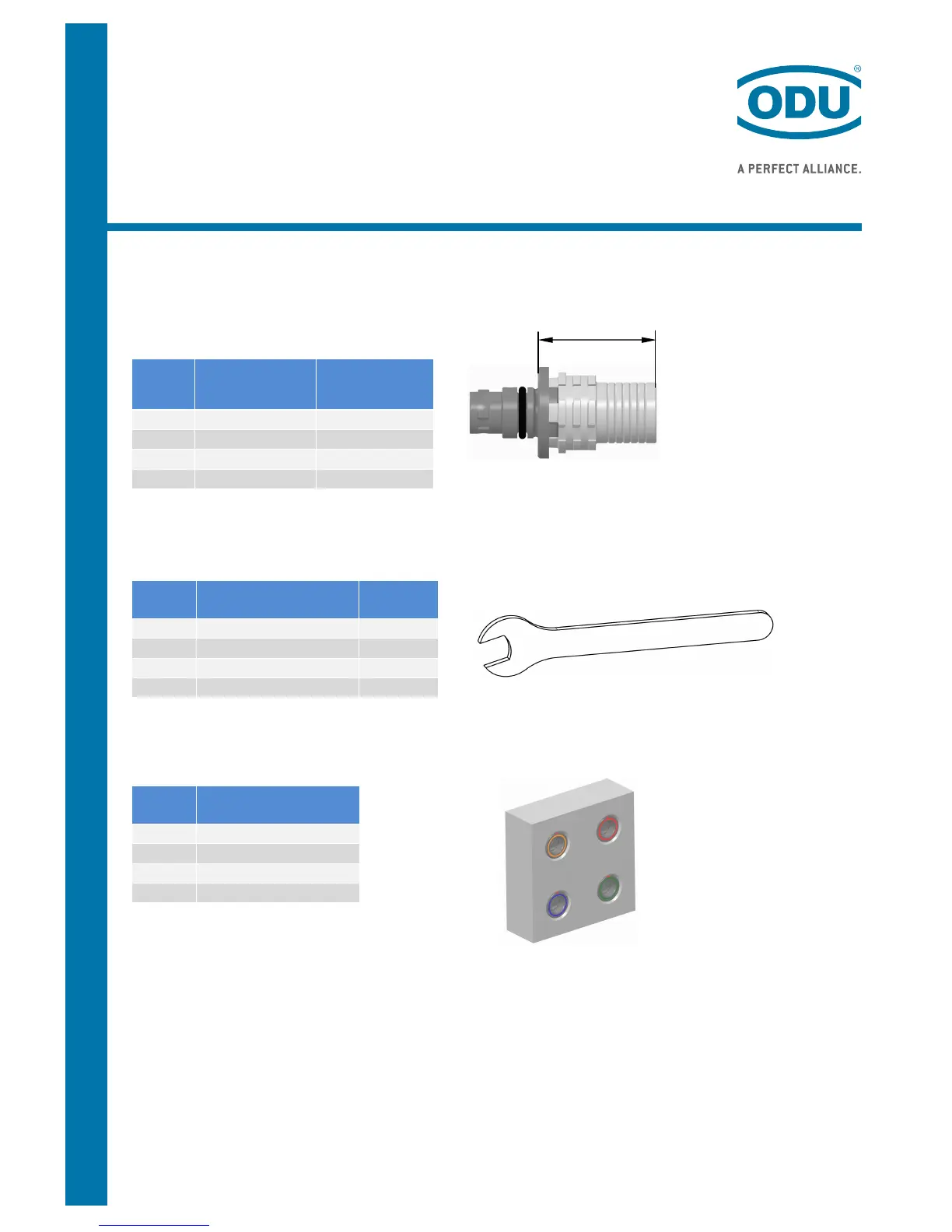

3 Assembly Crimp Adapter
Size
Torque
Nm
Reference
Dimension X
mm
00 (C) 0.5 12.7
0 1.0 14.2
1 1.5 18.2
1.5 (A) 2.0 22.2
3.1 Spann wrench
Size Part number
Wrench
size
00 (C) 598.700.001.001.000 8
0 598.700.001.002.000 10
1 598.700.001.003.000 12
1.5 (A) 598.700.001.005.000 14
3.2 Assembly tool
Size
Part number
00 (C) 713.650.900.000.000
0 700.650.900.000.000
1 701.650.900.000.000
1.5 (A) 715.650.900.000.000
3.3 Adhesive
Secure the crimp adapter on housing with adhesive.
(ODU reference: Loctite 2701)
3.4 Potting the interior of the crimp adapter
Encapsulate the interior of the crimp adapter to secure the soldered points with 2K casting
resin PU. (ODU reference WEVO-2K-casting resin PU552FL)
X
