Diagnostics
new software because the C-Arm has to boot completely for the Remote Utilities (RUT) to work. It may be necessary to start the
system from the boot disk and troubleshoot the system.

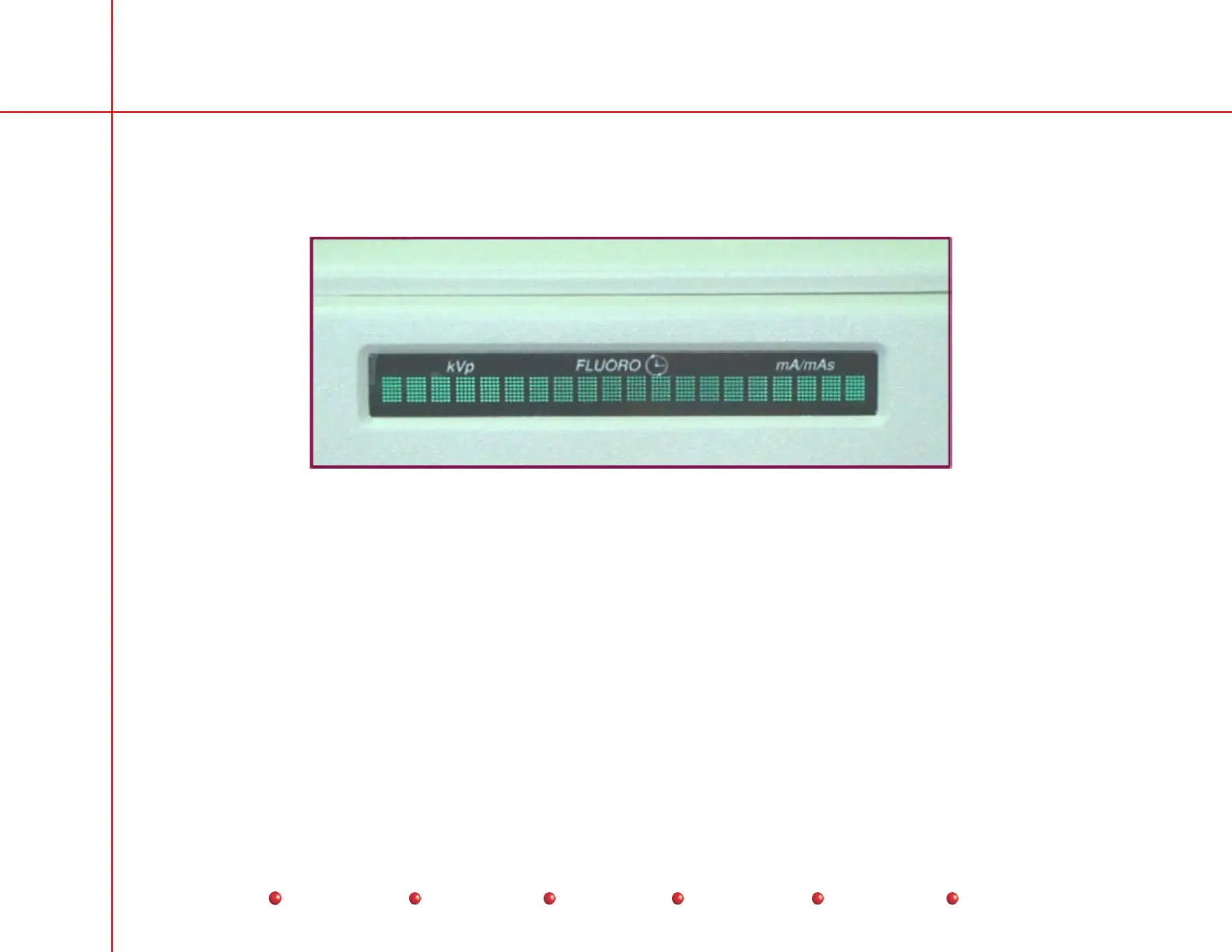

C-Arm Control Panel Boot Sequence Display (Squares)
The bootup squares have the following meaning:
Five Squares
: Initialization of interrupts, display, and timers is complete.
Ten Squares
: EEPROM checksum verification is complete.
15 Squares
: Keyboard initialization is complete.
20 Squares
: Control Panel Processor PCB’s UART initialization is complete. Control Panel Processor has sent its “boot
complete” message to the Fluoro Functions PCB.
