Replacement
Filament Driver PCB

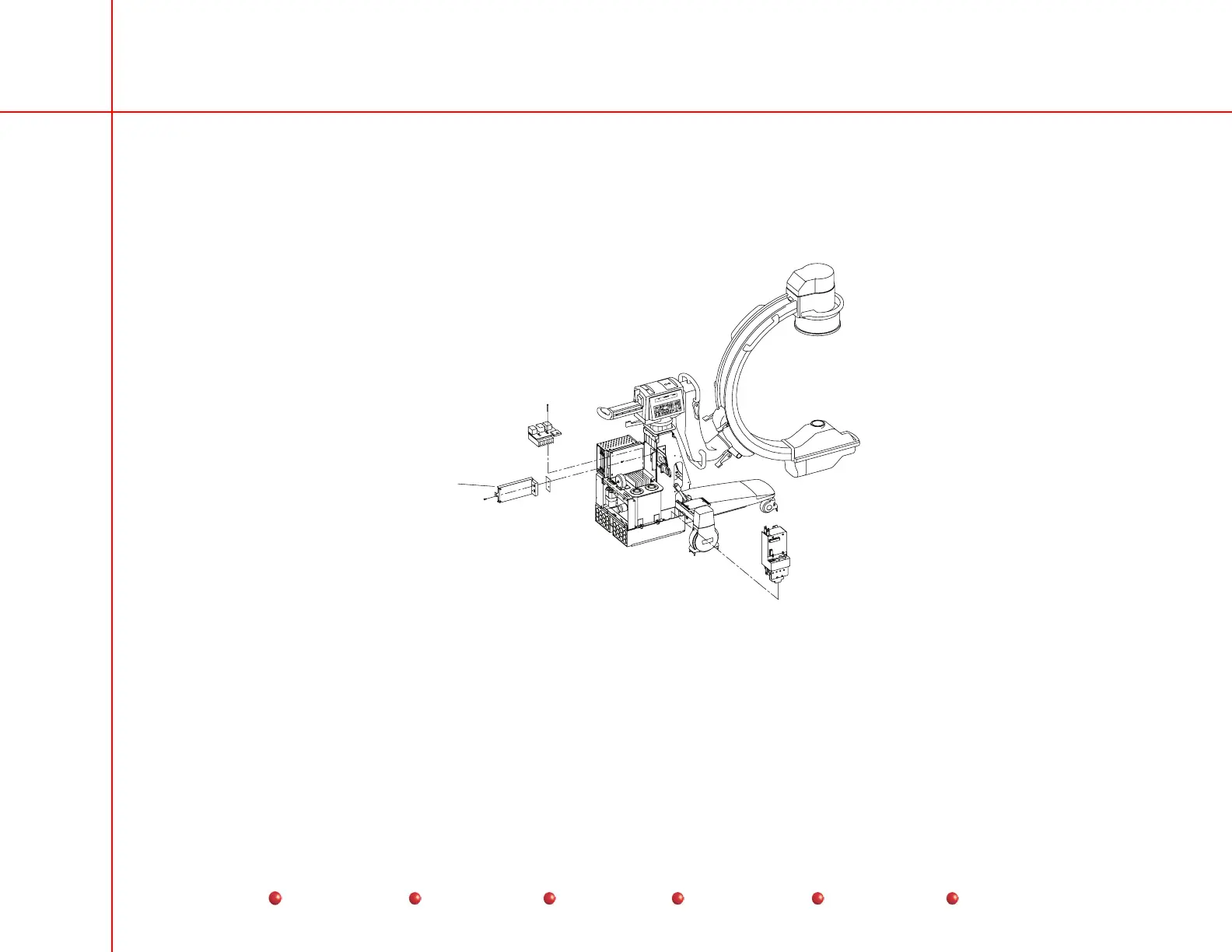

The Filament Driver PCB mounts on top of the IGBT Snubber PCB next to the Generator Driver PCB as shown in the following
illustration.
Filament
Driver
PCB
Filament Driver PCB Location
Follow these steps to replace the Filament Driver PCB:
WARNING: Dangerous voltages are present when covers are removed from the C-Arm.
1. Turn Workstation off and remove its AC power plug from the AC outlet.
2. Remove the Rear Cover and disconnect the steering linkage.
56
