Replacement
1. Turn off Workstation and disconnect its plug from the AC outlet.
2. Remove all C-Arm covers.
3. Disconnect steering linkage.
4. USING GREAT CARE TO AVOID ELECTRIC SHOCK, disconnect battery cables from P1A and P3B on Capacitor/Power
module. (Refer to Capacitor/Power module replacement procedure in this chapter for details.)

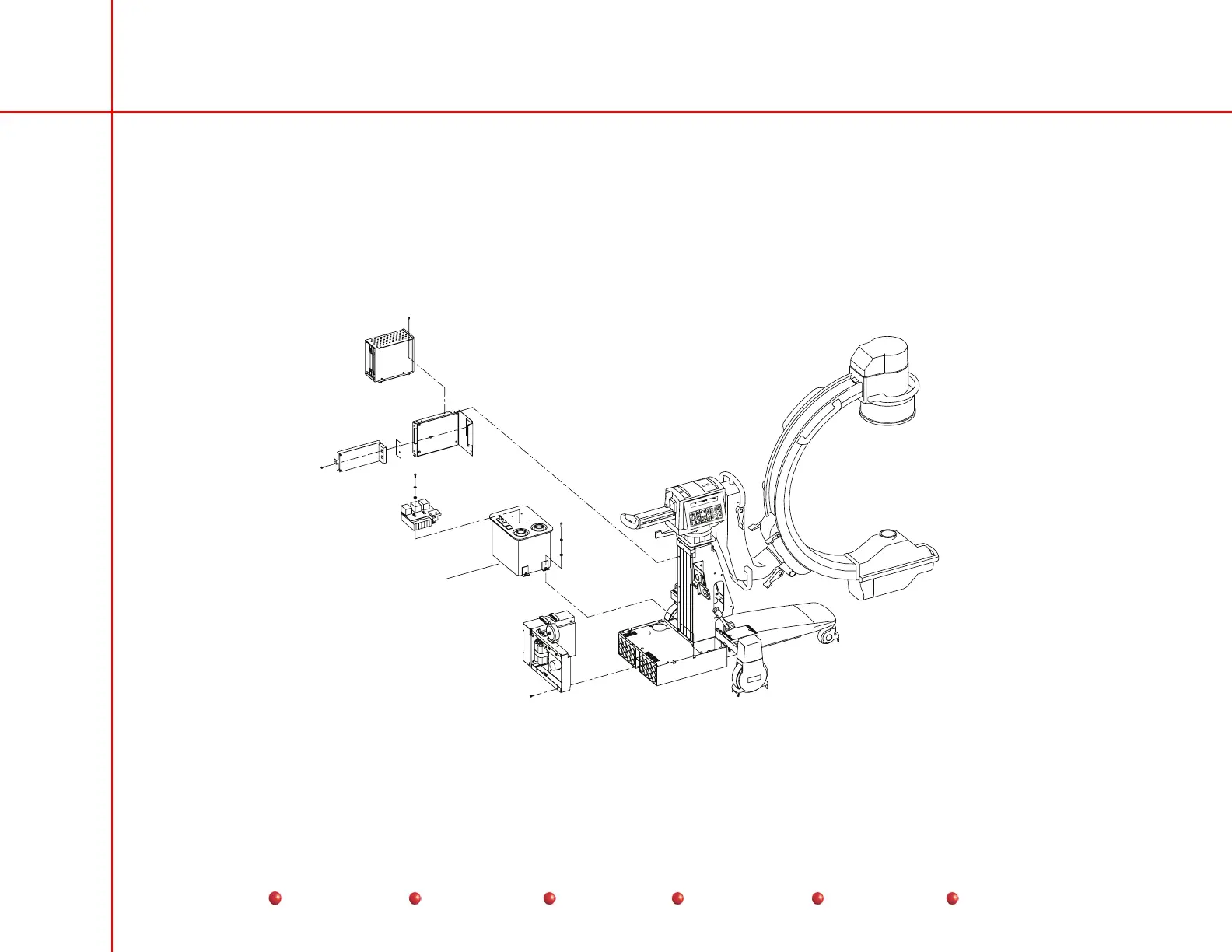

High
Voltage
Tank
High Voltage Tank
65
