Floppy Disk Drive
The 3.5-Inch, 1.44-megabyte floppy disk drive, located on the Workstation rear panel at the rear of the Electronics box,
serves as an alternate boot drive; it can also store single images on standard 3.5-inch floppy disks.

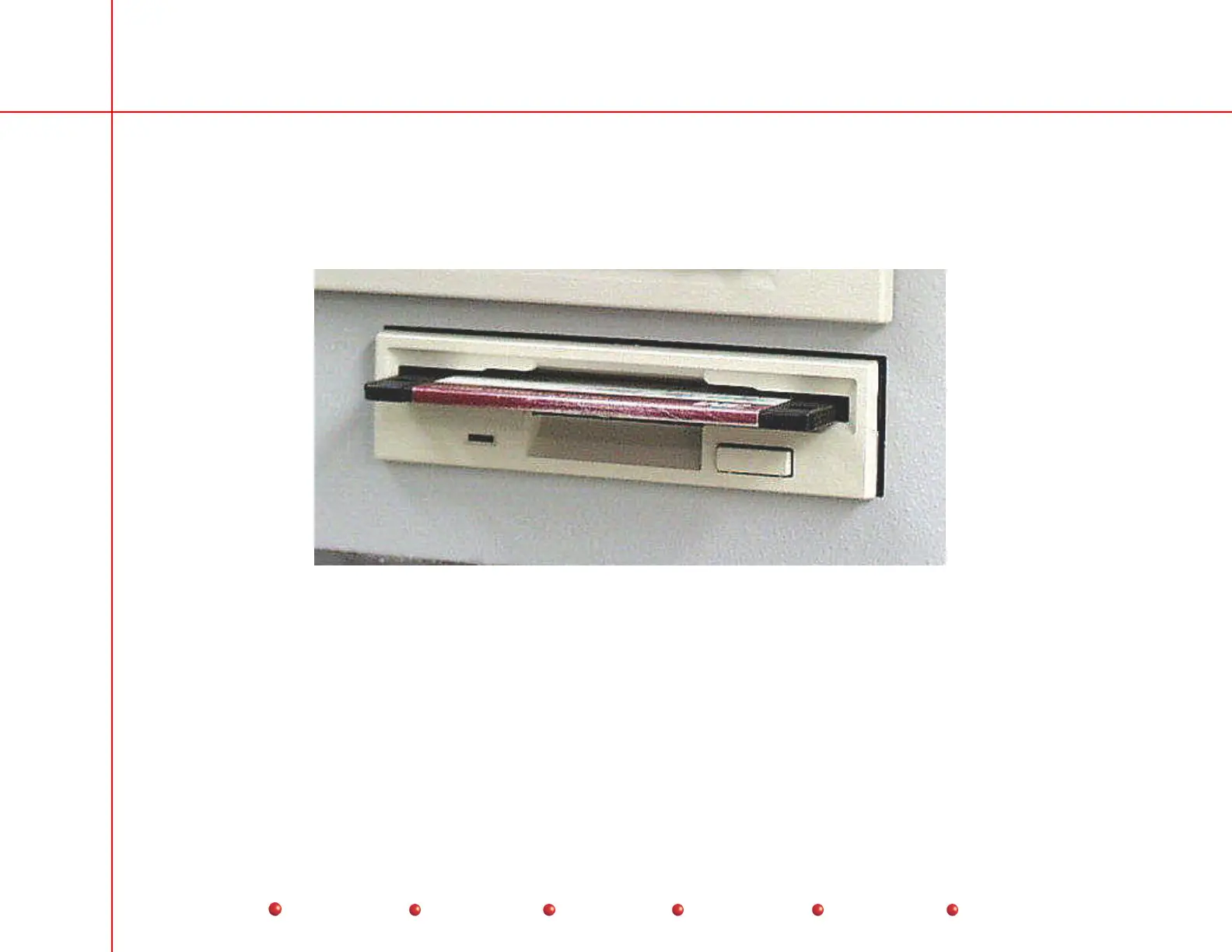

3.5-Inch, 1.44-Megabyte Floppy Disk Drive on Workstation Rear Panel
