Operating Instructions and Parts Manual 24664
4/18
2018 OEMTOOLS
™
ROTARY TOOL
SELECTING PROPER SPEEDS
Different speeds are required depending upon the
type of operation being performed. The following
chart outlines those basic speeds:
Operation Speed
Cutting Metal 5 – MAX
Sanding Wood 5 – MAX
Cutting Hard Metal 5 – MAX
Engraving Metal 4 – 5
Deburring 4 – 5
Drilling Holes 4 – 5
Removing Rust 3 – 4
Sharpening 3 – 4
Polishing 1 – 2

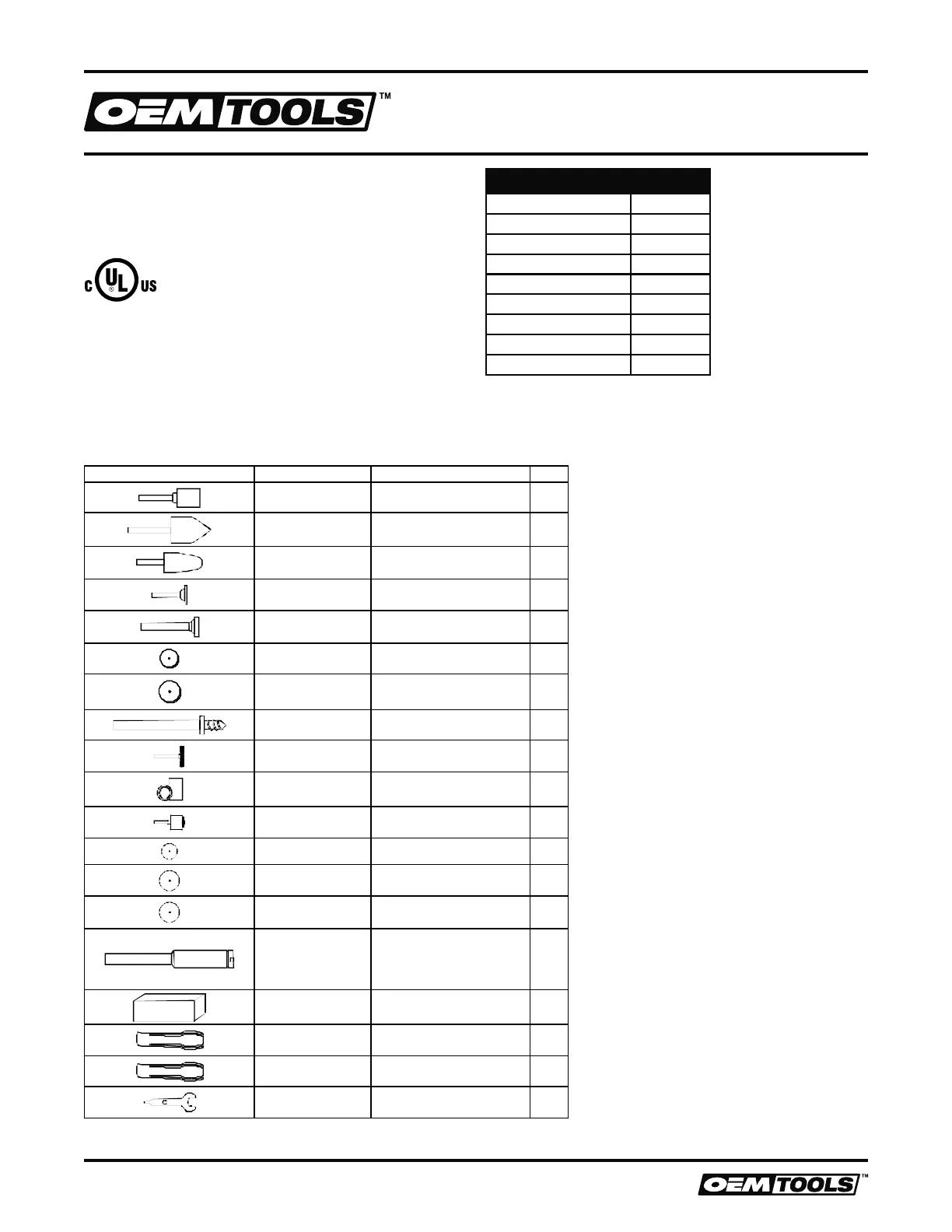

ACCESSORY KIT CONTENTS
This symbol designates that this tool
is listed with U.S. requirements by ETL
Testing Laboratories, Inc. and conforms
to UL Std. 60745-1, 60745-2-3
CAMERA-READY LOGOTYPE – UL MARK FOR CANADA AND THE U.S.
These Marks are registered by Underwriters Laboratories Inc.
The minimum height of the registered trademark symbol ® shall be 3/64 of an inch. When the overall diameter of the
UL Mark is less than 3/8 of an inch, the trademark symbol may be omitted if it is not legible to the naked eye.
The font for all letter forms is Helvetica Condensed Black, except for the trademark symbol ®, which is
Helvetica Condensed Medium. No other fonts are acceptable.
200-195C 20M/11/97
LISTED
61TN
E21 37 39
S1J-1 35U
Illustratio
Descriptio
Shape Qt
Aluminum oxide
grinding stone
Cylinder 3/8” 1
Aluminum oxide
grinding stone
Cone 5/8” 1
Aluminum oxide
grinding stone
Parabolic 3/8” 1
Aluminum oxide
grinding stone
Cylinder 13/32” 1
Aluminum oxide
grinding stone
Cylinder 25/32” 1
Felt polishing
wheel
1 2”2/
Felt polishing
wheel
2”1
Mandrel
1/8” for felt polishing
wheels
1
Bristle brush 3/4” radial 1
Sanding band 1/2” 60-grit 3
Drum sander 1/2” with 1/8” shank 1
Sanding disc 3/4” 60-grit 3
Heavy-duty
Cut-off wheel
15/16” x 0.031” 6
Regular-duty
cut-off wheel
15/16” x 0.025” 6
Screw mandrel
1/8” for sanding discs,
cut-off wheels, cloth
wheels & grinding
wheels
1
Dressing stone 3/8” x 1” square 1
Collet 1/8” (packed in tool) 1
1”23/3telloC
Wrench
For collet nut, drum
sander & screw mandrel
1
