Operating Instructions and Parts Manual 24669
4/18
2018 OEMTOOLS
™
3/8" DRILL

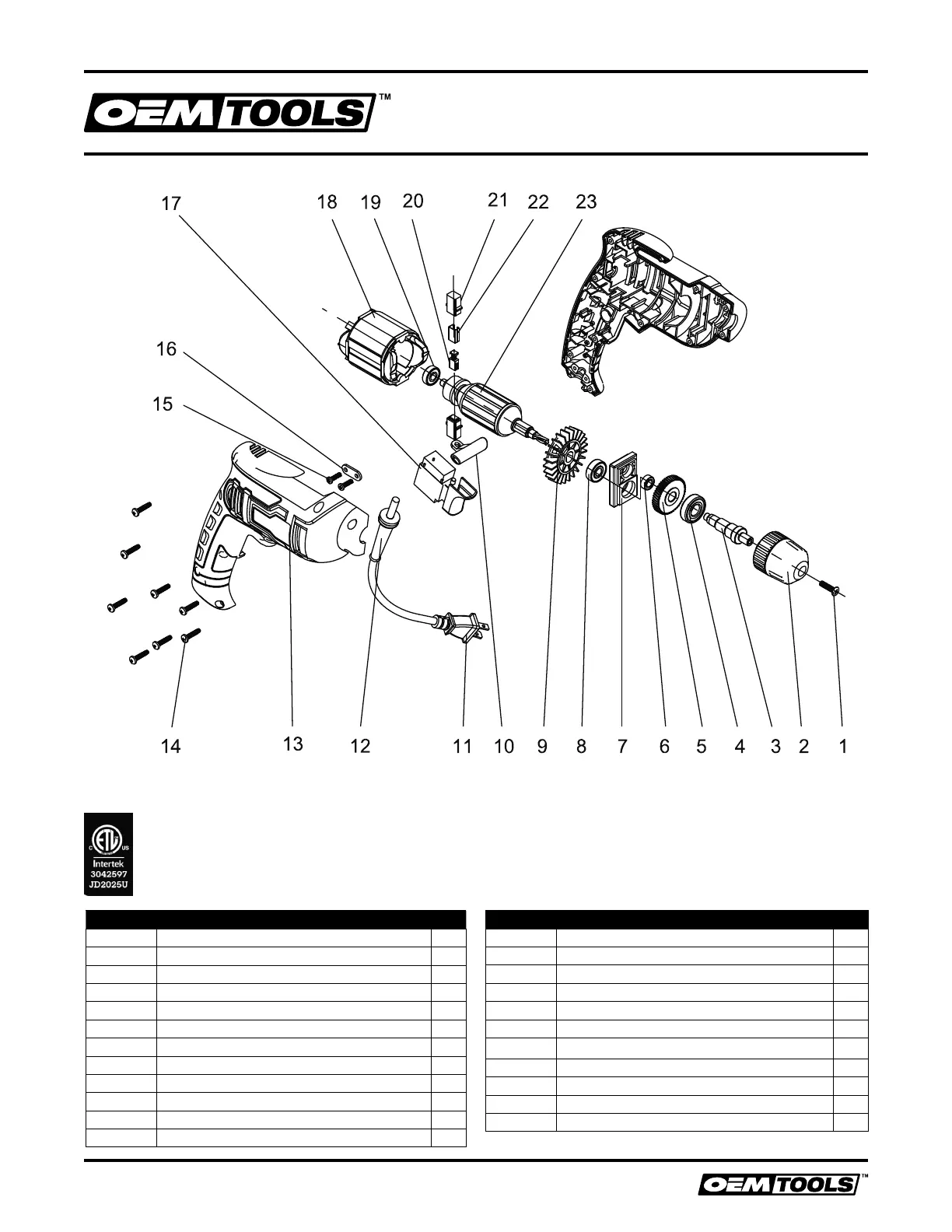

PARTS DIAGRAM
PARTS LIST
This symbol designates that this tool is listed
with U.S. and Canadian requirements by ETL
Testing Laboratories, Inc. and conforms to UL
Std. 60745-1, 60745-2-1, 60745-2-2. Certified to
CAN/CSA Std. C22.2 No. 60745-1, 60745-2-1,
60745-2-2.
Item # Description Qty.
1 Chuck Screw 1
2 3/8 Chuck 1
3 Shaft 1
4 Bearing 6001-RS 1
5 Big Gear 1
6 Bearing 687-RS 1
7 Bearing Seat 1
8 Bearing 608-RS 1
9 Fan 1
10 Forward/Reverse Switch 1
11 Cord Set 1
12 Cord Guard 1
Item # Description Qty.
13 Housing 1
14 Screw 8
15 Screw 2
16 Strain Relief 1
17 Switch 1
18 Stator 1
19 Bearing 607RS 1
20 Carbon Brush 2
21 Brush Holder 2
22 Copper Crush Holder 2
23 Rotor 1
NOTE: Not all components of the Drill are replacement
items, but are illustrated as a convenient reference for
location and position in the assembly sequence.
