Operating Instructions and Parts Manual 24893 / 24894
9/17
2017 OEMTOOLS
™
24"/30" OUTDOOR OSCILLATING
WALL MOUNT FAN

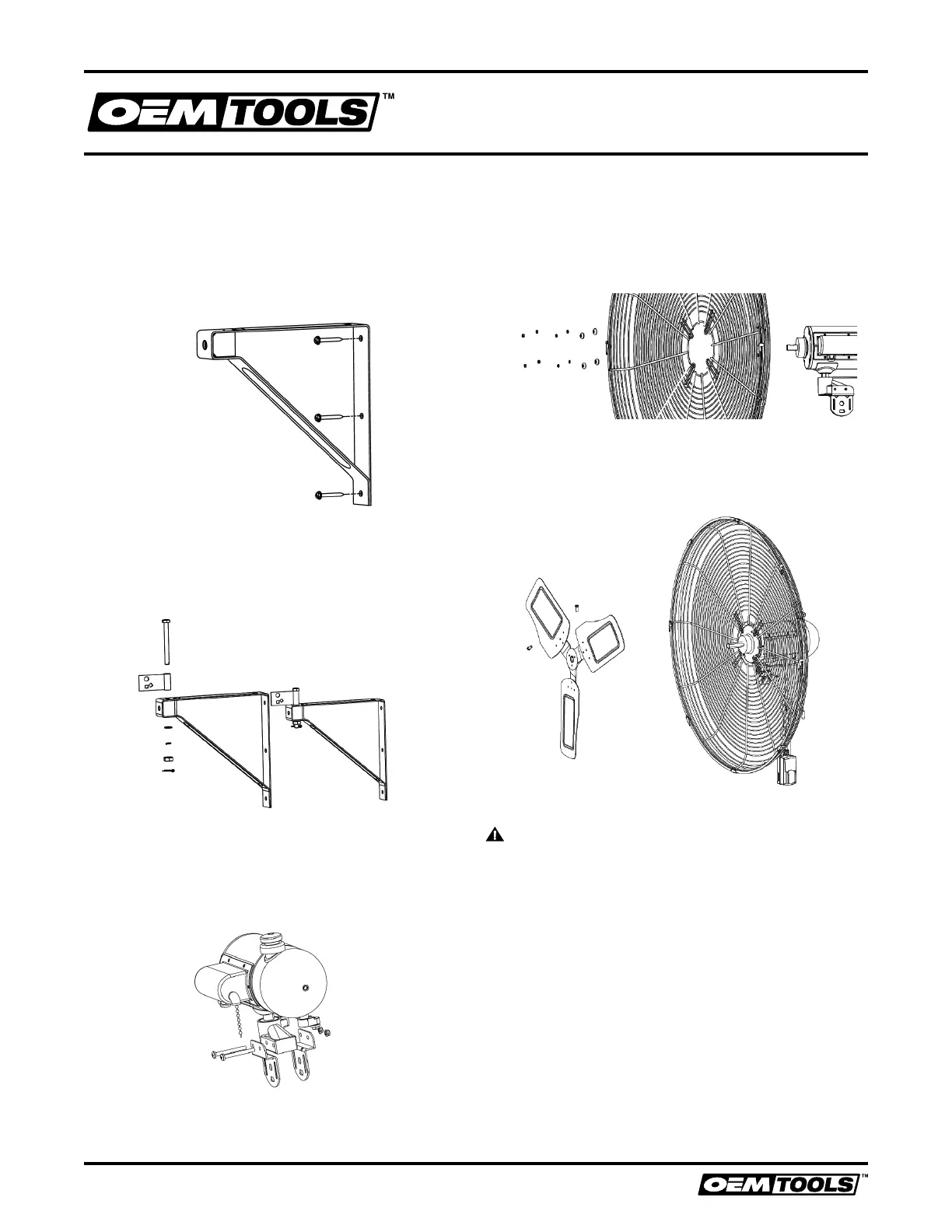

WALL STUD INSTALLATION
a) Mark the desired hole location using the
Wall Mounting Bracket, then drill small
diameter pilot holes.
b) Position the Wall Mounting Bracket over
the pilot holes and screw the 3 bolts into
the stud. Tighten the bolts securely.
2. Connect the Swivel Adapter to the Mounting
Bracket using the M12x120 bolt, flat washer,
locking washer, nut and rivet assembly
(applied in that order).
3. Place a Fixed Adapter on both sides of the
motor base extension. The Adapters should
taper at the center leaving a small gap.
Fasten securely using the provided hardware.
4. Remove all four sets of hexagonal nuts,
spring washers and bowl washers from
the Motor.
5. Position the Rear Guard over the Motor and
secure using the hexagonal nuts, spring
washers and bowl washers removed in Step 4.
6. Fasten the Fan Blade to the Motor Shaft by
tightening the two fan blade screws. Ensure
the screws are securely tightened.
WARNING: Fully assemble the front guard to the
fan prior to attempting to start the fan. If the fan
blade is loose, the blade may become displaced
from the motor shaft causing product malfunction,
property damage and personal injury.
Assemble the rear grill.
Assemble the blade.
Assemble the front grill.
Assemble the rear grill.
Assemble the blade.
Assemble the front grill.
Assemble the rear grill.
Assemble the blade.
Assemble the front grill.
Assemble the rear grill.
Assemble the blade.
Assemble the front grill.
