24"/30" OUTDOOR OSCILLATING
WALL MOUNT FAN

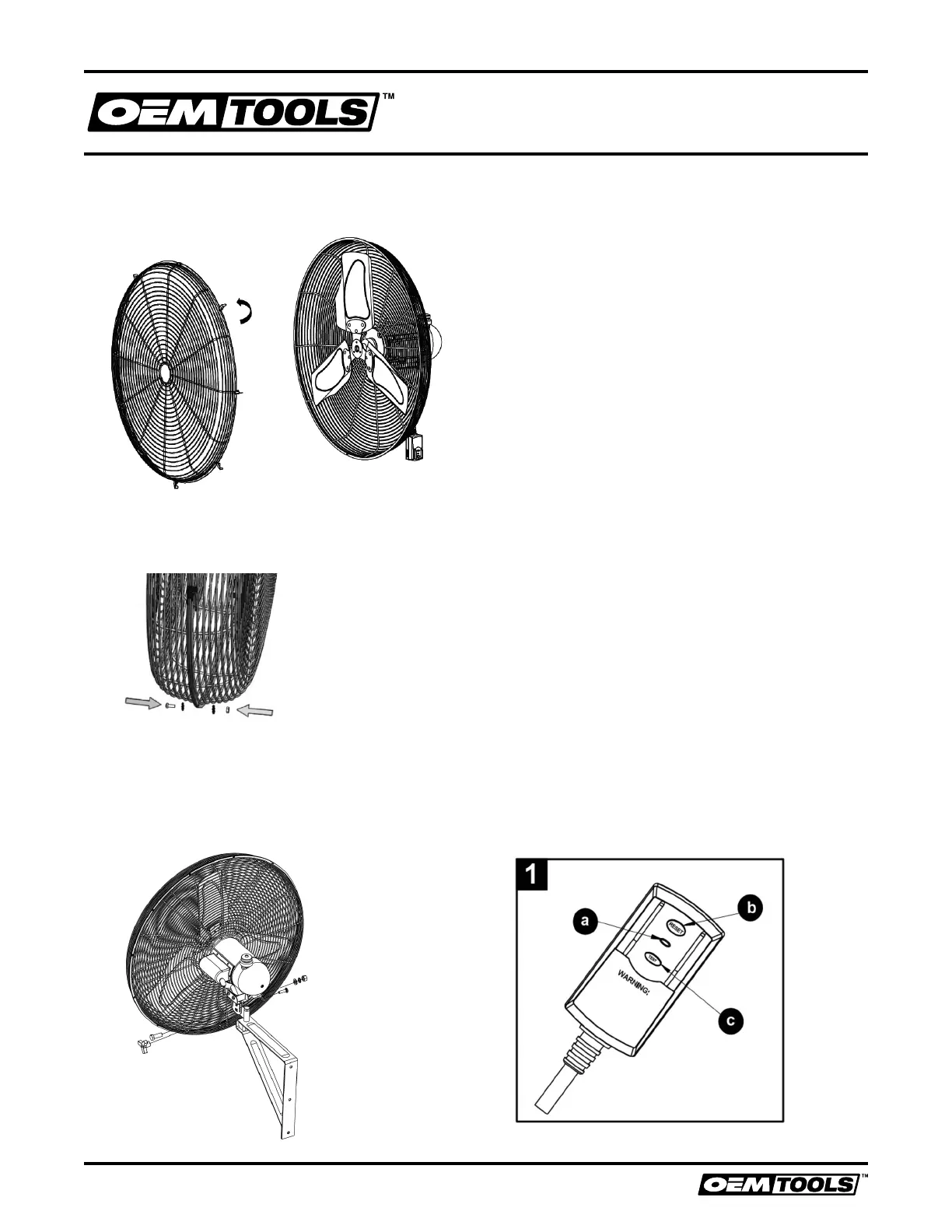

7. Place the Front Guard over the Rear Guard.
Fasten together using the clips along the rim
of the Front Guard.
8. Secure the Guard Assembly by fastening the
retaining bolt, lock washers and nut.
9. Attach the completed Fan Assembly (Step 8)
to the Bracket and Swivel Adapter Assembly
(Step 2) using the provided bolt and nut
assembly. Fasten the Handwheel with Bolt
into the lower square hole.
10. Attach the Motor to a heavy fixed object
(capable of supporting the weight of the fan)
using the safety cable and provided U-bolts.
If the fan dislodges from the mounting
bracket for any reason, the safety cable will
prevent the fan from falling.
NOTE: Ensure the cable does not inhibit the
oscillating range of motion. This can lead to
product malfunction.
ADJUSTING FAN ANGLE
1. While supporting the weight of the fan,
loosen the Handwheel and remove the bolt.
If the weight of the fan is not supported, the
fan will not fall to the ground; however, pivot
uncontrollably toward the operator.
2. Allow the fan to pivot forward to the second
angled adjustment, and replace the bolt and
fasten securely using the Handwheel.
OPERATION INSTRUCTIONS
1. Mount in accordance with provided assembly
instructions.
2. Plug the fan into a grounded 120V / 60 Hz outlet.
3. Test GFCI (Ground Fault Circuit Interrupter) before
each use.
a. Press the RESET button (b). Indicator (a) should
turn red.
b. Press the TEST button (c). Indicator (a) should
turn off.
c. Press the RESET button (b) again before
attempting to use.
d. DO NOT ATTEMPT TO USE IF GFCI TEST
FAILS. Call customer service for assistance.
