OilQuick OQ 80 - OilQuick Quick Coupler System Components; Coupler Part; H-cylinder

Version 1.1 8 2011-06-28
1
2
3
4
13
14 12
11
1.3 Attachment frame for mechanical tools
11. Attachment
12. Front frame pin
13. Rear frame pin
14. Side part
1.2 H-cylinder
5. H-cylinder
6. Cylinder holder
7. Hydraulic hoses for locking and unlocking
8 Locking plungers
9 Indicator rod
10. Dirt guard
8
5
9
7
6
10
10
10

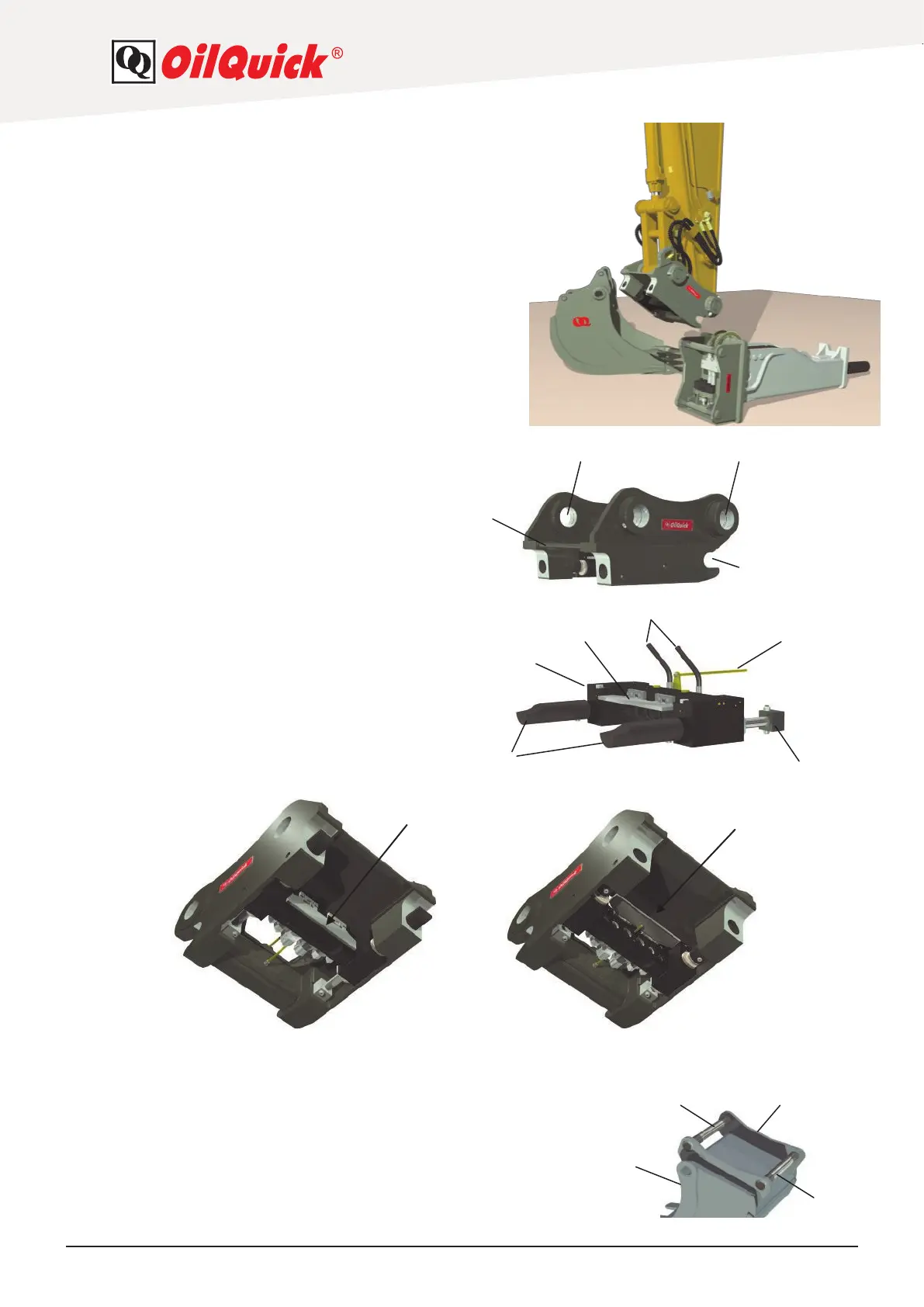

1. OilQuick quick coupler system components
The following section describes the various components in
the OilQuick quick coupler system.
1.1 Quick coupler body
1. Coupler body
2. For attaching to the excavator arm
3. For attaching to the linkage
4. Fingers
Dirt guard closed Dirt guard open
