OilQuick OQ 80 - Attachment Frame for Hydraulic Tools; Electric Coupling (Option); Locking Hydraulic Kit (Option)

Version 1.1 9 2011-06-28

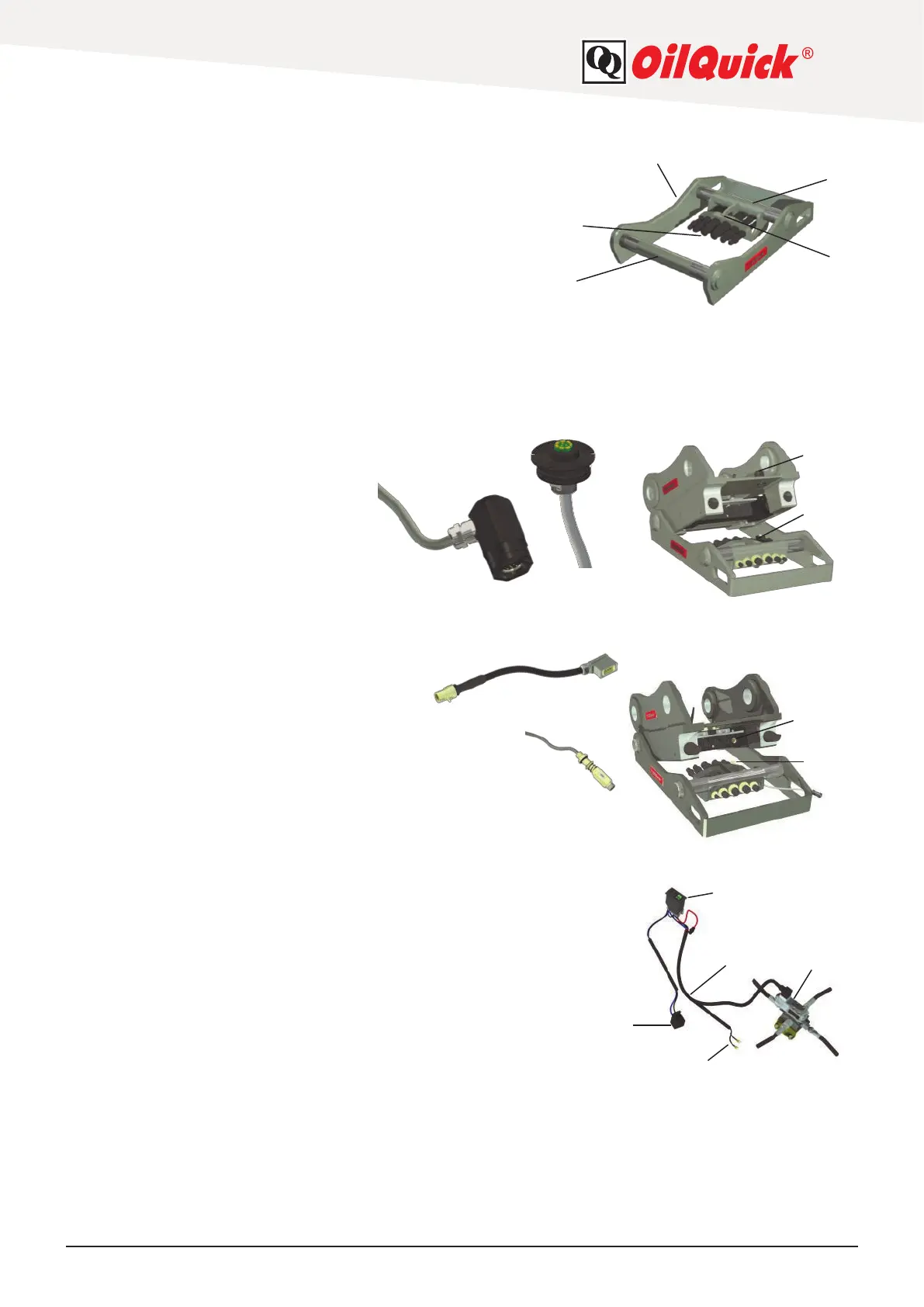

1.7 Locking hydraulic kit (option)
24. Control switch with double command function
25. Alarm
26. Electric selector valve, 4/2
27. Cable set
28. Electric connection
Use this kit when a hydraulic lock has not yet been installed on the machine or OilQuick's requirements
for hydraulic locking has not been met (see section 3).
25
26
24
27
28
15
19
16
17
18
1.4 Attachment frame for hydraulic tools
15. Attachment frame
16. Coupling ramp
17. Male connector
18. Front pin
19. Rear pin
The attachment frames are available in various models for different applications, but the function is the same
as for the basic model in each case. For further details, please contact your nearest OilQuick dealer.
20
21
1.5 V-90 electric coupling (option)
20. Contact socket
21. Contact plug
The contact elements are 10 pin.
22
23
1.6 1/2" electric coupling (option)
22. Contact socket
23. Contact plug
The contact elements are 10 pin.
20
21
23
22
