Oki B431L6

Appendix C Maintenance Manual for Second Tray unit
Oki Data CONFIDENTIAL
44983601TH Rev.1
Appendix C-7 /

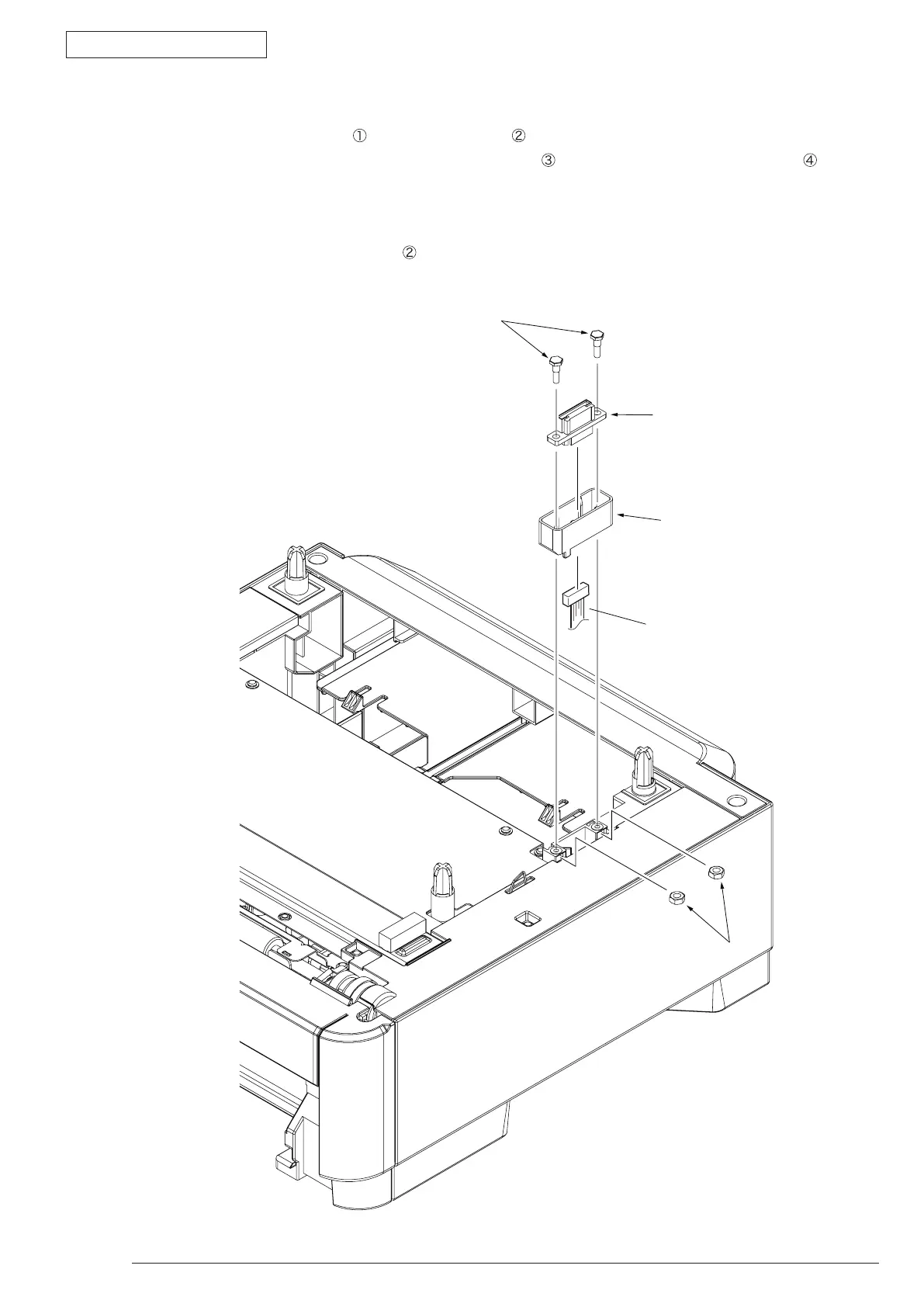

3.3.2 Guard-Connector,Connector(9715S-08Z02-G4C)
(1) Remove the two screws
.
Remove
the two nuts .
(2) Disconnectthecable,andremoveGuard-Connector andConnector(9715S-08Z02-G4C) .
(3) Installing is performed by the inverse procedure with removing.
(Noteonremoving/installing)
1. Becarefulnottolosethenuts
.
①
④
②
③
Cable
