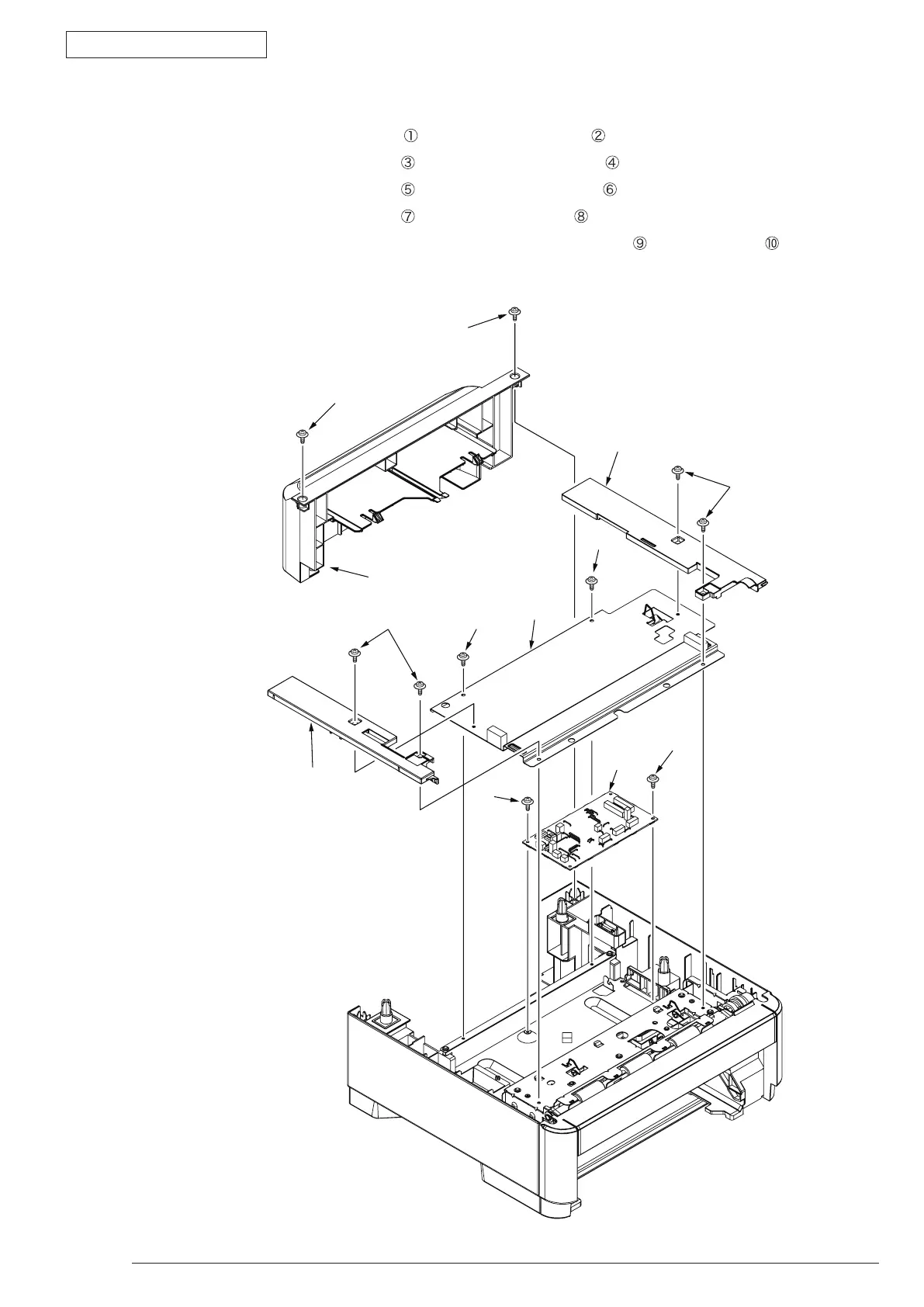

3.3.3 Board-GOG
(1) Removethetwoscrews(Black) . Remove the Cover-Rear .
(2) Remove the two screws (silver)
.RemovetheCover-Blind-R .
(3) Remove the two screws (silver)
.RemovetheCover-Blind-L .
(4) Remove the two screws (silver)
. Remove the Plate-Top .
(5) Disconnectthesixconnectors,andremovethetwoscrews(silver)
andBoard-GOG .
(6) Installing is performed by the inverse procedure with removing.
