Oki B431L6

Appendix C Maintenance Manual for Second Tray unit
Oki Data CONFIDENTIAL
44983601TH Rev.1
Appendix C-9 /

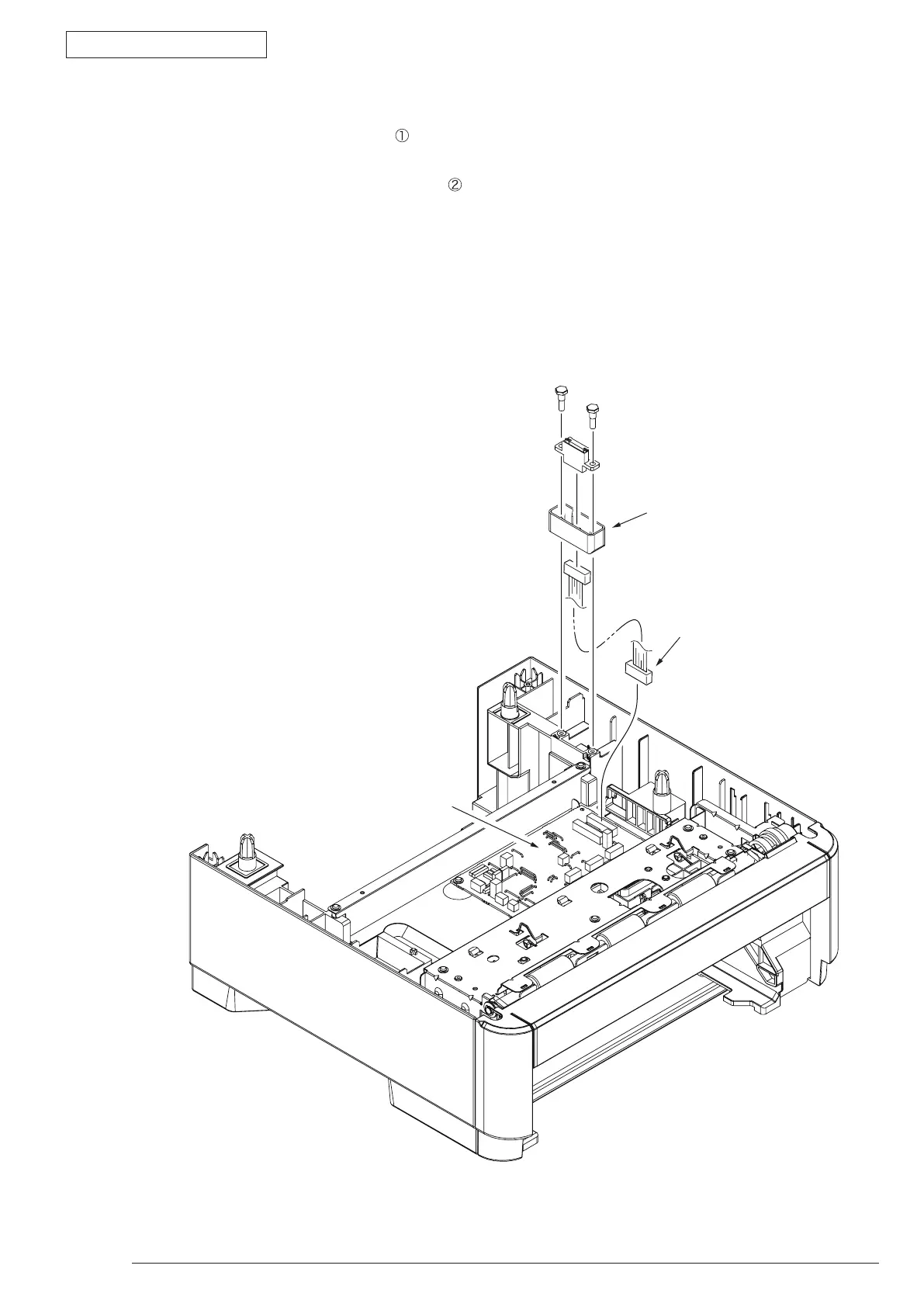

3.3.4 CONNCord-AMP8P-AMP8P
(1) RemovetheGuard-Connector . (Refer to 3.3.2)
(2) RemovetheCover-Rear,Cover-Blind-R/L,Plate-Top.(Referto3.3.3)
(3) RemoveCONN-Cord-AMP8P-AMP8P
fromBoard-GOG.
(4) Installing is performed by the inverse procedure with removing.
Board-GOG
②
①
