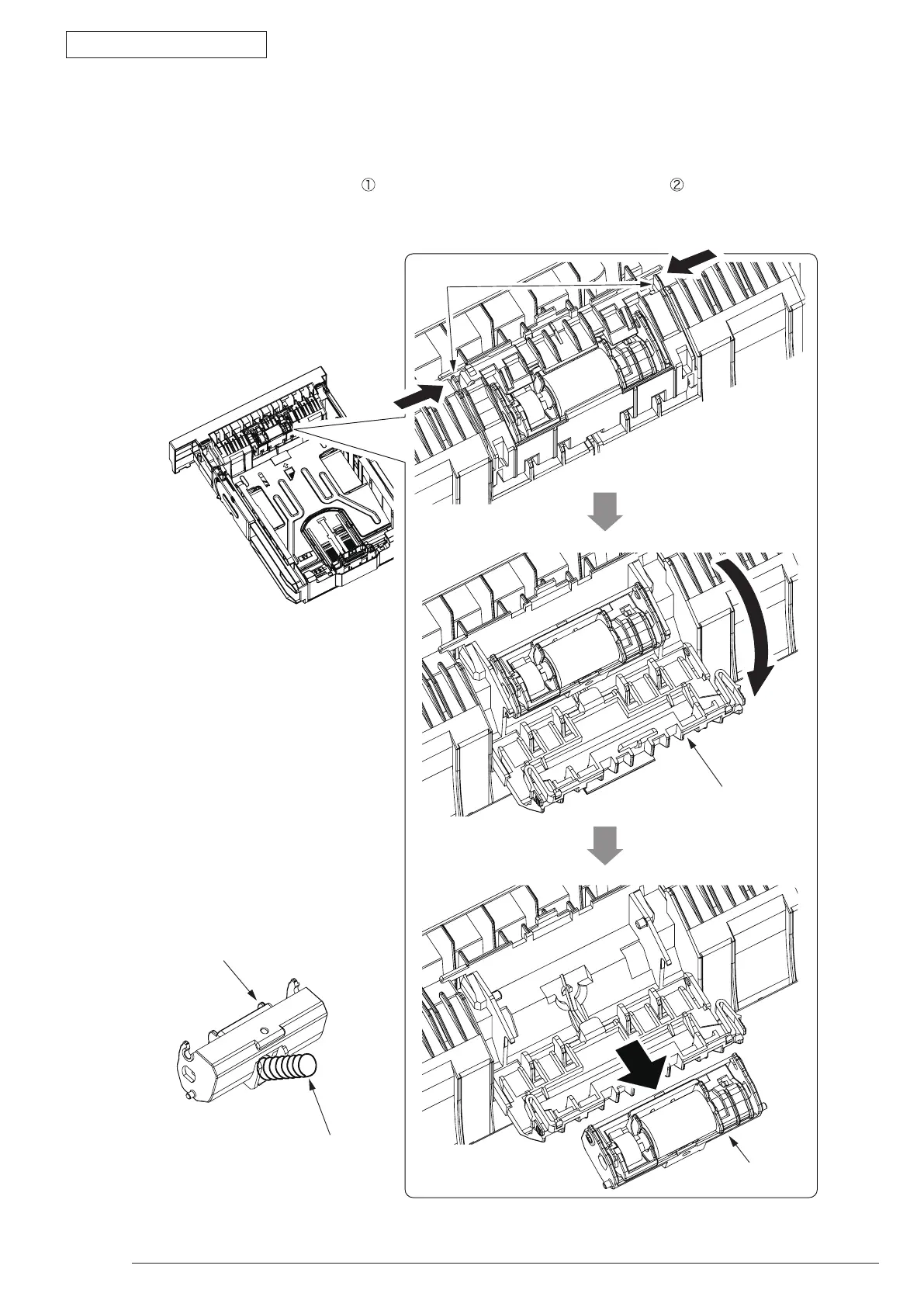

3.3.6 Frame-Assy-Retard,Spring-Retard
(1) Detach Cassette-Assy.
(2) Push two tabs in the direction of the arrow to remove Retard-Cover.
(3) Push Frame-Assy Retard
inthedirectionofthearrow.(Spring-Retard is also removed together.)
(4) Installing is performed by the inverse procedure with removing.
Tab
Retard-Cover
①
①
②
