Oki B431L6

4. ADJUSTMENT
Oki Data CONFIDENTIAL
44983601TH Rev.1
4-10 /
DOTSHIFT TRAY1 -2.0MILLIMETER
0.0MILLIMETER*~
-1.5MILLIMETER
-1.0MILLIMETER
-0.5MILLIMETER
0.0MILLIMETER
+0.5MILLIMETER
~
+2.0MILLIMETER
TRAY2 -2.0MILLIMETER
-1.0MILLIMETER*~
-1.5MILLIMETER
-1.0MILLIMETER
-0.5MILLIMETER
0.0MILLIMETER
+0.5MILLIMETER
~
+2.0MILLIMETER
MANUAL -2.0MILLIMETER
-1.0MILLIMETER*~
-1.5MILLIMETER
-1.0MILLIMETER
-0.5MILLIMETER
0.0MILLIMETER
+0.5MILLIMETER
~
+2.0MILLIMETER
MPT -2.0MILLIMETER
-1.0MILLIMETER*~
-1.5MILLIMETER
-1.0MILLIMETER
-0.5MILLIMETER
0.0MILLIMETER
+0.5MILLIMETER
~
+2.0MILLIMETER
ENGINEDIAG MODE
INITIALIZING
ONLINE
Press Key
“SETTING”
Press Key “MENU” “MENU” and move
Select by Key
“SETTING” and
press key
“MENU” “MENU”
Select by Key
“SETTING” and
press key
“MENU” “MENU”
Select by Key
“SETTING” and
press key
“MENU” “MENU”
Select by Key
“SETTING” and
press key
“MENU” “MENU”

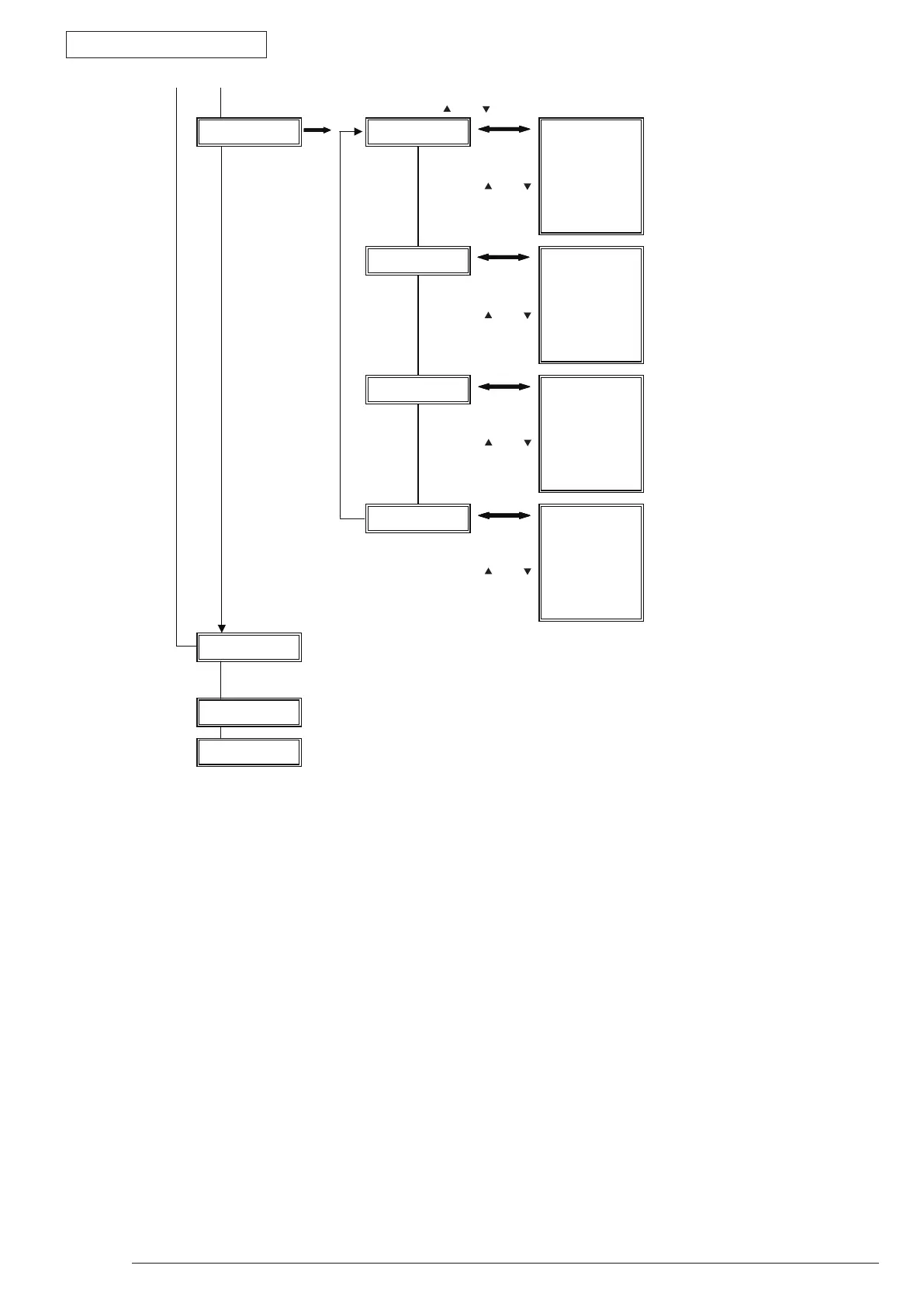

Set landscape dot shift.
Only B401/B411 is displayed.
Only B431 is displayed.
Aftersettingeachitem,press“ONLINE” key.
EntertheENGINEMAINTENANCEMENU.
