B710 B720 B730 User’s Guide > 90

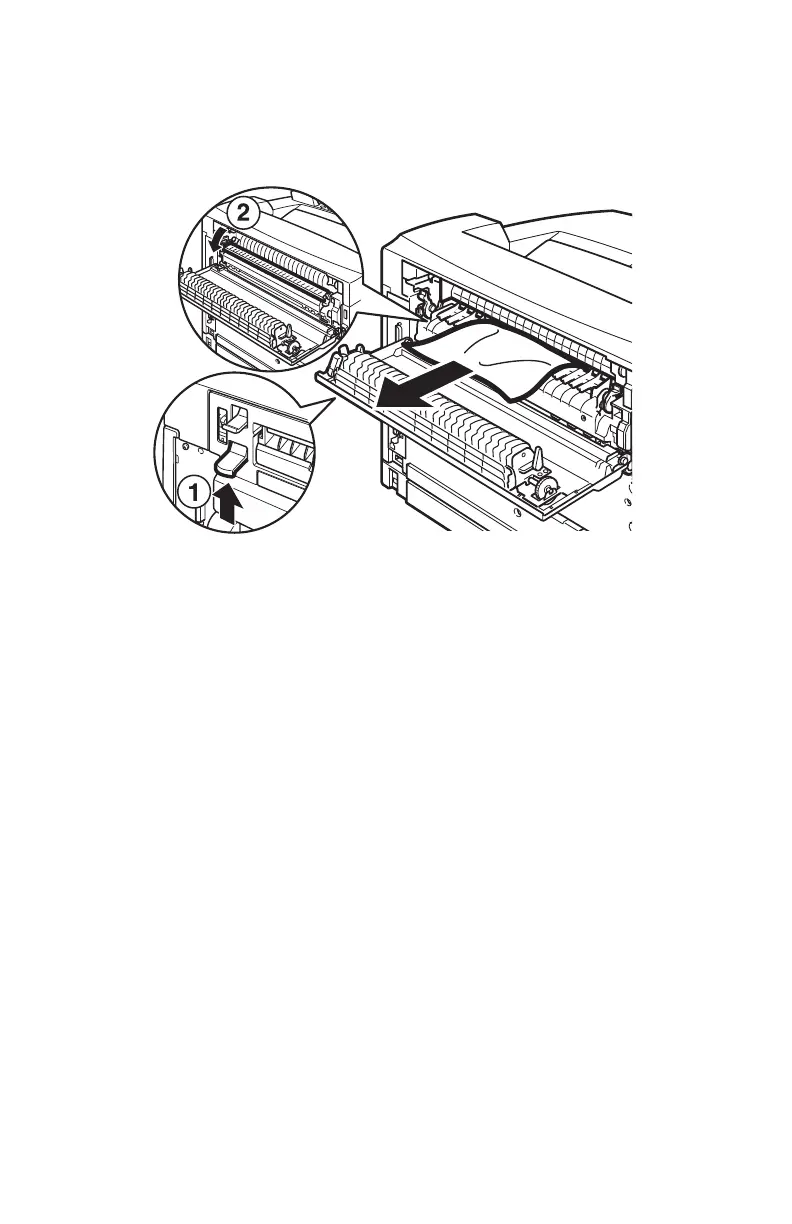

2. Raise the lever as shown in the diagram and open the cover
B (1). Then open the cover of the fuser unit (2),indicated
by a small green label with a black star, and remove any
jammed paper.
3. Close the fuser unit and Cover B.
4. Replace the rear tray.
