Oki C301 Maintenance Manual

44951501TH Rev.2
8-3
Oki Data CONFIDENTIAL

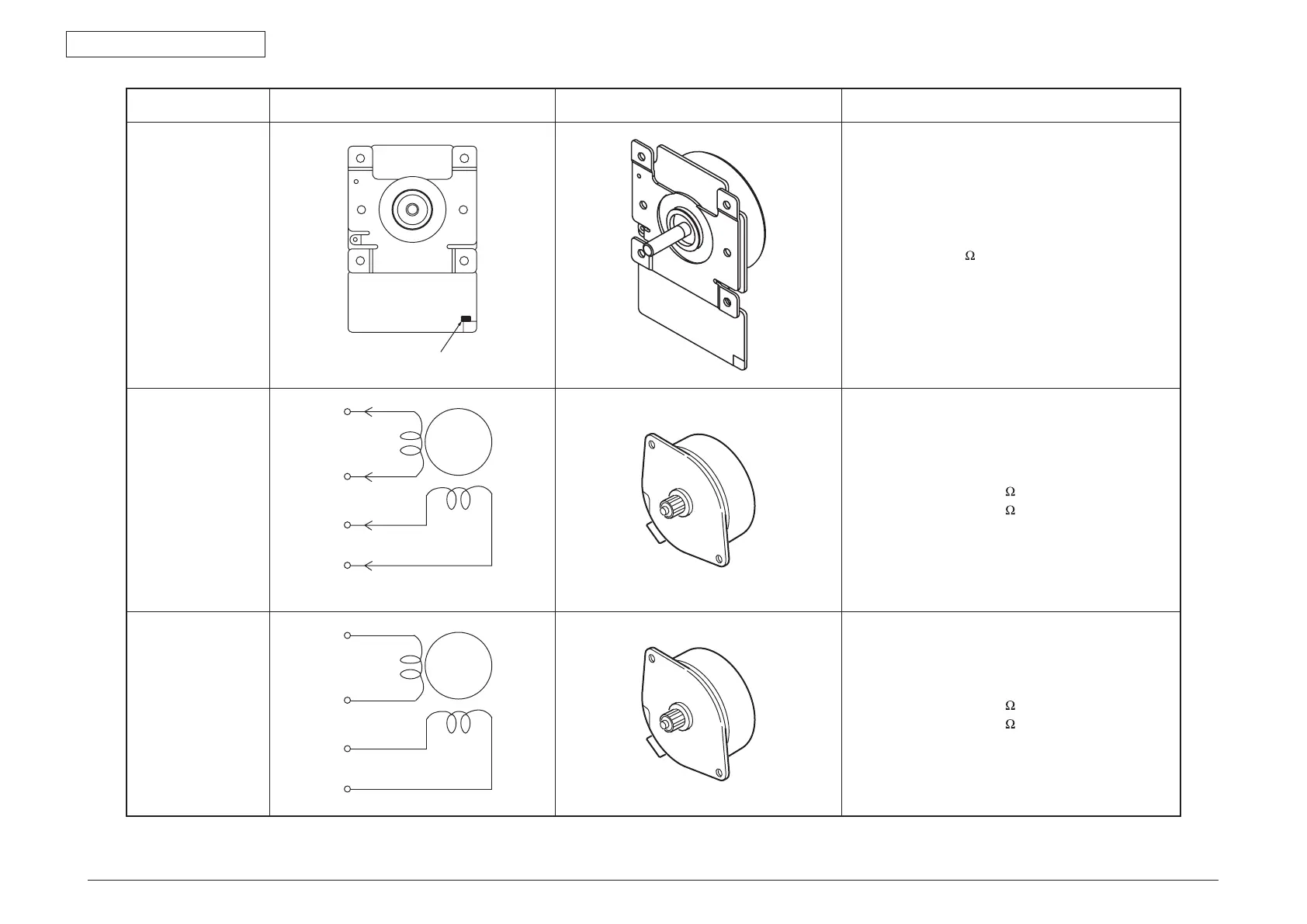

8. CONNECTION DIAGRAMS
Unit Circuit diagram and composition Part drawing Resistance value
Fuser motor
IP1
Both ends of IP1: 1 or less
Feed motor
M
1
2
3
4
Between pins 1 and 2: 3.4
Between pins 3 and 4: 3.4
2nd feed motor
M
1
2
3
4
Between pins 1 and 2: 3.4
Between pins 3 and 4: 3.4

Oki C301 Specifications

General

Print Speed (Color)	20 ppm
Monthly Duty Cycle	30, 000 pages
Memory	128 MB
Paper Capacity	250 sheets
Duplex Printing	Manual
Print Technology	LED
Connectivity	USB 2.0, Ethernet
Printer Type	Color
Media Size	A4, A5, A6, B5, Legal, Letter, Executive, Envelopes
Operating System Compatibility	Windows, Mac
