2. DESCRIPTION OF OPERATION
(7) Cover-opening motions of the color registration sensor and the density sensor
1. As illustrated in Figure 2-9, when the solenoid is energized, the link lever
moves, causing the cover of the color registration sensor and the density
sensor to open.
2. As the solenoid is de-energized, the spring pushes the cover, causing the
cover of the color registration sensor and the density sensor to close.

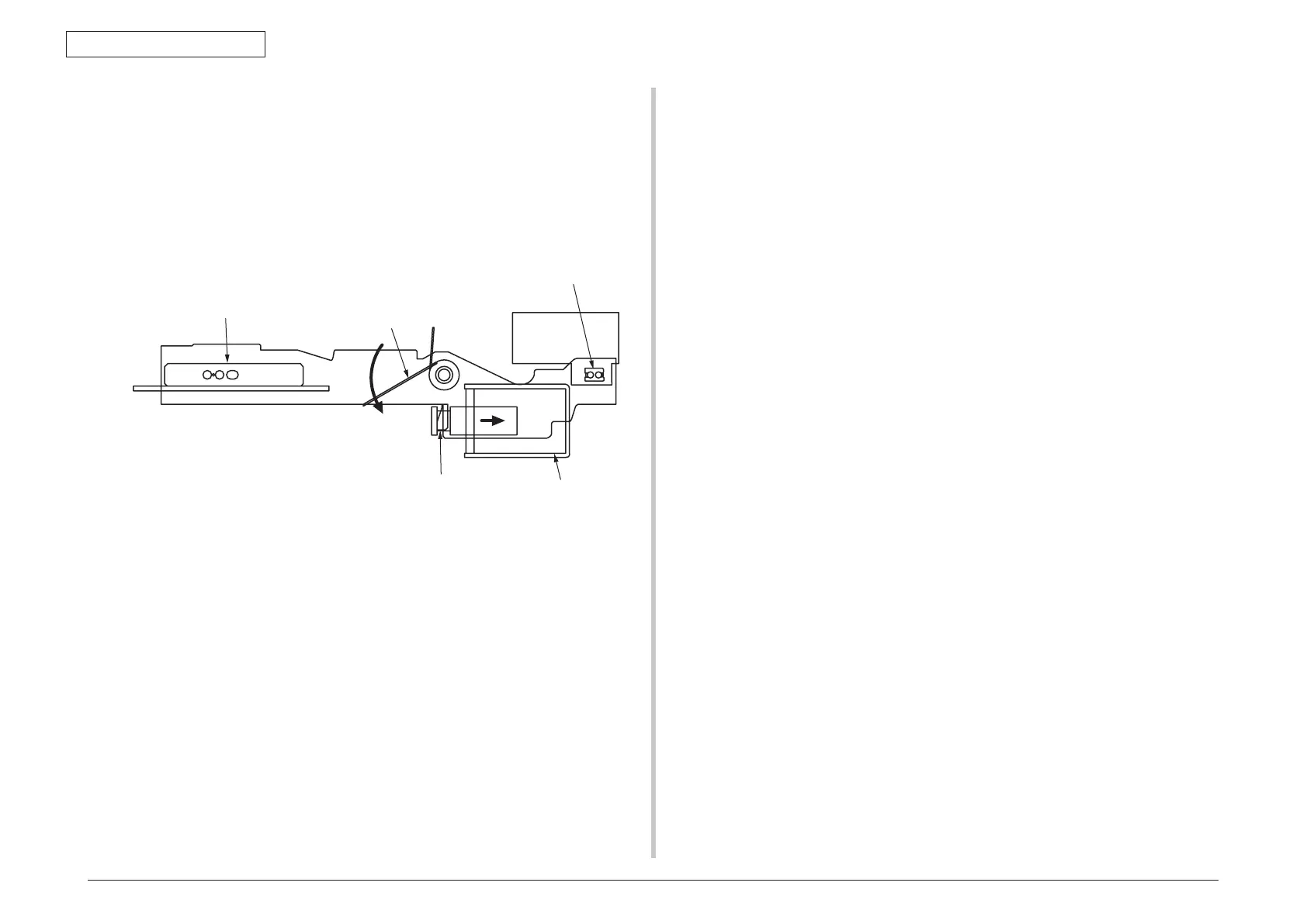

Figure 2-9
Density sensor
Spring
Color registration sensor
Link lever
Solenoid

Oki C301 Specifications

General

Print Speed (Color)	20 ppm
Monthly Duty Cycle	30, 000 pages
Memory	128 MB
Paper Capacity	250 sheets
Duplex Printing	Manual
Print Technology	LED
Connectivity	USB 2.0, Ethernet
Printer Type	Color
Media Size	A4, A5, A6, B5, Legal, Letter, Executive, Envelopes
Operating System Compatibility	Windows, Mac
