5. MAINTENANCE MENUS
5.3.2.3 Switch scan test
The switch scan test is used for input sensor and switch checking.
1. Enter the self-diagnostic mode (level 1) and, until SWITCH SCAN appears on
the upper display, press
or ( displays the next test option and displays
the preceding test option). Then press the OK button.
SWITCH SCAN
2. Press
or until the option for unit(s) to test, which is shown in table 5-3,
appears on the lower display (
displays the next option and displays the
preceding option).
3. Press the OK button. The switch scan test starts, the unit(s)’ name(s) and
current status(es) being displayed.
PAPER ROTE:PU
1=H 2=L 3=H 4=L
Operate the unit(s) (figure 5-1). Display information in the appropriate area(s) of
the LCD display [the information varies depending on the sensor(s)].
4. Press the CANCEL button to restore the state for step 2.
5. Repeat steps 2 through 4 when necessary.
6. Press
to end the test (the state for step 1 is restored).
YMCK
Fuser thermistor-
upper
Toner sensor Y
Toner sensor M
Toner sensor C
Toner sensor K
Tag IC K
Tag IC C
Tag IC M
Tag IC Y
Heater frame thermistor
Image drum up-down sensor
Cover-open switch
Temperature
and humidity
sensor
Write sensor
Entrance
sensor
Tray-1
hopping
sensor
Tray-1 detection sensor
Tray-1
paper-end
sensor
Tray-2
entrance
sensor
2nd tray hopping sensor
Tray-2 paper-end sensor
Duplex front sensor
Color registration sensor and density sensor
Exit sensor
Fuser thermistor-lower
Duplex rear
sensor

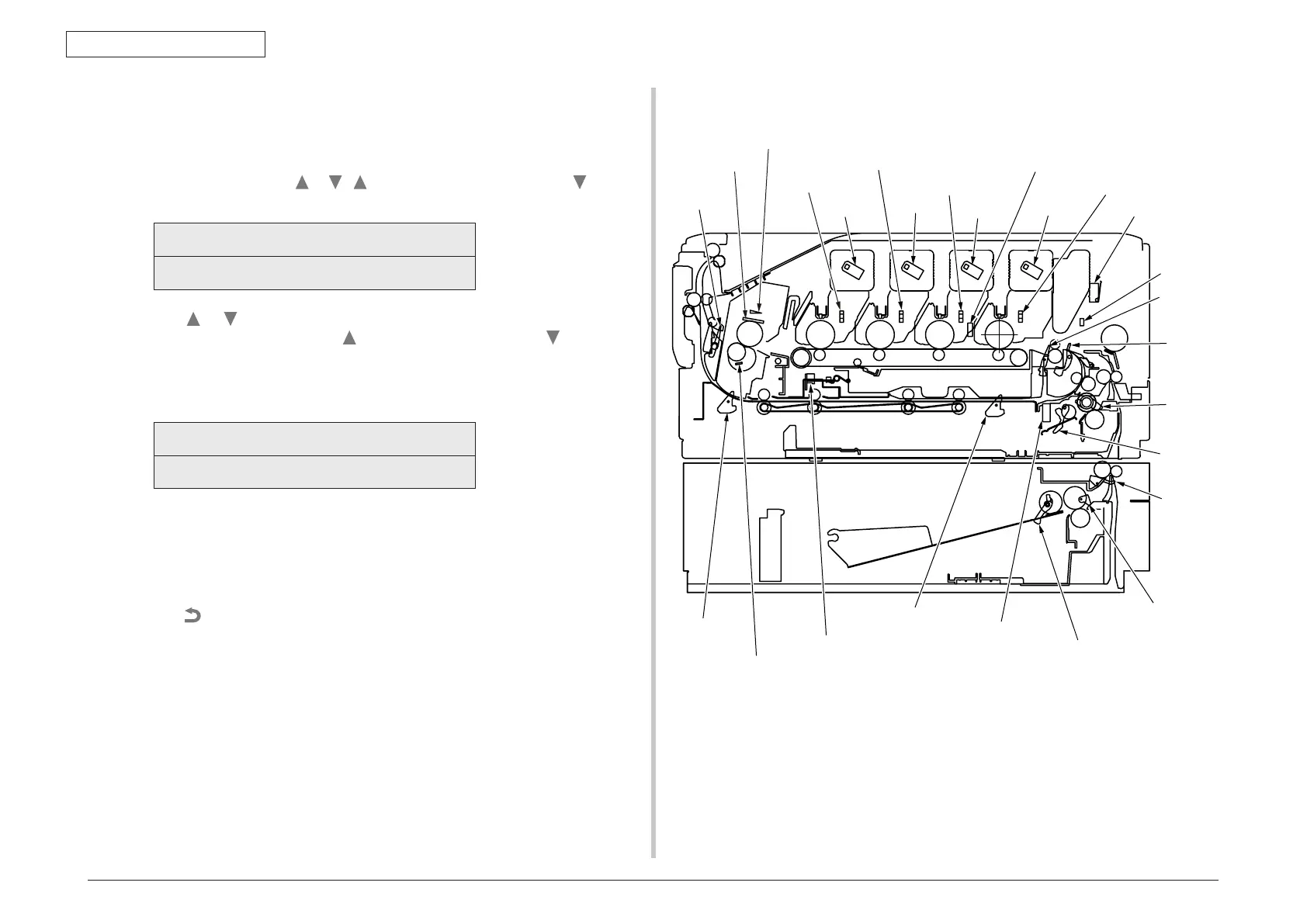

Figure 5-1: Switch sensor locations
