8 – C710n User’s Guide
Printer Overview ________________

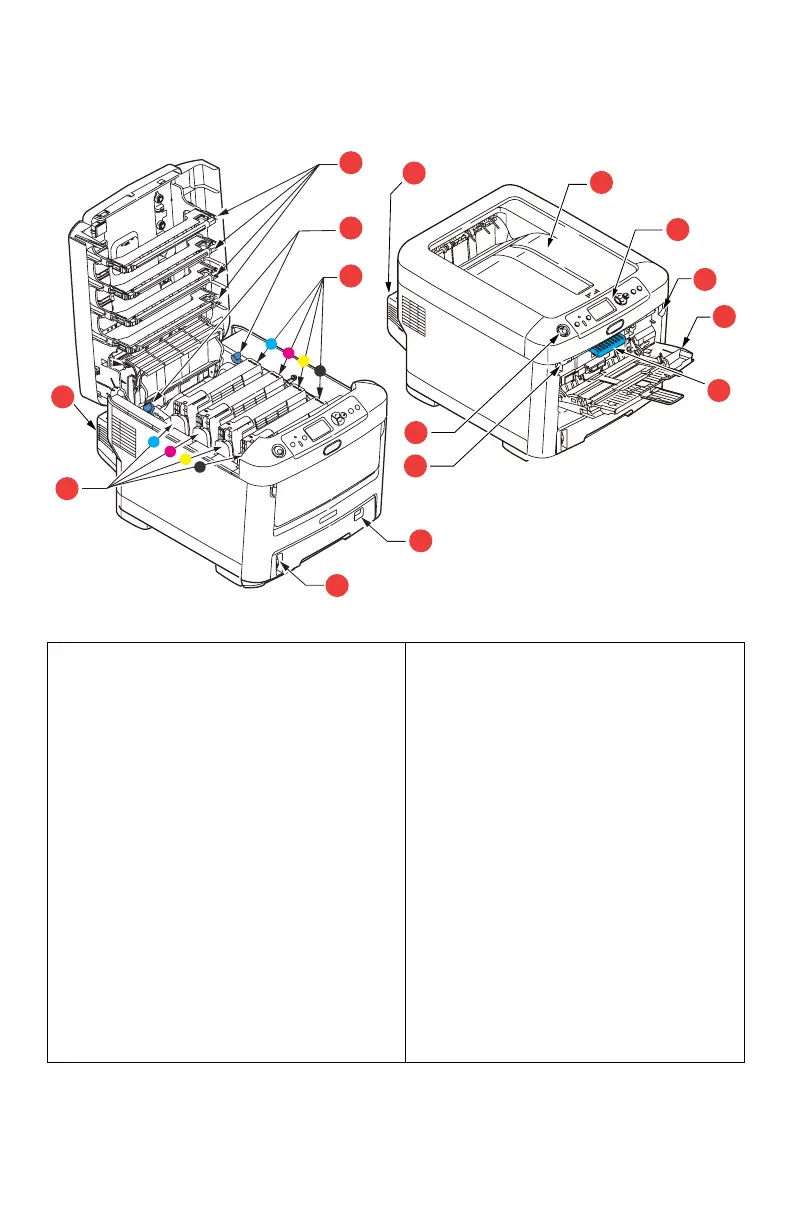

Front View
*The LCD display language can be changed to show different
languages. (see “Changing the display language” on page 10).
1. Output stacker, face down.
Standard printed copy delivery
point. Holds up to 350 sheets at
80g/m².
2. Operator panel.
Menu driven operator controls and
LCD display* panel.
3. Paper tray.
Standard paper tray. Holds up to
530 sheets of 80g/m² paper.
4. Multi purpose tray.
Used for feeding heavier paper
stocks, envelopes and other
special media. Also for manual
feeding of single sheets when
required.
5. Paper level indicator.
6. Front cover release lever.
7. Multi-purpose tray release
recess.
8. Top cover release button.
9. LED heads.
10. Fuser release levers.
11. Toner cartridges (C,M,Y,K).
12. ID units (C,M,Y,K).
13. Duplex unit (when fitted).
1
2
3
4
5
9
10
11
6
12
13
7
7
13
8
