Maintenance > 71

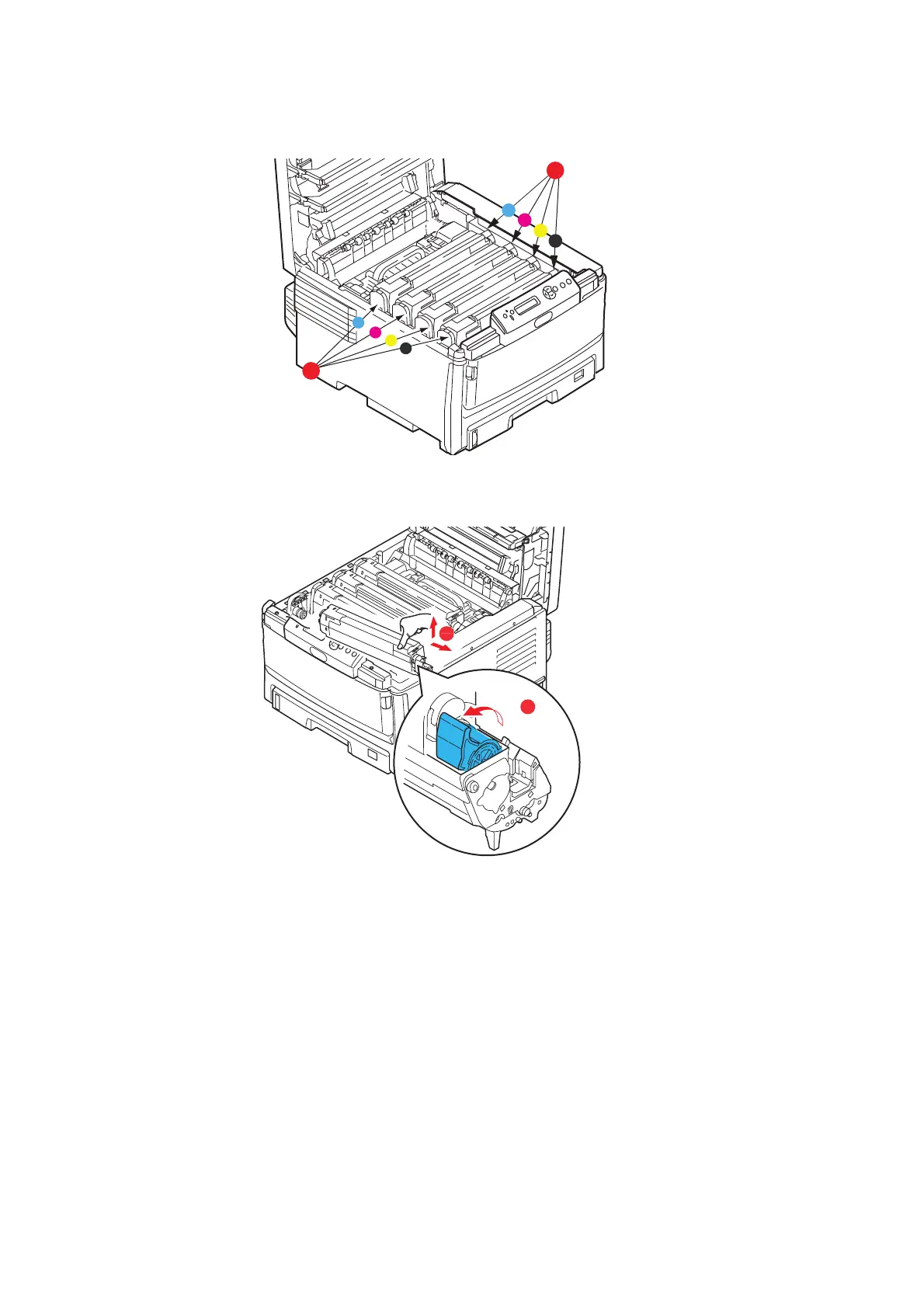

2. Note the positions of the four toner cartridges (a) and image drums (b). It is
essential that they go back in the same order.
3. Pull the coloured toner release lever (a) on the cartridge to be replaced fully towards
the front of the printer.
4. Lift the right-hand end of the cartridge and then draw the cartridge to the right to
release the left-hand end as shown, and withdraw the toner cartridge (b).
5. Put the assembly down gently onto a piece of paper to prevent toner from marking
your furniture.
6. Remove the new cartridge from its box but leave its wrapping material in place for
the moment.
a
b
b
a
