Maintenance > 78
F
USER
REPLACEMENT

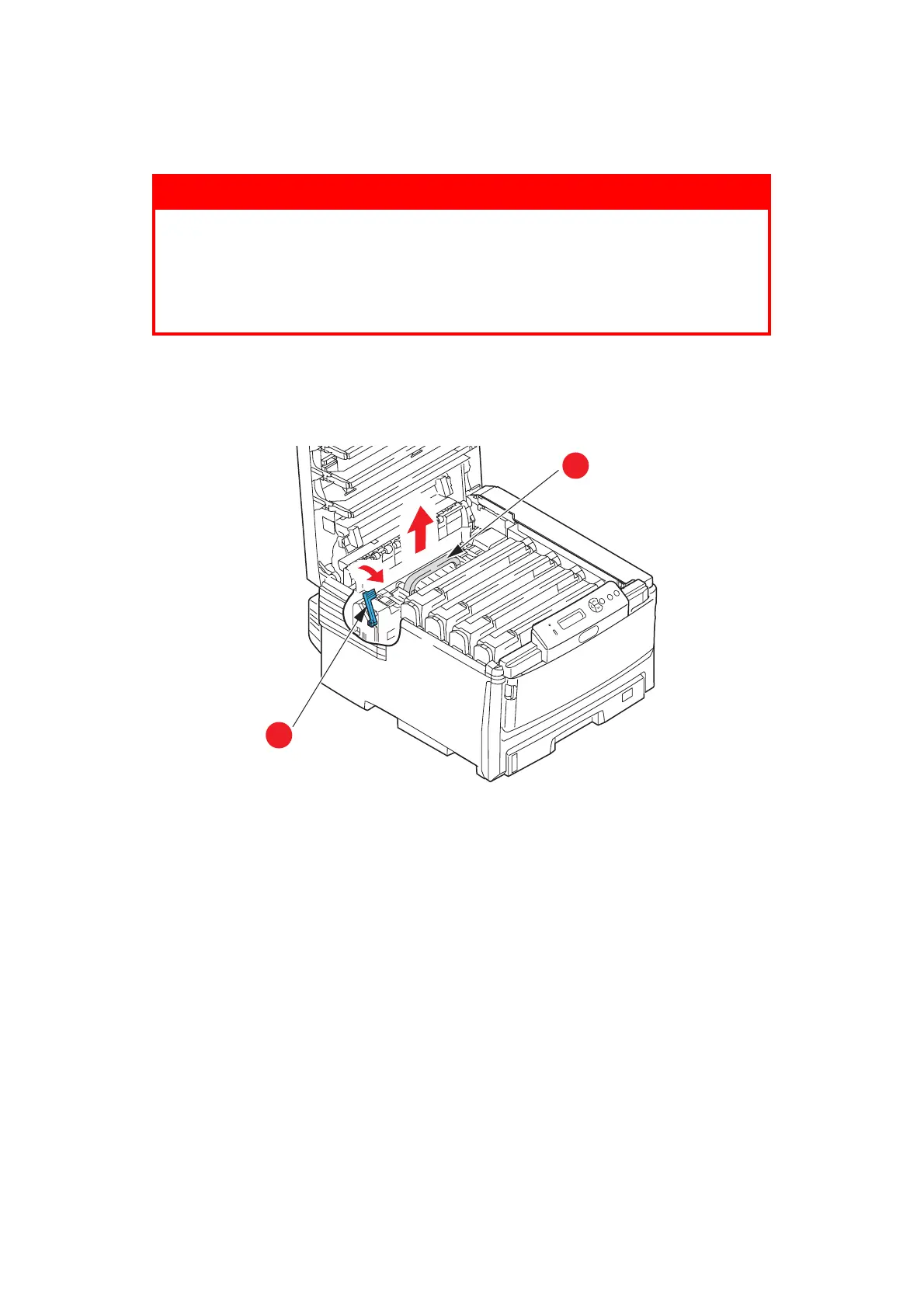

The fuser is located inside the printer just behind the four image drum units.
1. Switch off the printer.
2. Press the cover release and open the printer’s top cover fully.
3. Identify the fuser handle (a) on the top of the fuser unit.
4. Pull the fuser retaining lever (b) towards the front of the printer so that it is fully
upright.
5. Holding the fuser by its handle (a), lift the fuser straight up and out of the printer. If
the fuser is still warm, place it on a flat surface which will not be damaged by heat.
6. Remove the new fuser from its packaging and remove the transit material.
7. Holding the new fuser by its handle, make sure that it is the correct way round. The
retaining lever (b) should be fully upright.
8. Lower the fuser into the printer.
WARNING!
If the printer has recently been powered on, some fuser
components will be very hot. Handle the fuser with extreme care,
holding it only by its handle, which will only be mildly warm to the
touch. A warning label clearly indicates the area. If in doubt, switch
the printer off and wait at least 10 minutes for the fuser to cool
before opening the printer cover.
a
b
