Maintenance > 76
T
RANSFER
BELT
REPLACEMENT
The belt unit is located under the four image drums.
Switch off the printer and allow the fuser to cool for about 10 minutes before opening the
cover.
1. Press the cover release and open the printer’s top cover fully.

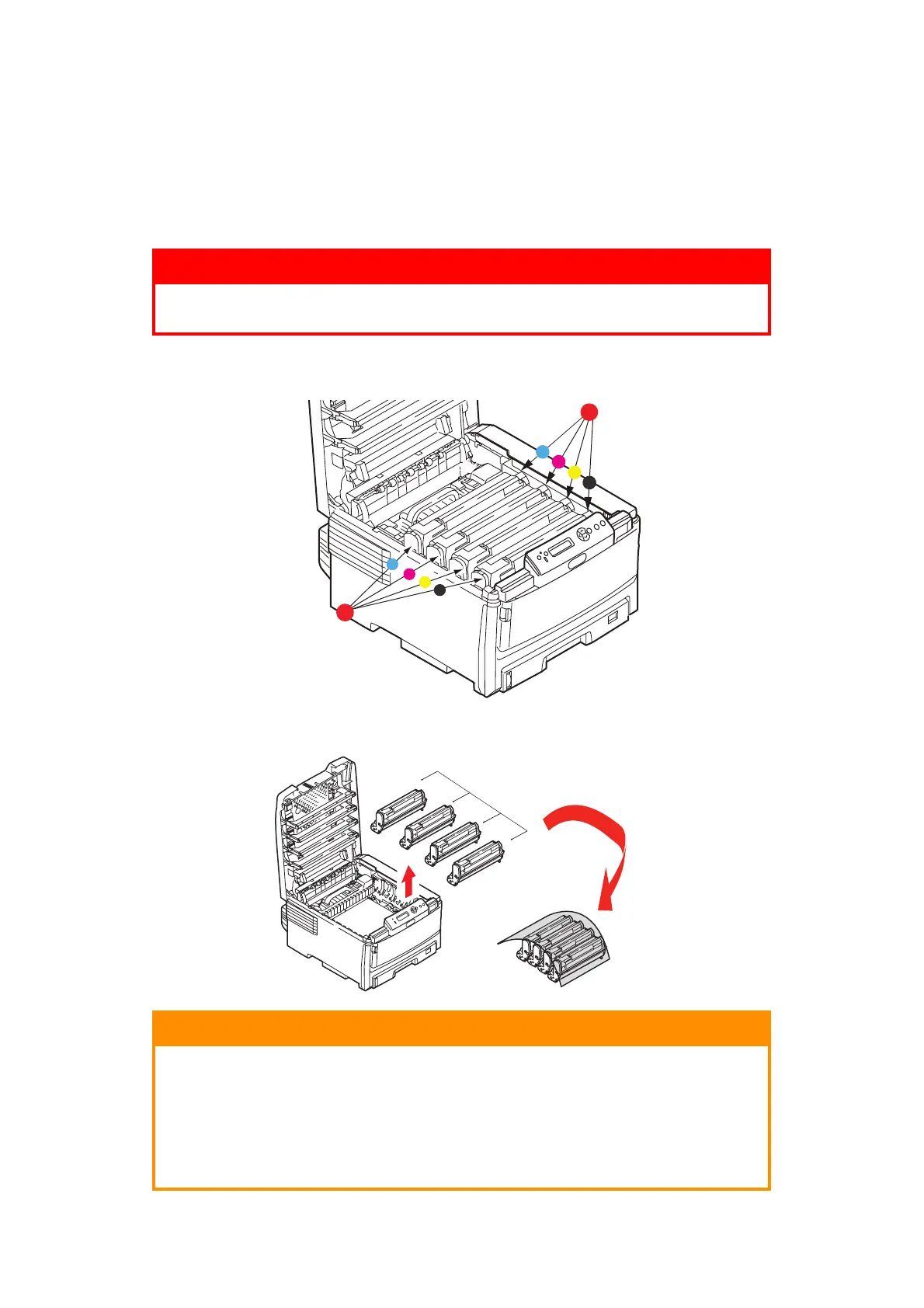

2. Note the positions of the four toner cartridges (a) and image drums (b).It is
essential that they go back in the same order.
3. Lift each of the image drum units out of the printer and place them in a safe place
away from direct sources of heat and light.
WARNING!
If the printer has been powered on, the fuser will be hot. This area
is clearly labelled. Do not touch.
CAUTION!
The green image drum surface at the base of each cartridge is very
delicate and light sensitive. Do not touch it and do not expose it to
normal room light for more than 5 minutes. If the drum unit needs
to be out of the printer for longer than this, please wrap the
cartridge inside a black plastic bag to keep it away from light.
Never expose the drum to direct sunlight or very bright room
lighting.
a
b
