Troubleshooting > 96

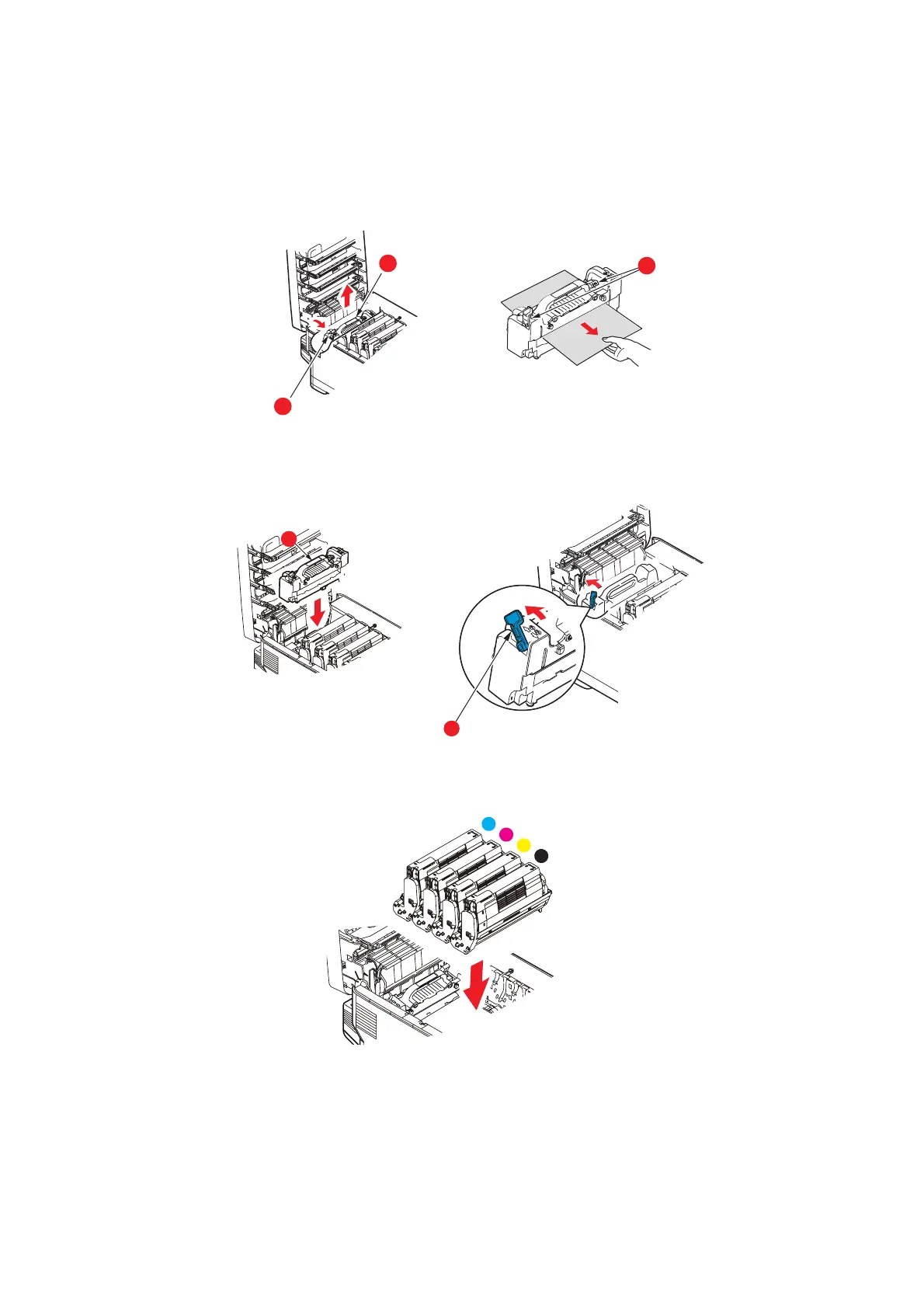

(d) To remove a sheet in the fuser; pull the retaining lever (a) towards the front of
the printer to release the fuser. Withdraw the fuser unit using the handle (b).
Lift the fuser pressure release levers (c) up and press toward the rear to release
the fuser’s grip on the sheet. Pull the trapped paper from the fuser.
(e) Replace fuser unit into the machine and move locking lever (a) toward the rear
of the machine.
8. Starting with the cyan image drum unit nearest the fuser, replace the four image
drums into the drum cavity, making sure to locate them in the correct order.
