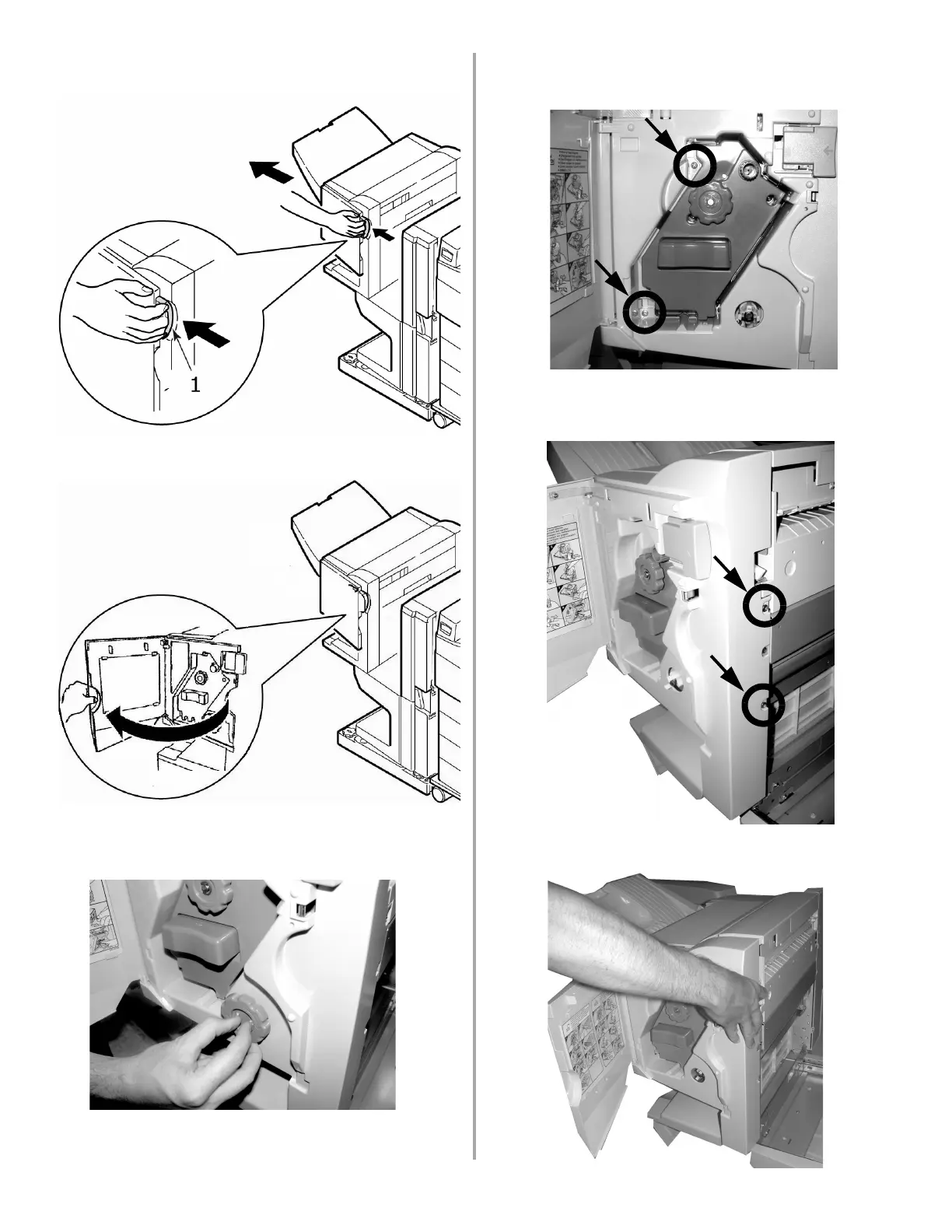

5. Push in on the finisher release lever and slide
the finisher away from the inverter.
6. Open the finisher front cover.
7. Squeeze the white locking tabs on the blue
knob and pull it out of the finisher.
8. Remove the internal cover:
a. Remove the two screws behind the cover.
b. Remove the two screws holding the side of
the cover in place.
c. Pull off the internal cover.
To Next Page
