C9600 User’s Guide> 38

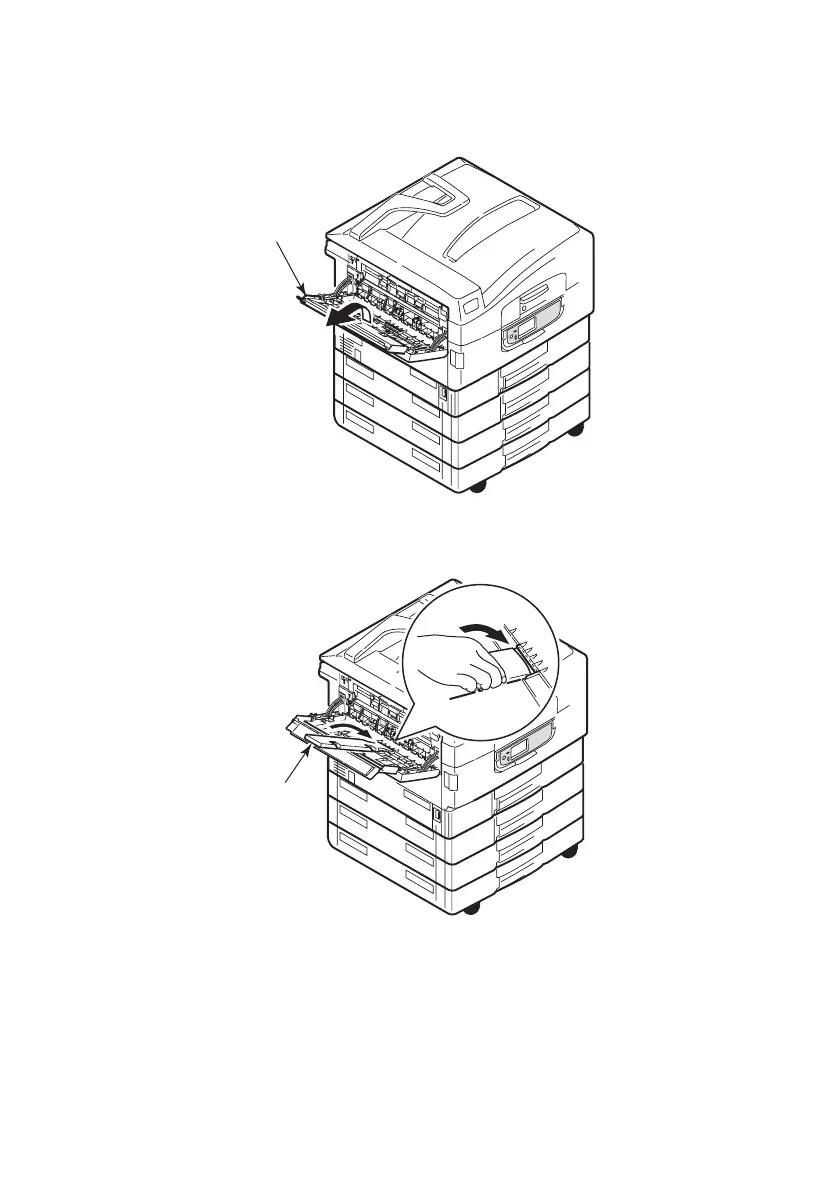

2. Flip out the paper support (2).

3. Swivel out the paper support extension (3).
