- 13 -
LD620D
3-2 Interface Cable Connection
3-2-1 Standard Model
Connect the interface cable as shown below.
This printer supports the following communications interface standards.
- RS-232C (Serial)
- IEEE1284 (Parallel)
- USB
1) Turn off the power switch.
2) Connect the communication cable to the printer communication port to be used.
- Connect the RS-232C(Serial) Cable to the SERIAL port.
and tighten the screw on both sides.
This port requires a shielded cable less then 1.8m long.
- Connect the IEEE1284(Parallel) Cable to the PARALLEL port.
and fasten the clips on both sides.
This port requires a shielded cable with ferrite core less then 1.8m long.
- Connect USB cable to the USB port.
This port requires a shielded cable less then 1.8m long.

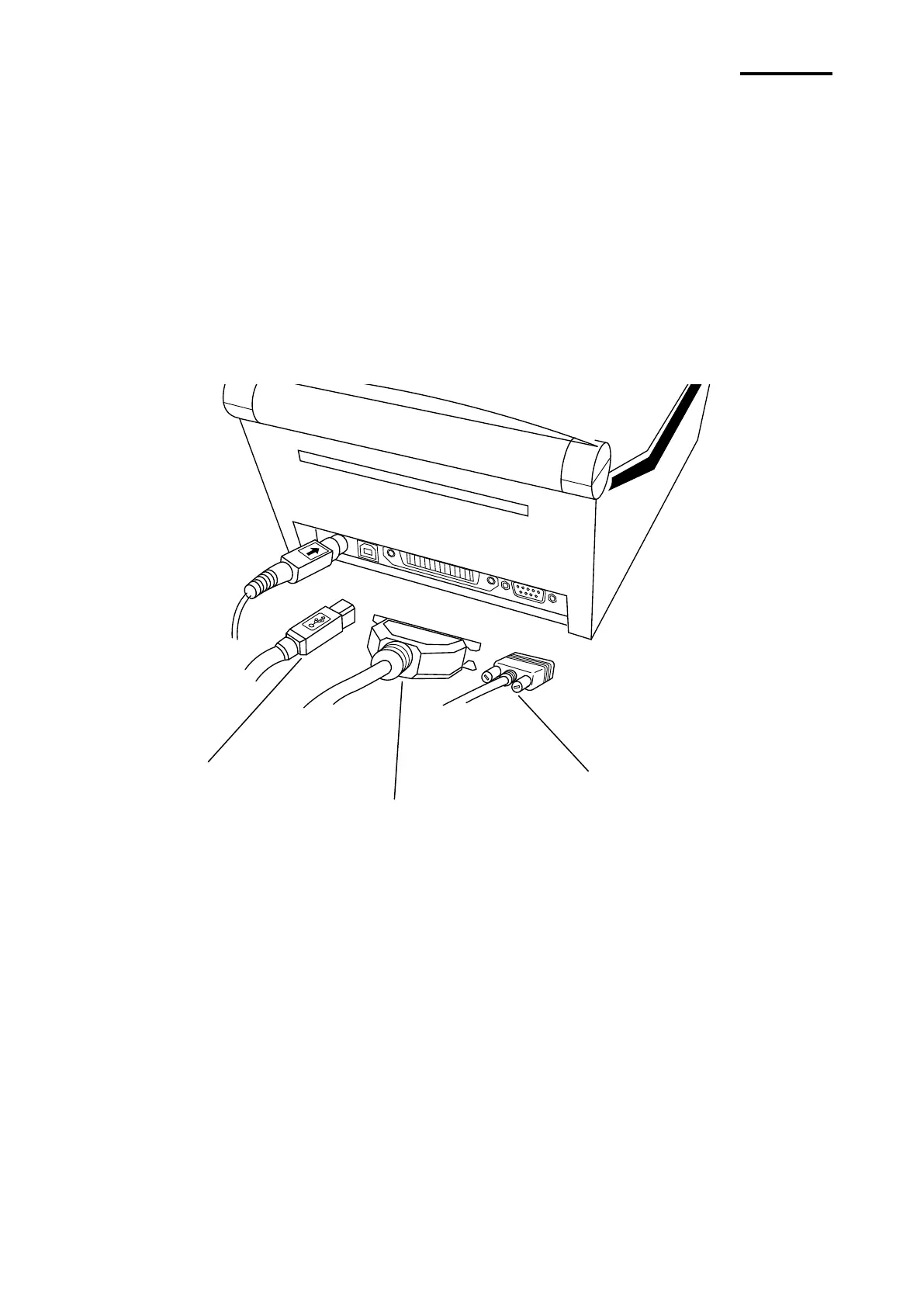

USB Cable
RS-232 (Serial) Cable
IEEE1284 (Parallel) Cable
