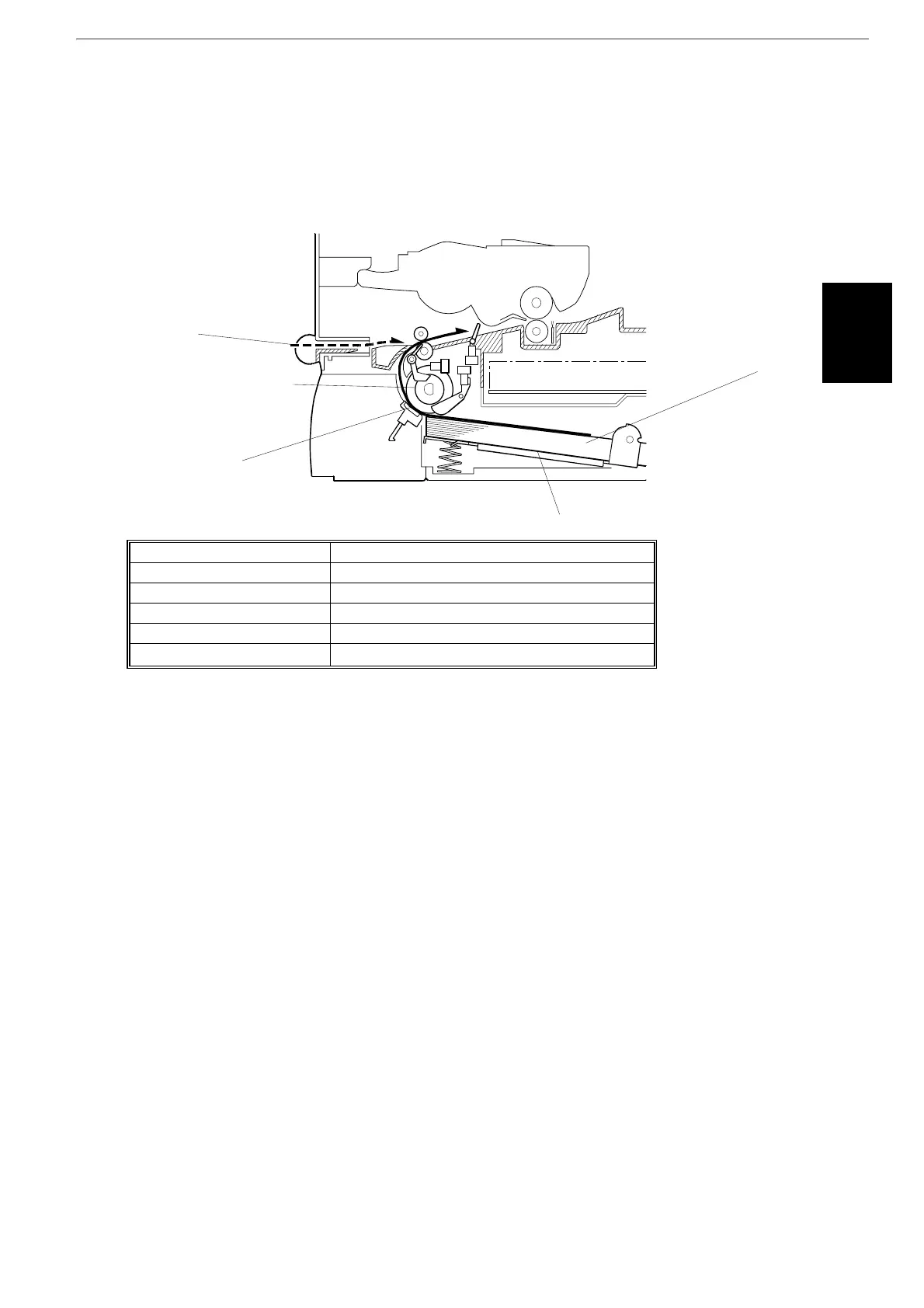

1.2.7 PAPER FEED AND REGISTRATION
Overview
Paper Feed System: Feed roller [A] and Friction pad [B]
Paper Lift Mechanism: Bottom plate with spring [C]
Sheet feeder 1 sheet feeder [D]
Tray Capacity: 250 sheets [E]
Paper End Detection: Paper end sensor
Paper Size Detection: None
G182D105.WMF
[A]
[B]
[C]
[D]
[E]
