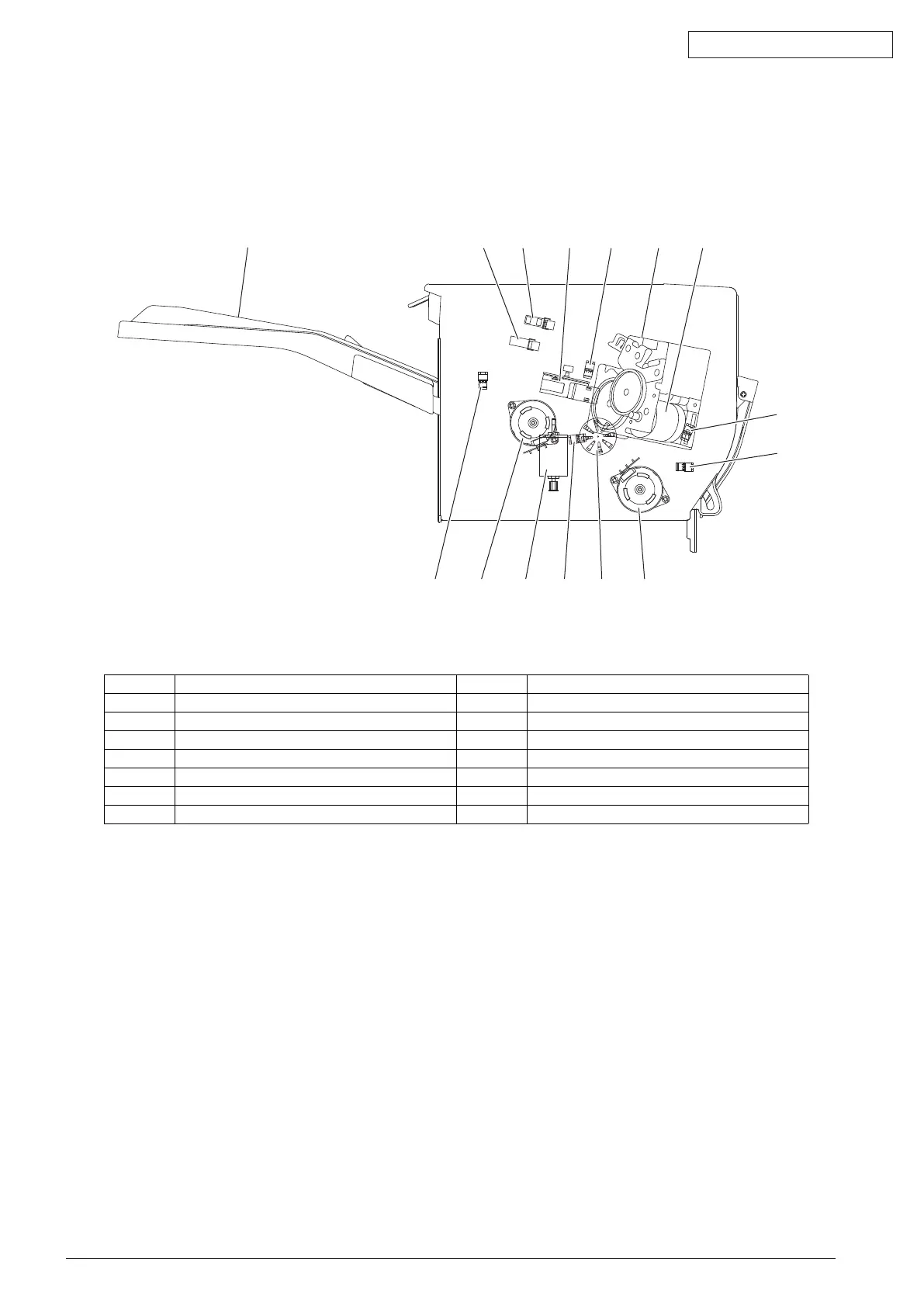

2.2 Sectional View
[A] Right side
Fig. 2-2
1 Stapler motor 9 Paper support home position sensor
2 Stapler 10 Stapler paper sensor
3 Stacker tray 11 Right alignment motor
4 Lever path motor 12 Stack home position sensor
5 Lever path home position sensor 13 Paper support motor
6 Paddle home position sensor 14 Ejector encoder sensor
7 Right alignment plate home position sensor 15 Ejector motor
8 Stacker motor
[3]
[4]
[6][7]
[5]
[8]
[11] [10]
[9]
[15][14][13][12]
[1][2]
