Oki MB770 - Page 54

45372301TH Rev.2
4-28 /
Oki Data CONFIDENTIAL

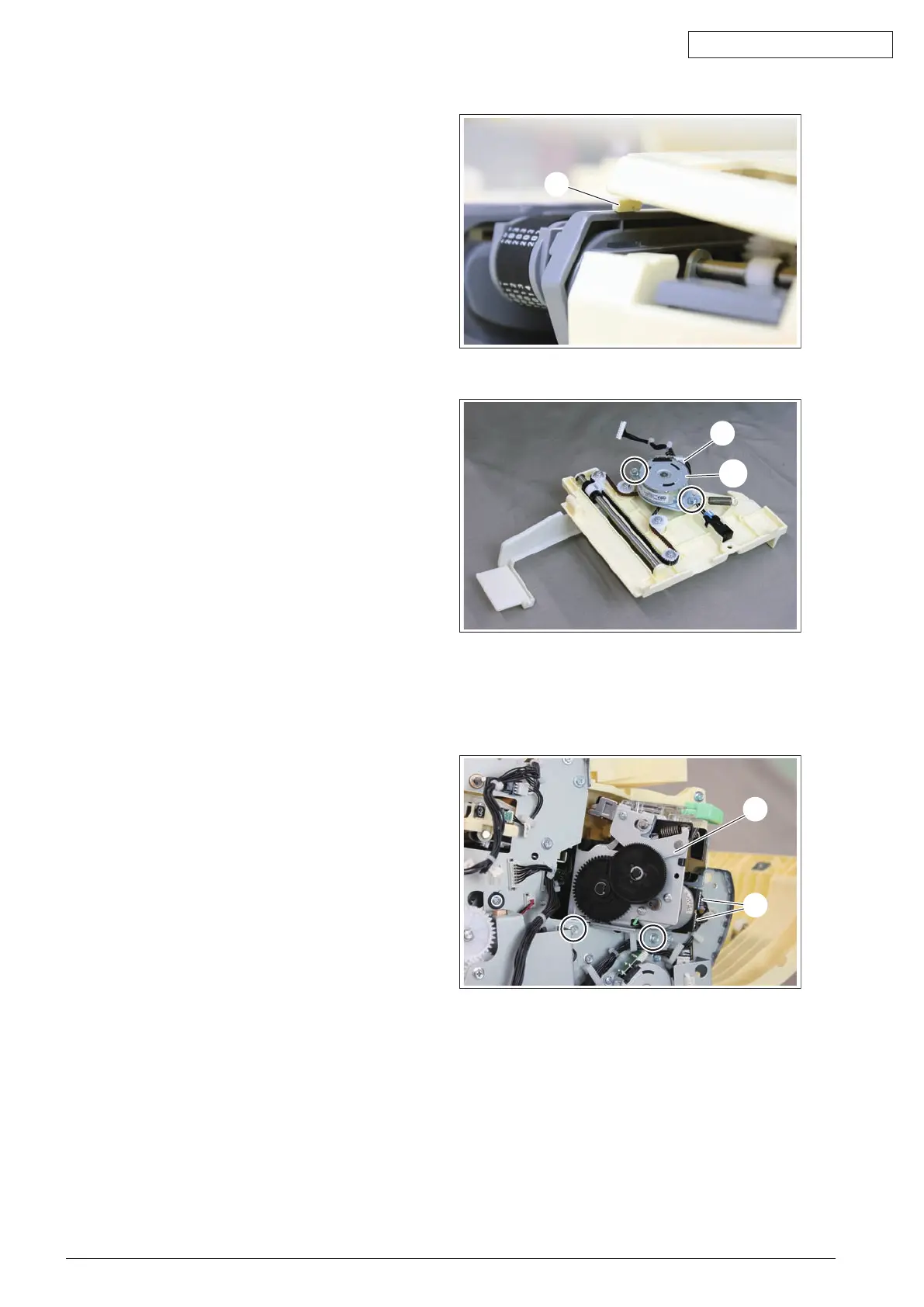

4.3.4 Alignment motor (L) (M5)
Note:
Be careful of the hooks [8] during installation.
Fig. 4-68
(6) Remove 2 screws and 1 connector [9],
remove the alignment motor (R) [10].
Fig. 4-69
(1) Take off the Guide upper ASSY.
( P.4-3 "4.2.1 Guide upper ASSY")
(2) Remove 2 screws and 2 connectors [1],
remove the Stapler [2].
Fig. 4-70
[8]
[9]
[10]
[2]
[1]
