4.3.5 Paddle motor (M3)
Note:

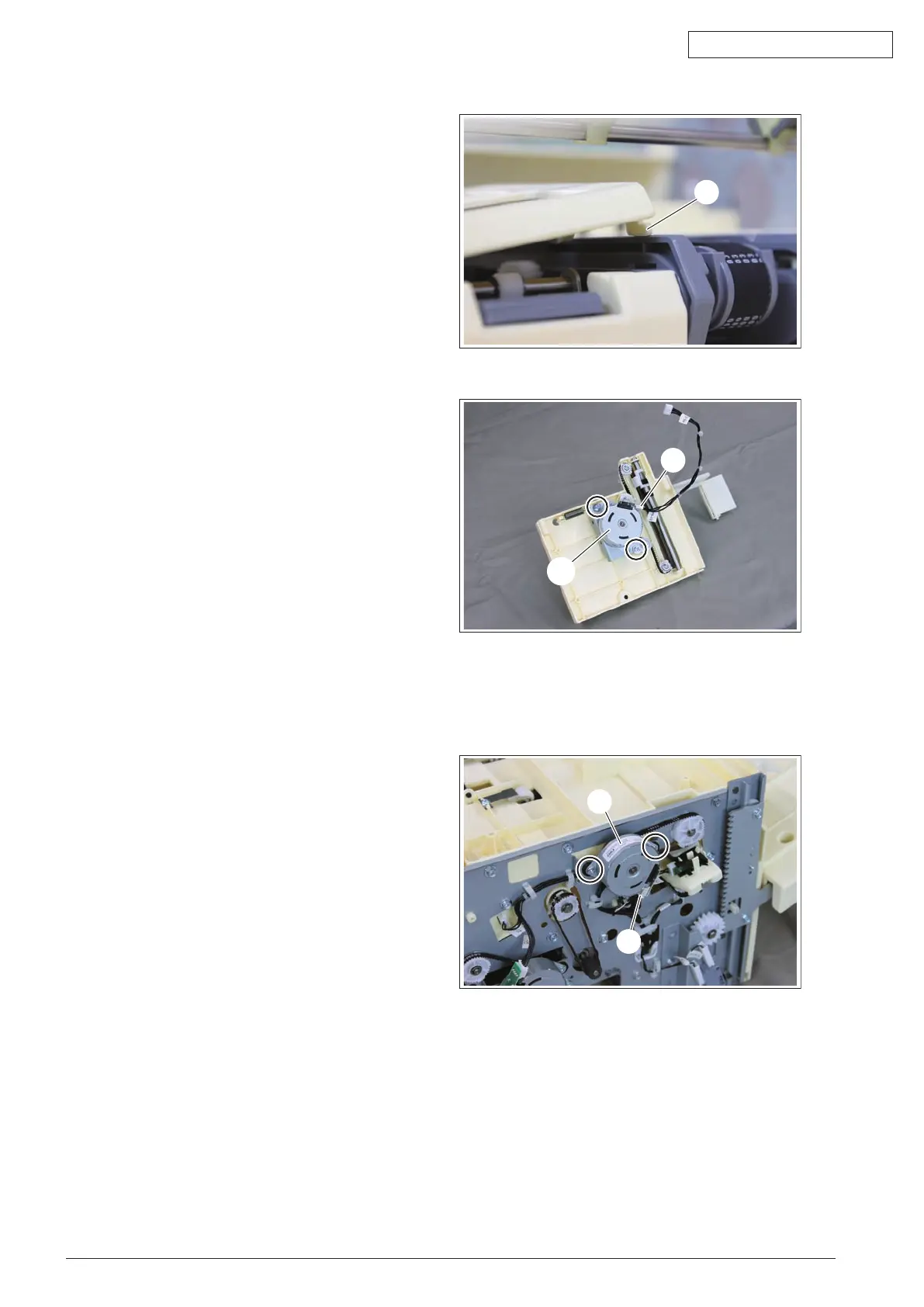

Be careful of the hooks [8] during installation.
Fig. 4-74
(6) Remove 2 screws and 1 connector [9],
remove the alignment motor (L) [10].
Fig. 4-75
(1) Take off the upper cover.
( P.4-1 "4.1.1 Upper cover")
(2) Take off the left cover.
( P.4-2 "4.1.3 Left cover")
(3) Remove 2 screws and 1 connector [1],
remove the Paddle motor [2].
Fig. 4-76
[8]
[9]
[10]
[2]
[1]
