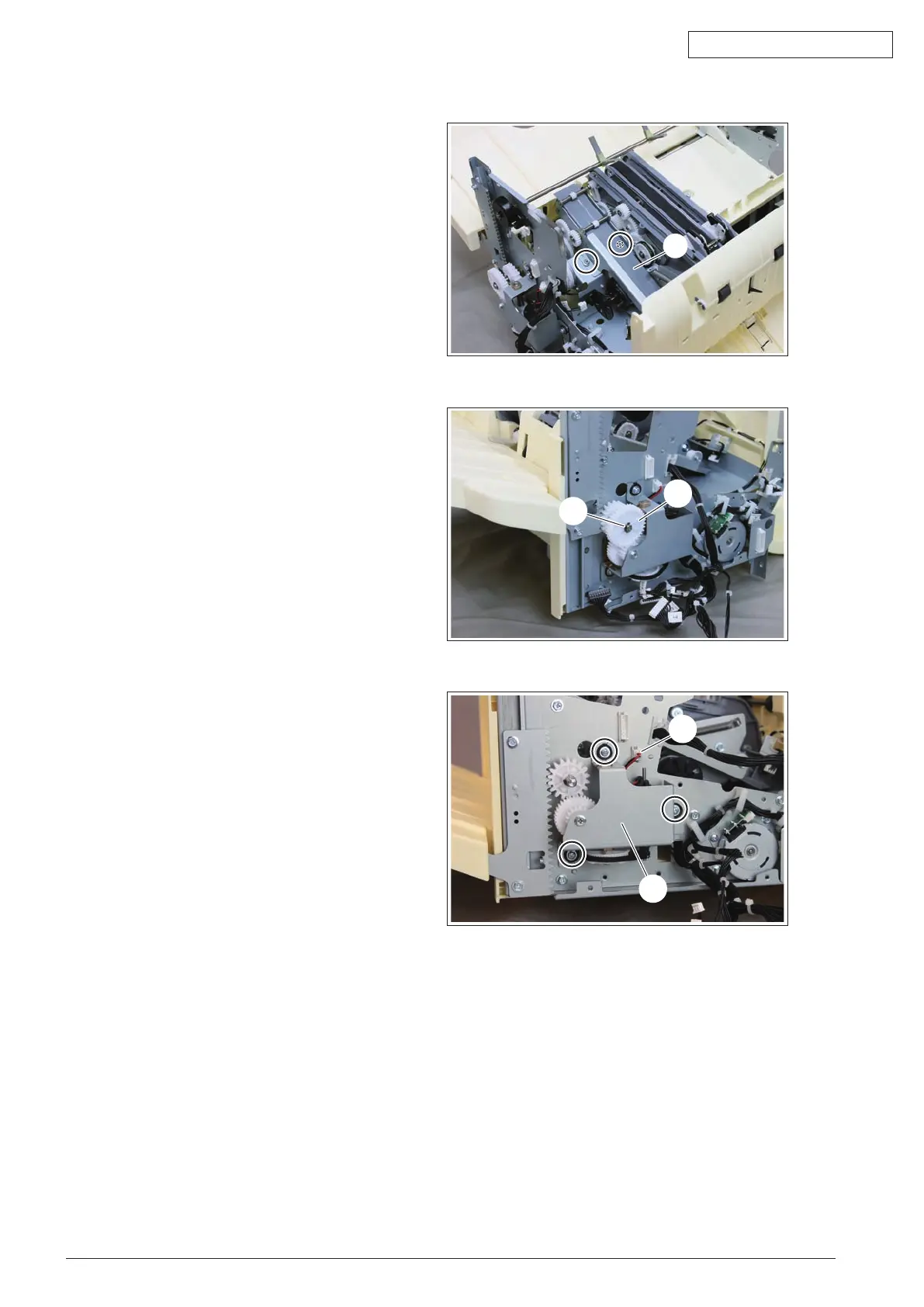

(5) Remove 2 screws and take off the Paper
support F ASSY [9].
Fig. 4-83
(6) Remove 1 e-ring [10], and remove gear [11].
Fig. 4-84
(7) Remove 3 screws and 1 connector [12],
remove the Stacker motor ASSY [13].
Fig. 4-85
[9]
[11]
[10]
[12]
[13]
